10 mm GSPA Series Direct View LED Half-width, Half-height with 10,000 nits brightness

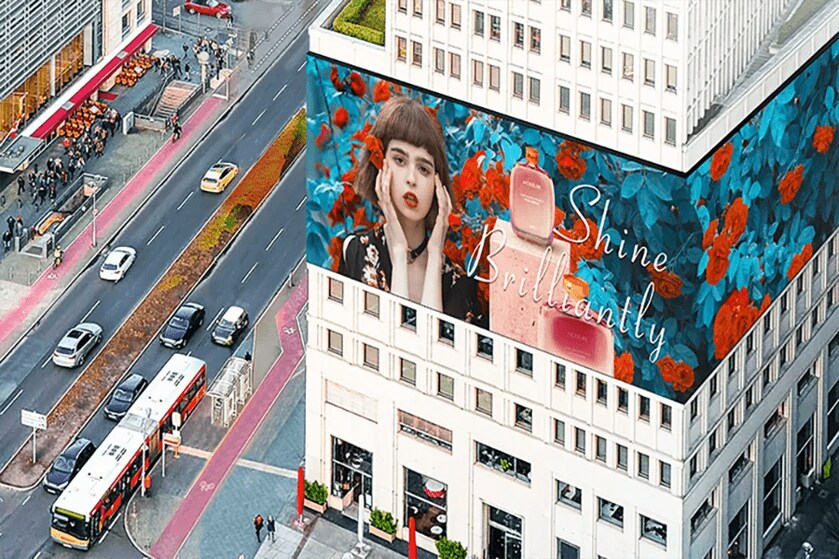

Ideal for long-distance visibility, our GSPA models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals.

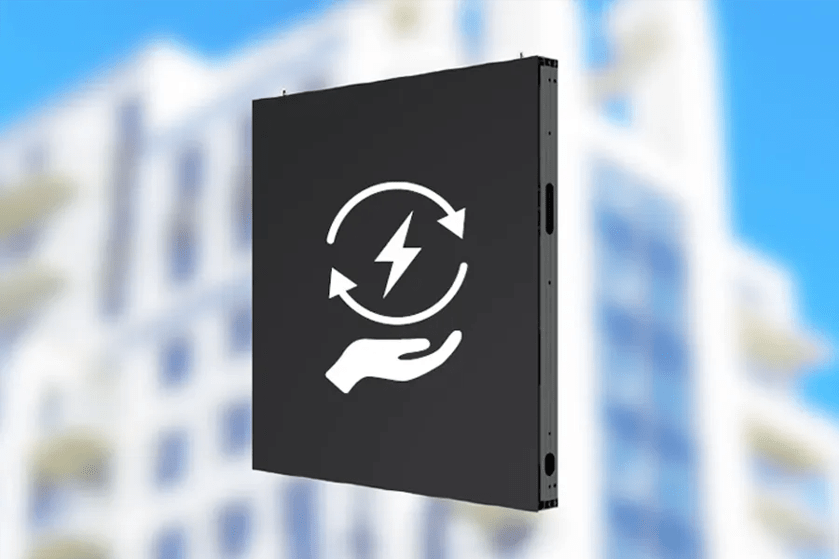

Compared to LG’s traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs can potentially be reduced.

*Power consumption improvement is compared to the LG GSEG100-GS model.

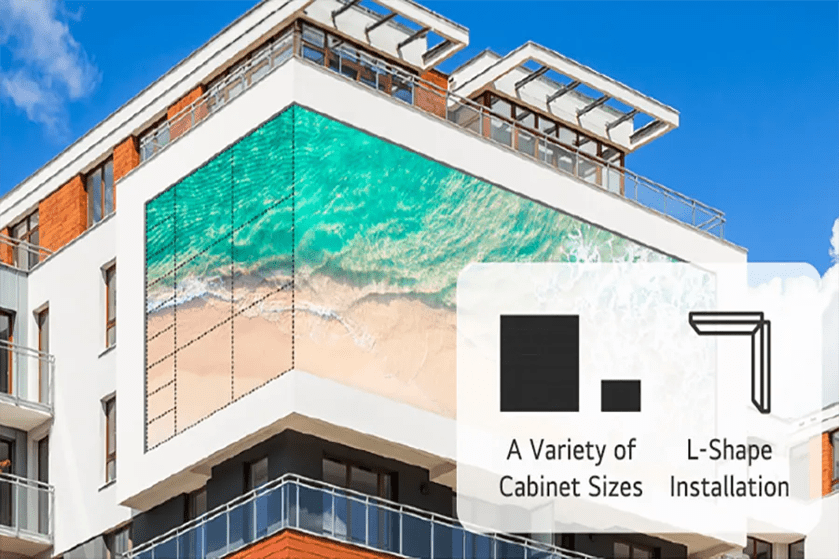

The GSPA series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.

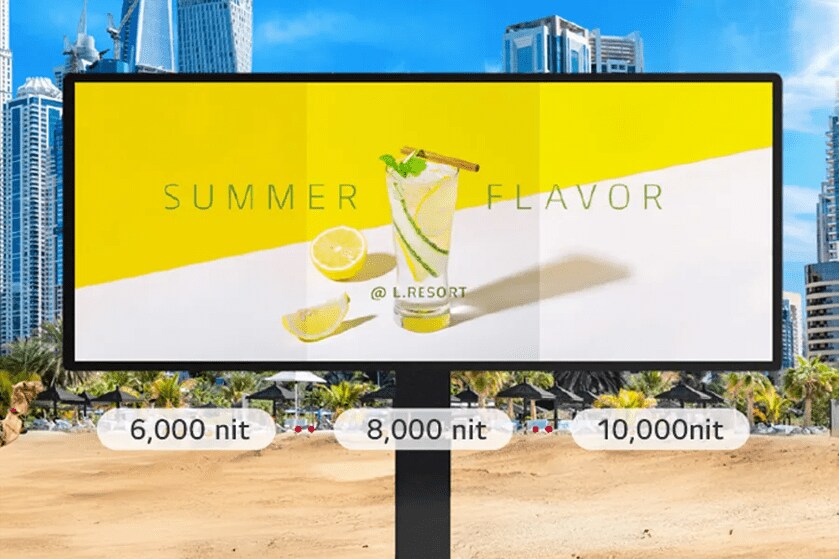

Optionally, users can choose among several models, such as P10 / 10,000 nit, P10 / 8,000 nit, P6.6 / 8,000 nit, and P6.6 / 6,000 nit. It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 140°F and can be reliably installed at altitudes of up to 16,000 feet.

*Brightness options are set before shipment from the factory, and cannot be changed after installation.

Half-width, Half-height Mitered Panel/Cabinet for Facetted Curve with Left and Right Cut 45 degree miter
Cabinet Dimensions (W × H ×D): 18.9 × 12.6 × 2.7 in / 480 × 320 × 68 mm

Brightness: up to 10,000 nits
Refresh Rate: 7,680 Hz

Half-width, Half-height Panel/Cabinet
Cabinet Dimensions (W × H ×D): 18.9 × 12.6 × 2.7 in / 480 × 320 × 68 mm

Brightness: up to 8,000 nits
Refresh Rate: 7,680 Hz

Half-width, Half-height Mitered Panel/Cabinet for Facetted Curve with Left and Right Cut 45 degree miter
Cabinet Dimensions (W × H ×D): 18.9 × 12.6 × 2.7 in / 480 × 320 × 68 mm

Brightness: up to 8,000 nits
Refresh Rate: 7,680 Hz
