16 mm Ultra High Brightness Direct View LED, IP65 & IP54 rated, HDR10/HDR10 Pro Support, & SuperSign CMS
DISCONTINUED

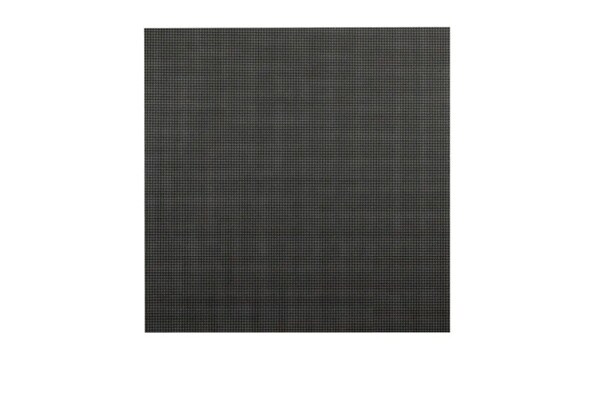

GSEH160
16 mm Ultra High Brightness Direct View LED, IP65 & IP54 rated, HDR10/HDR10 Pro Support, & SuperSign CMS
Key Features
All Specs
- Direct View LED Display with 16 mm Pixel Pitch
- Brightness Peak 8,500 nits
- Quick Installation
- Front and Rear Serviceability
- Lifetime up to 100,000 hours
Compare
Specs & Resources
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Physical Pixel Density (pixels/m²)
3,906
Service Access
Front and Rear
Pixel Pitch (mm)
16.0
Flatness of Cabinet (mm)
±1.0
Cabinet Material
Al
Module Resolution (W × H)
12 × 12
No. of Modules per Cabinet (W × H)
8 × 8
Cabinet Resolution (W × H)
96 × 96
Module Dimensions (W x H, in. / mm)
7.6 x 7.6 / 192 x 192
Weight per Module (Ibs. / kg)
1.2 / 0.56
Cabinet Dimensions (W x H x D, in. / mm)
60.5 x 60.5 x 8.9 / 1,536 x 1,536 x 227
Cabinet Surface Area (ft² / m²)
25.4 / 2.359
Weight per Cabinet (Ibs. / kg)
229.3 / 104.0
Weight per Square Meter (Ibs./ft² / kg/m²)
9.03 / 44.1
ENVIRONMENT
Environment
RoHS, REACH
CERTIFICATION
Certification
CE / FCC / ETL
WARRANTY
Warranty
3 Year Limited
OPTICAL SPECIFICATIONS
Brightness Uniformity
97%
Color Uniformity
±0.05 Cx, Cy
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Visual Viewing Angle (H × V)
160° × 105°
Color Temperature (K)
3,500-8,500
Contrast Ratio (Typ.)
10,000 : 1
Max Brightness (After Calibration, nits)
8,500
CONTROLLER
Controller
CVEA
ELECTRICAL SPECIFICATIONS
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Power Consumption (W/m², Max.)
716
Power Consumption (W/Cabinet, Max.)
1,690
Power Consumption (W/Cabinet, Avg.)
676
Heat Dissipation (BTU/h/Cabinet, Max.)
5,767
Heat Dissipation (BTU/h/Cabinet, Avg.)
2,307
Heat Dissipation (BTU/h/m², Max.)
2,445
Power Supply (Vac)
100 to 240
90 DEGREE CORNER CUT
90 Degree corner cut
Yes
OPERATION SPECIFICATIONS
Operating Humidity
0-90% RH
IP Rating Front / Rear
IP65 / IP54
LED Lifetime (Half brightness)
Up to 100,000 hours
Operating Temperature (°F / °C)
-22 to 122 / -30 to 50
All image simulations are for illustration purposes only.
