10 mm Ultra High Brightness Outdoor LED, IP 65 rated, HDR10/HDR10 Pro Support, & SuperSign CMS
DISCONTINUED

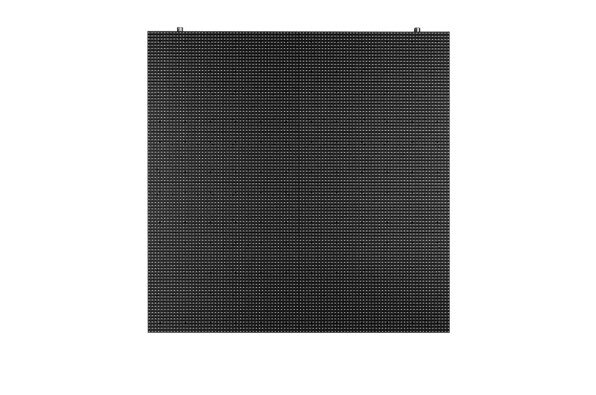

GSEG100
10 mm Ultra High Brightness Outdoor LED, IP 65 rated, HDR10/HDR10 Pro Support, & SuperSign CMS
Key Features
All Specs
- This product has been DISCONTINUED. See all our current Direct View LED.
Compare
Specs & Resources
PHYSICAL PARAMETERS
Pixel Configuration
Single SMD
Weight per Module (kg)
2.05
Physical Pixel Density (pixels/m²)
9,216
Service Access
Front and Rear
Pixel Pitch (mm)
10.42
Weight per Square Meter (kg/m²)
25.0
Weight per Cabinet (kg/Cabinet)
25.0
Flatness of Cabinet (mm)
±1.0
Cabinet Surface Area (m²)
1.000
Cabinet Material
Al
Module Resolution (W × H)
48 × 32
No. of Modules per Cabinet (W × H)
2 × 3
Cabinet Resolution (W × H)
96 × 96
Module Dimensions (W × H, mm)
500 × 333.33
Cabinet Dimensions (W × H × D, mm)
1,000 × 1,000 × 105
ENVIRONMENT
Environment
RoHS, REACH
CERTIFICATION
Certification
CE / FCC / ETL
OPTICAL SPECIFICATIONS
Brightness Uniformity
97%
Color Uniformity
±0.05 Cx, Cy
Contrast Ratio
9,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Visual Viewing Angle (H × V)
160 × 130
Color Temperature (K)
3,200-9,300
Max Brightness (After Calibration, nit)
7,000
CONTROLLER
Controller
CVEA
ELECTRICAL SPECIFICATIONS
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
Power Consumption (W/m², Max.)
650
Power Consumption (W/Cabinet, Max.)
650
Power Consumption (W/Cabinet, Avg.)
260
Heat Dissipation (BTU/h/Cabinet, Max.)
2,218
Heat Dissipation (BTU/h/Cabinet, Avg.)
887
Heat Dissipation (BTU/h/m², Max.)
2,218
90 DEGREE CORNER CUT
90 Degree corner cut
Yes
OPERATION SPECIFICATIONS
Operating Humidity
0-90% RH
IP Rating Front / Rear
IP65 / IP65
LED Lifetime (Half brightness)
100,000
Operating Temperature (°C)
-30 to +50
All image simulations are for illustration purposes only.
