The Powerful Answer to feed video and audio contents to LG Digital Signage
DISCONTINUED

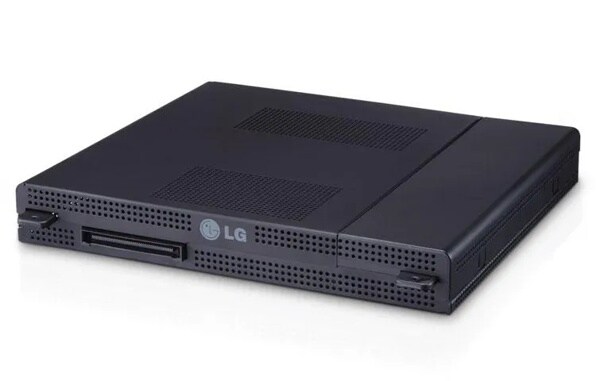

MP700-DHCJ
The Powerful Answer to feed video and audio contents to LG Digital Signage
Key Features
All Specs
- COMPATIBLE: stand alone or built-in type
- COST EFFECTIVE: support multiple displays with high resolution(maximum 3,840 x 2,160)
- COMPATIBLE MODEL: 84WS70MS-B, 84WS70BS-B
Compare
Specs & Resources
OTHER
UPC
719192192423
SPECIFICATIONS
Graphic Performance
Full HD x 4, Ultra HD x 1 Decoding
CPU
Intel® CoreTM i7-3610QE 2.3 GHz (Qual Core)
O/S
Windows Embedded Standard 7 Professional (64bit)
Storage
2.5" 1TB HDD
Chip Set
Mobile Intel® QM77
Graphic
AMD Radeon™ E6760 with 1GB VRAM
Main Memory
DDR3 1333 4GB (2 SODIMM)
Dimensions (W x H x D)
10.2” x 1.6” x 10.9”
Weight
5.3 Ibs
PANEL
Display Type
Digital Media Players
MULTI I/O PORT
LAN Port
Intel 82577LM Gigabit(10/100/1,000 Mbps) Ethernet PHY
Display Out
DP x 4 / RGB
Mini PCI Express Socket
Supported
USB Port
Hi-Speed USB 2.0 x 2 , USB 3.0 Port x 1
LINE Out
Supported
Serial Port
Supported
OPERATIONAL SPECIFICATIONS
Resolution (DP)
Maximum Resolution 2,048 x 1,536 @ 75 Hz
Resolution (DP with HBR2)
Maximum Resolution 3,840 x 2,160 @ 30 Hz
Resolution (RGB)
Maximum Resolution 1,920 x 1,080 @ 75 Hz
Power
Rated Voltage AC 100-240V~, 50/60 Hz, 1.8A
Operating Conditions
Operating Temperature 5°C to 40°C Operating Humidity 10% to 80%; Storage Temperature -20°C to 60°C; Storage Humidity 5% to 95%
COMPATIBLE MODEL
Compatible Models
84WS70MS-B, 84WS70BS-B
All image simulations are for illustration purposes only.
