The Integral Full HD Signage Player to feed video and audio contents to LG Digital Signage
DISCONTINUED

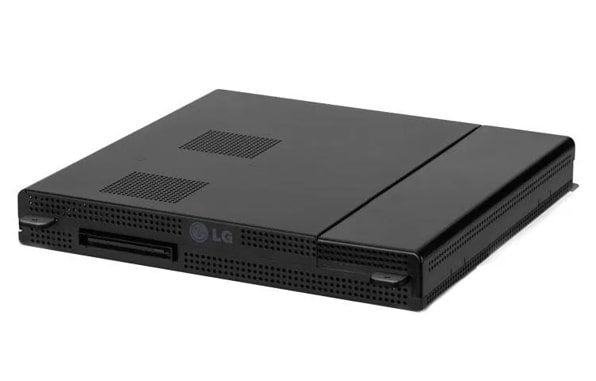

MP500-ADBB
The Integral Full HD Signage Player to feed video and audio contents to LG Digital Signage
Key Features
All Specs
- COMPATIBLE: stand alone or builtin type
- CLEAR: Full HD resolution.
- COMPATIBLE MODEL: WS50MS-B, WS50BS-B
Compare
Specs & Resources
GENERAL SPECIFICATIONS
CPU
Intel Celeron P4500 Processor 1.86 GHz (Dual Core)
Weight
4.6 Ibs (Set Only)
Secondary Storage Device
SATA SSD 32GB
O/S
Window XP Embedded
Main Memory
DDR3 1333 2,048 MB SODIMM type
Dimensions (W x H x D)
10.2” x 1.6” x 10.9”
Chip Set
Mobile Intel QM57 Express Chipset
Carton Dimension (W x H x D)
11.8” x 3.9” x 13.6” (Set Box)
OPERATIONAL SPECIFICATION
Resolution (DP)
Maximum Resolution 2,560 x 1,600 @ 60Hz
Resolution (HDMI)
Maximum Resolution 1,920 x 1,200 @ 60Hz
Resolution (Recommended)
Recommended Resolution 1,920 x 1,080 @ 60Hz
Operating Conditions
Operating Temperature 5°C to 40°C Operating Humidity 10% to 80%; Storage Temperature -20°C to 60°C; Storage Humidity 5% to 95%
Power
Rated Voltage AC 100-240V~, 50/60 Hz, 1.8A
PANEL
Display Type
Digital Media Players
MULTI I/O PORT
Display Out
DP / HDMI *DP does not support Digital Audio
Graphic Performance
Full HD x 2
LAN Port
Intel 82577LM Gigabit(10/100/1,000 Mbps) Ethernet PHY
Mini PCI Express Socket
Supported
LINE Out
Supported
Serial Port
Supported
USB Port
Hi-Speed USB 2.0 port 480 Mbps rate (x4)
COMPATIBLE MODEL
Compatible Models
WS50MS-B, WS50BS-B
All image simulations are for illustration purposes only.
