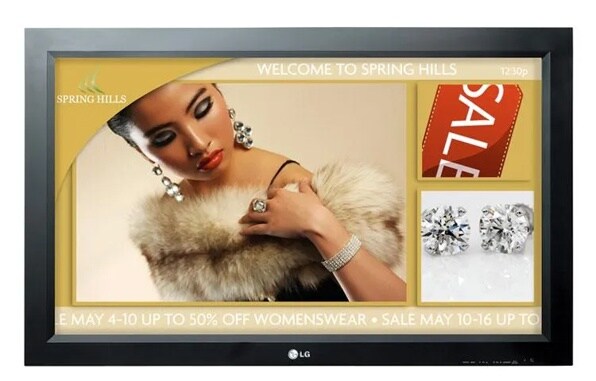

37" class (37.0" diagonal) LCD Widescreen HD Capable Monitor
DISCONTINUED
M3702C-BA
37" class (37.0" diagonal) LCD Widescreen HD Capable Monitor
Compare
Specs & Resources
OPTIONAL ACCESSORIES-SP0000K (Speakers)
Color
Black
Speaker Weight (each)
0.8 lbs
Dimensions (Wx H x D) (each)
2.88" x 13.72" x 2.17"
AUDIO
Sound Mode
Clear Voice/Standard/Music/Cinema/ Sports/Game/User
Audio Power
20W(10W x 2)
Auto Volume
Yes
Balance
Yes
Speaker On/Off
Yes
VIDEO
Video Input
RGB Analog / Digital
H-Scanning Frequency
30~83kHz (Analog/Digital)
V-Scanning Frequency
56~75Hz (Analog), 60Hz (Digital)
Sync Compatability
Separate / Composite
Max Input Resolution
1600 x 1200 @ 60Hz (Analog) 1920 x 1080 @ 60Hz (Digital)
Recommended Resolution
1360 x 768 @ 60Hz (Analog / Digital)
Pixel Frequency
162 MHz ( D-Sub), 148.5 MHz (HDMI/DVI)
Color Temperature
Warm/Medium/Cool/User
Picture mode
Vivid/Standard/Cinema/Sports/Game/ User1/User2
UPC
UPC
7 19192 18479 4
POWER
Power Supply
100-240V~, 50/60Hz
Power Type
Built-In Power
Power Consumption-Normal
180W
Power Switch Type
Tact Switch
Power Consumption-Standby/Suspend
1W (RGB) / 4 W (HDMI/DVI)
Power Consumption-DPM Off
1W(RGB)/4W(HDMI/DVI)
Power Consumption-Switch Off
1W
SPECIAL FEATURES
Key Lock
Yes
ISM Method
Normal/White Wash/Orbiter/ Inversion/Dot wash
Information
Serial Number, SET ID, S/W Version
DPM Select
Yes
Source Selection
Digital (HDMI/DVI)/Analog (RGB)/ Component 1/Component 2/AV
Time
Clock/On/off time/Auto sleep/ Power on Delay
Temperature Sensor
Yes
Split Zoom (Self Video Wall, Max 5 x 5)
Yes (adjusts for bezel width)
Advanced
Gamma/Film mode/Black level/ Noise Reduction
Auto Power / Source Memory
Yes
Position
H / V
Tracking
Auto/Clock/Phase
Set-up
Language(English/French/Spanish/ Italian/German/Portugues/ Korean/Japanese/Chinese/Russian)
Mute
Yes
Sleep Timer
Yes
Brightness/ Contrast
Yes
Color
Warm/Medium/Cool User Control (R/G/B)
REAR INPUTS/OUTPUTS
Audio Jack Built-in (No Amp)
Yes
External Speaker Out
Yes
Discrete IR Input
Yes
Component Video
2 Hi-Res (BNC)
HDMI with HDCP
Yes
PC Formats
Auto Scaling to XGA
HDTV Formats
Component : 720p/1080i, HDMI :720p/1080i/1080p
Audio Inputs
3 Plus PC Sound
PC Input via 15-Pin Sub "D"
1 / 1
RJ-232C Input/Output
1 / 1
Audio Output
1
Composite Video Input/Output
1 (BNC) / 1 (BNC)
S-Video
1 (S-Video has a priority but there is no input mode)
STANDARD CERTIFICATIONS
Safety
UL/c-UL/CB scheme/TUV/NEMKO
EMC
FCC Class "B", VCCI, C-tick, CE, GOST, MIC
RoHS Compliant
Yes
PANEL
Contrast Ratio
3,000:1 (DCR)
Response Time
5 ms (G to G)
Brightness
500 cd/m^2
Aspect Ratio
16 : 9
Native Resolution
1366 x 768
Surface Treatment
Hard Coating (3H) Anti-glare
Color Depth
16.7 Million
Pixels (H x V x 3)
3,147,264
Viewing Angle
178°/178°
LCD Panel Type
37” Widescreen TFT (Thin Film Transistor) – LCD (Liquid Crystal Display)
Display Area
37.0” diagonal
MTBF
50,000 Hr., Landscape
OPTIONAL ACCESSORIES-ST3700K (Stand)
Weight
6.86 lbs
Color
Black/Silver
Stand Dimensions (W x H x D)
26.4" x 5.0" x 8.96"
CABINET
Color
Black/Silver
Monitor Weight
47.5 lbs
VESA Standard Mount Interface
600mm x 400mm
Packed Weight
56.44 lbs
Carton Dimensions
40.4" x 10.0" x 26.9"
Monitor Dimensions
36.54" x 22.49" x 4.43"
Monitor with Opt. Stand
36.54" x 24.45" x 8.96
Monitor Weight with Opt. Stand
54.36 lbs
LIMITED WARRANTY
Limited Warranty
3 Years (Parts/Labor)
