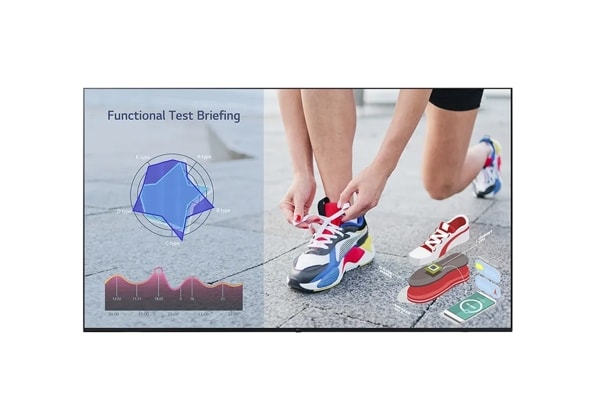

86” UL3J-B UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
$2,800.00
86UL3J-B
86” UL3J-B UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
$2,800.00
Key Features
All Specs
- Resolution : ULTRA HD (3,840 x 2,160)
- High-Performance with LGwebOS<sup>TM</sup> 6.0
- Built-in Speaker
- Compatible with LG's One:Quick Share
- ENERGY STAR® Certified
Select Quantity
Max 5 units when checking out as guest. To purchase more than 5 units, please sign in to your LG Business Account
Upgrade your business with LG. Sign up for discounts, higher purchase limits, and more.
Warranty Info
This product comes with standard manufacturer's warranty. Extended Care Plans are available. see here for details
Review your selections
Selection Total
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs

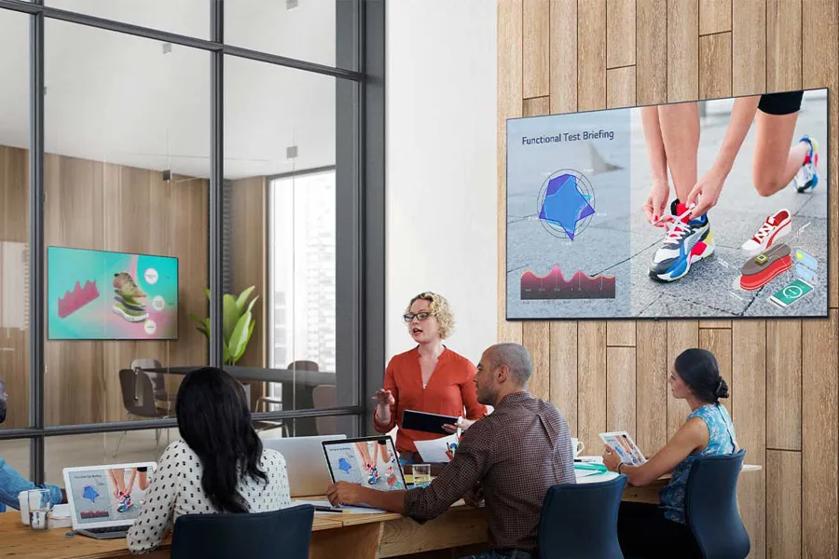

UHD Digital Signage with webOS™
Share your messaging or advertisements on this slim UHD Digital Signage with LG's webOS™ Smart Signage Platform.
Superb Picture Quality with Ultra HD Resolution
Ultra-HD resolution (3,840 x 2,160) and LG's IPS screen technology combine to deliver content with rich color and detail for a realistic image. IPS screens also provide a wide viewing angle for off-axis viewing.

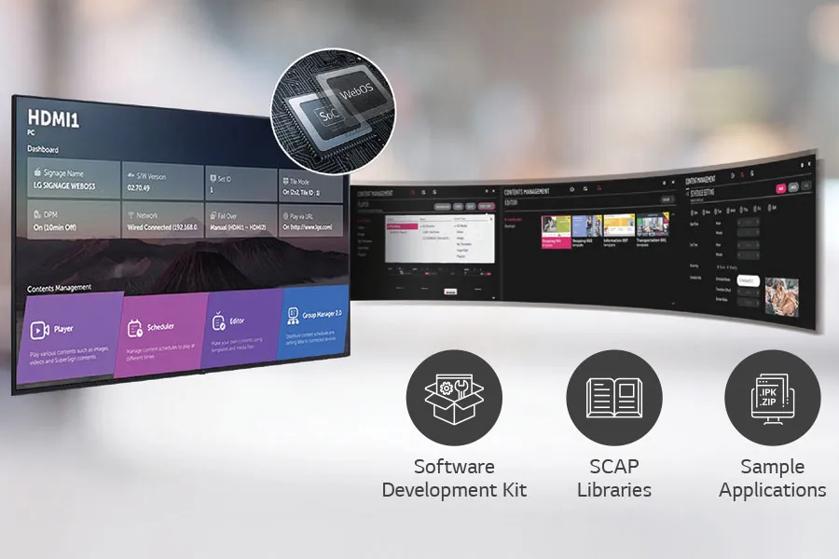

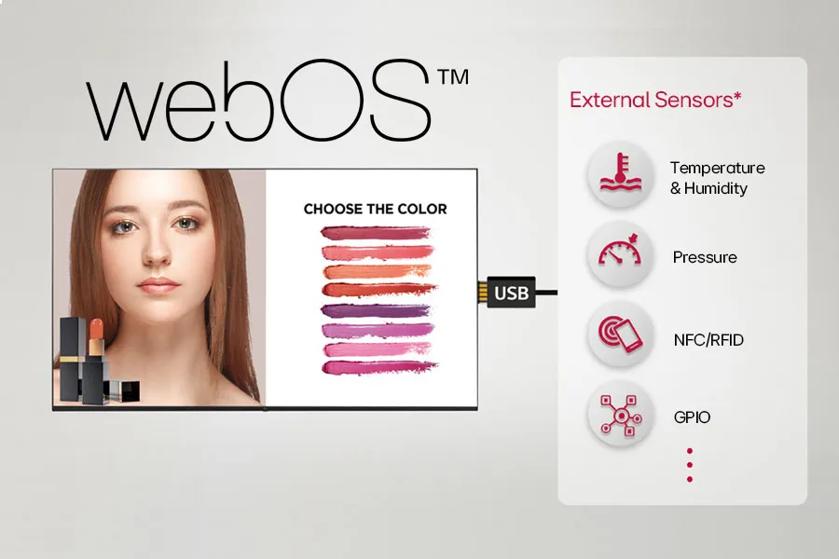

High-Performance with LG webOS™ 6.0
The UL3J series features LG's webOS™ 6.0 with an upgraded in System on Chip (SoC) and web engine, providing smooth execution of several tasks. LG webOS™ smart signage platform provides enhanced user convenience with an intuitive Graphic User Interface (GUI).

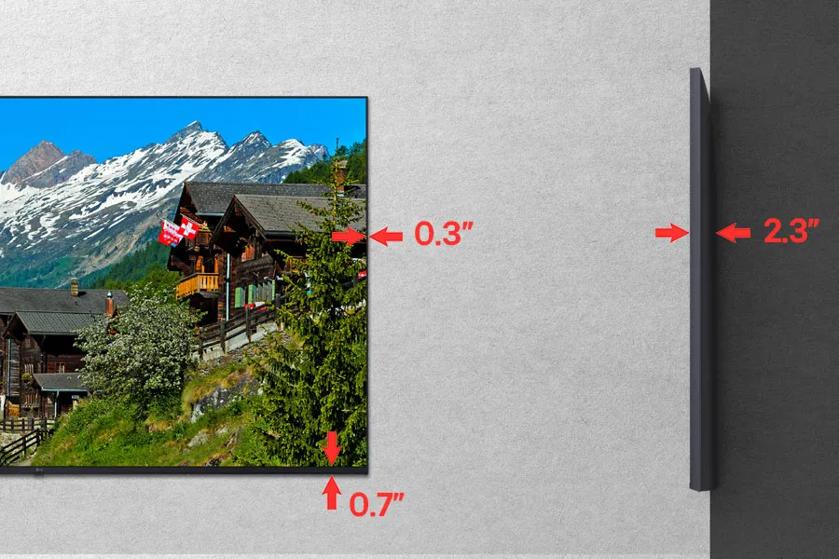

Sophisticated Slim Design
A sleek, sophisticated design provides an immersive viewing experience and enhances the overall room décor. Its thin bezel size and thickness* also saves space and enables easy installation.
*Compared to LG's UL3G series.
*Compared to LG's UL3G series.
Remote Monitoring and Control
A user-friendly web-based monitoring solution enables the user to have full access to the display anywhere at any time from their mobile phone & PC under a network-accessible environment while having access to both current and past data. It also allows the user to monitor the display, make adjustments and control the unit remotely in real-time.

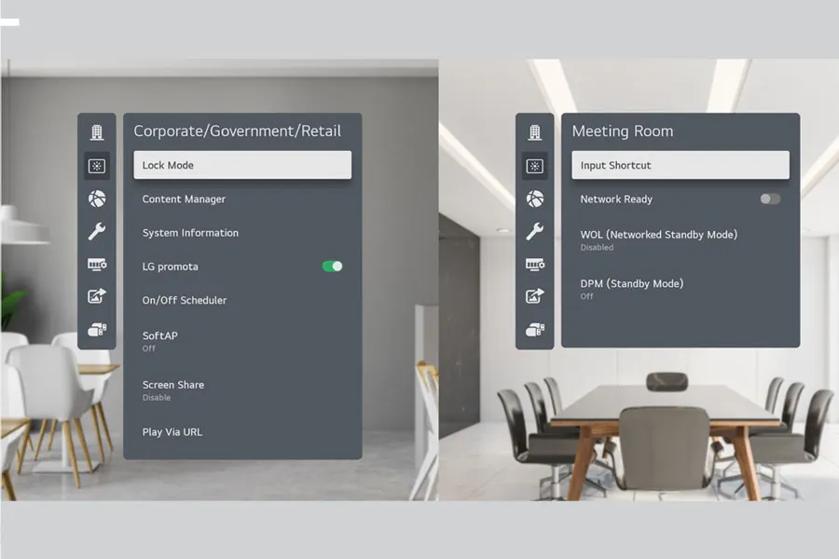

Easy Menu Setup For Vertical Needs
UL3J series organizes commonly used menus by industry, making it convenient for users. Preset support for corporate, government, retail & meeting rooms.
Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update firmware under the same network.
Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

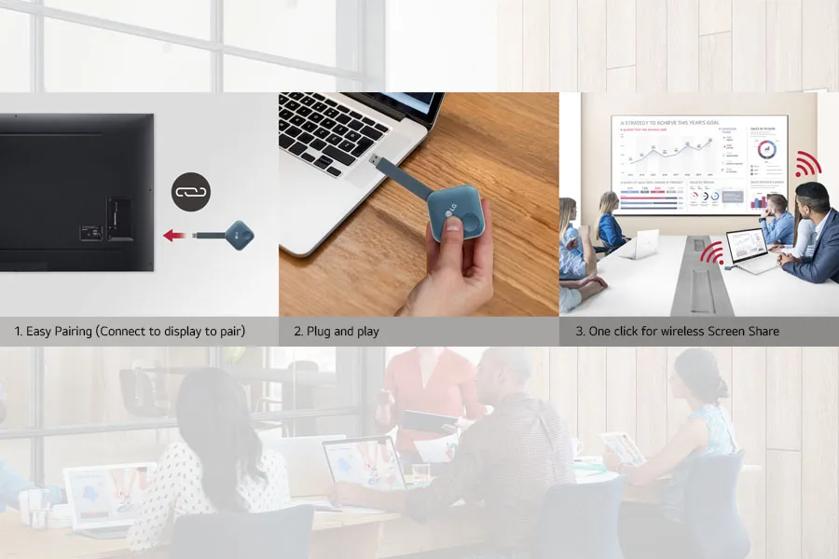

Compatible with LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG 0ne:Quick Share (sold separately) is a USB wireless screen sharing solution. Its USB dongle button and embedded Wi-Fi* allow you to share a PC screen to the display and adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you display a meeting agenda and notes before the meeting starts.
*Users need to set up Soft AP enables at the Network Menu of the Signage.
**Users can enable Office Meeting Mode at EX Setting Menu of the Signage.
Compatible with AV Control Systems
For added efficiency, the UL3J series supports Crestron Connected®* for compatibility with professional AV controls to achieve virtually seamless integration and control**.
*Initial display setting is required for Crestron Connected® compatibility.
**Network based control.
*Initial display setting is required for Crestron Connected® compatibility.
**Network based control.
Video Conference System Compatibility
For compelling video conferencing, the UL3J series is compatible with Cisco® solutions that offer robust and integrated control* for an intelligent video conference.
*Using an HDMI cable connection (HDMI cable not included).
*Using an HDMI cable connection (HDMI cable not included).
LG ConnectedCare Services
Maintenance is easy and fast with the optional LG ConnecedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and provides remote-control services that support the stable operation of clients' businesses.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (x4) Max One HDMI input
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
Yes
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
300W
Power Supply
AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
154W
BTU Heat Generation (Max.)
1,024 BTU
BTU Heat Generation (Typ.)
751 BTU
Power Consumption (Typ.)
220W
Mechanical
Bezel Color
Ashed Blue
Bezel Width
Not Available
Bezel Width (On Bezel)
Even bezel: 15.9 mm
Bezel Width (Off Bezel)
T/R/L: 6.9 mm, B: 18.4 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
99.6 lbs / 45.2 kg
Weight Signage Box
N/A
Shipping Weight
127.2 lbs / 57.7 kg
Dimensions (W x H x D)
75.9 x 43.5 x 2.4 in / 1927 x 1104 x 59.9 mm
Dimensions with Stand (W x H x D)
Not Available
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
83.3 x 47.8 x 9 in / 2,115 x 1215 x 228 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
600 x 400 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes (Power On/Off only)
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 6.0
Processor
No
Graphics
No
Storage
No
Internal Memory
8 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x3) HDCP 2.2/1.4
IR In (3.5 mm)
No
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
No
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x2) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
Yes (x1)
DisplayPort Out
No
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
Mexico
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
No
UPC
1 95174 01289 5
Basic Accessories (included)
Remote Controller (include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
32°F to 86°F / 0°C to 30°C
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
86"
Panel Technology
IPS
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120 Hz
Brightness (Typ.)
330 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1200:1
Dynamic Contrast Ratio
1000000:1
Color Gamut
DCI 80%
Color Depth (Number of Colors)
1.07 Billion Colors, 8 bit
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
5 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
16/7
Lifetime
Up to 30,000 Hrs
Orientation
Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
