86" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
$5,467.00
86UH5J-H
86" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
$5,467.00
Key Features
All Specs
- The 16:9 UHD display shows crisp, clear images & in portrait or landscape
- 500 nits brightness & 28% (Haze) surface treatment lets your message been seen
- webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
- Certified Crestron Connected® and Cisco Certified
- Lasts up to 50,000 hours and can be on 24/7
- ENERGY STAR® Certified
Select Quantity
Max 5 units when checking out as guest. To purchase more than 5 units, please sign in to your LG Business Account
Upgrade your business with LG. Sign up for discounts, higher purchase limits, and more.
Warranty Info
This product comes with standard manufacturer's warranty. Extended Care Plans are available. see here for details
Review your selections
Selection Total
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs

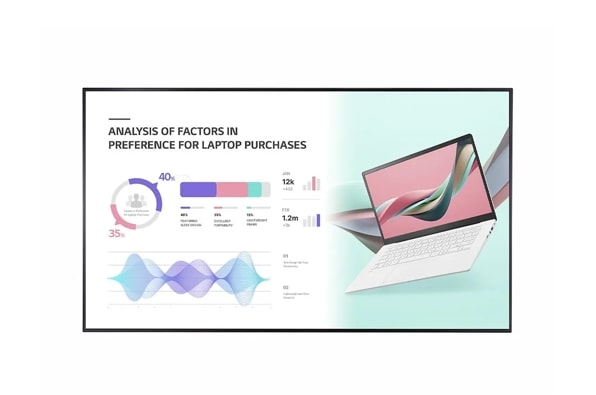

High Haze UHD Digital Signage

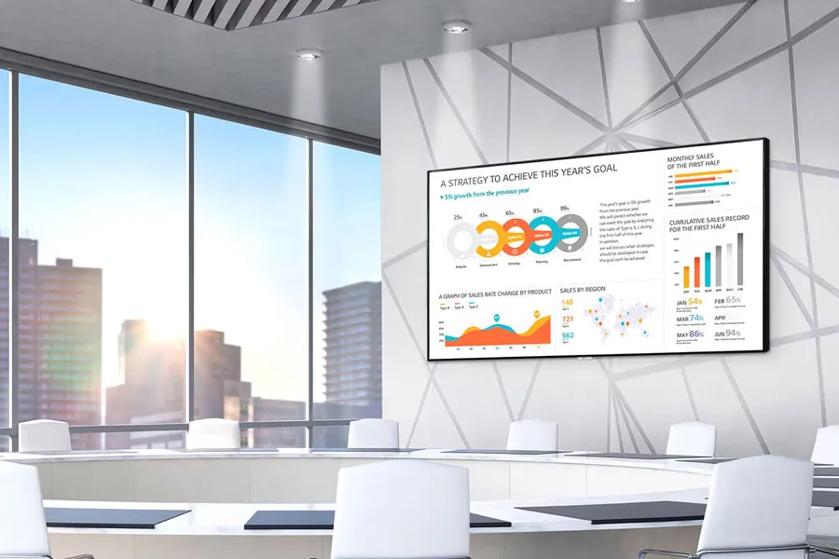

Enjoy crisp, clear content on this UHD Digital Signage that features a high haze surface treatment. This user friendly display can be set up portrait or landscape depending on your needs. The IPS display allows for wide viewing angles making it great for any space whether it is retail or corporate offices.
A Bright View
With brightness of 500 nit, this UHD signage clearly deliver content to attract public attention, making it a great display for marketing in airports, retail, shopping malls & more.
High-Performance with webOS™
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.

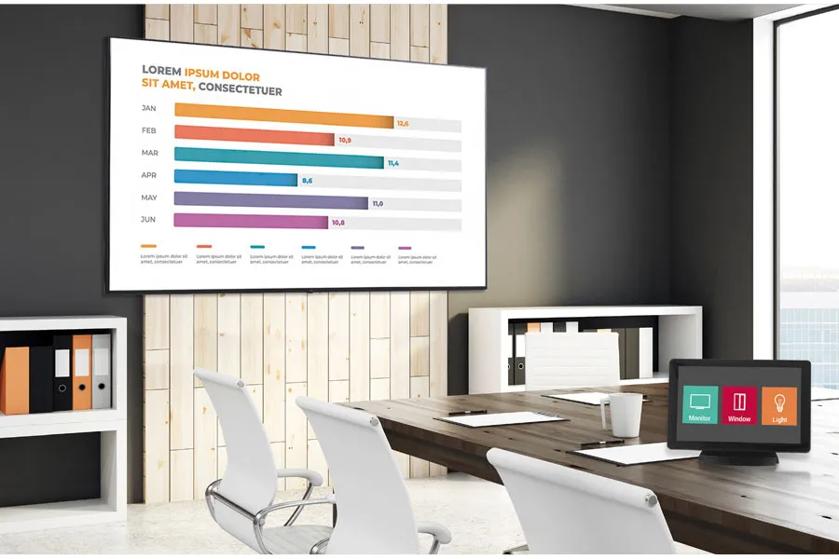

Compatible with AV Control System
This UHD signage has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
* Network based control
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board helps reduce these risks.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
Yes (x4)
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
No
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (x4)
PM mode
Yes
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
Yes
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
260W
Power Supply
AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
140W
BTU Heat Generation (Max.)
888 BTU
BTU Heat Generation (Typ.)
683 BTU
Power Consumption (Typ.)
200W
Mechanical
Bezel Color
Black
Bezel Width
Not Available
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Even bezel: 14.3 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
108.0 lbs / 49 kg
Weight Signage Box
N/A
Shipping Weight
159.8 lbs / 72.5 kg
Dimensions (W x H x D)
75.8 x 43.2 x 2.4 in / 1,926.2 × 1,097.2 × 60.6 mm (without LG Logo)
Dimensions with Stand (W x H x D)
Not Available
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
80.2 x 49.2 x 11.2 in / 2,037 × 1,250 × 285 mm
Conformal Coating (Power Board)
Yes
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 6.0
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x3) HDMI1DMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4
IR In (3.5 mm)
Yes
DVI-D In
Yes (x1) HDCP 1.4
RGB In
No
Audio In (3.5 mm)
Yes (x1)
DisplayPort In
Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
Yes (x1)
DisplayPort Out
No
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
Yes (input HDMI, DP / Output HDMI)
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
Mexico
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)
UPC
1 95174 04283 0
Basic Accessories (included)
Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
Yes
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
86"
Panel Technology
IPS
Backlight Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120 Hz
Brightness (Typ.)
500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1100:1
Dynamic Contrast Ratio
1000000:1
Color Gamut
BT709 95%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
8 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
28%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
¹ This feature may have a restriction depending on the TV models.
