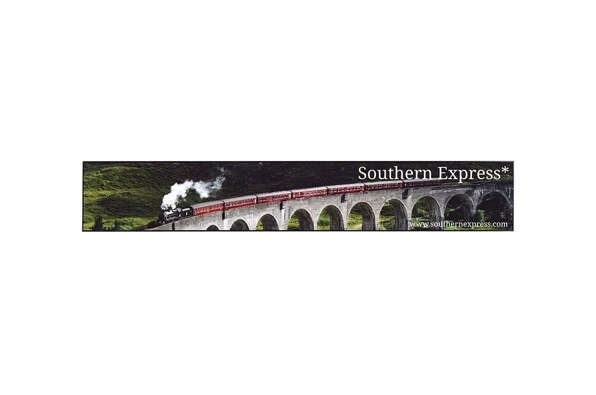

86” IPS UHD Ultra Stretch Digital Display (3,840x600) with Multi Screen Mode & IP5x Certified

Name: 86” IPS UHD Ultra Stretch Digital Display (3,840x600) with Multi Screen Mode & IP5x Certified
Brand: LG Electronics
SKU: 86BH5F-B
Availability: Discontinued

DISCONTINUED

86BH5F-B

86” IPS UHD Ultra Stretch Digital Display (3,840x600) with Multi Screen Mode & IP5x Certified

Key Features

All Specs

Brightness (Typ.): 500 nits
58:9 Aspect Ratio & 3,840 x 600 UHD Resolution
Bezel: 4.4 mm (L/R), 5.9 mm (T/B)
Depth: 81.7mm
Not compatible with webOS Signage ecosystem
Multi Screen Mode (4PBP)

Compare

Specs & Resources

Collapse All

Languages

On-screen Display Languages

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues (Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual

Optional

OPS Kit (KT-OPSF)

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio

External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

Audio Out

Yes (x1)

HDMI In

Yes (x3), HDCP2.2

DP In

Yes (x1), HDCP2.2

DVI-D In

Yes (x1), HDCP1.4

Audio In

Yes (x1)

RS232C In

Yes (x1)

IR In

Yes (x1)

USB in

USB2.0 Type A (x2)

DP Out

Yes (x1), Input: HDMI/DVI/DP

RS232C OUT

Yes (x1)

RJ45 (LAN)

Yes (x1)

CERTIFICATIONS

CE (Regulatory)

Yes

FCC Class A (Regulatory)

Yes

ErP (Energy Efficiency)

Yes

POWER CONSUMPTION

Smart Energy Saving

100W

Typ./Max.

220W/240W

DISPLAY

Screen Size

86"

Panel Technology

IPS

Back Light Type

Direct

Aspect Ratio

58:9

Native Resolution

3840 x 600

Refresh Rate

60Hz

Contrast Ratio

1100:1

Color gamut

NTSC 72%

Viewing Angle (H x V)

178° x 178°

Response Time

8ms (G to G)

Surface Treatment (Haze)

10%

Operation Hours (Hours/Day)

24/7

Brightness (Typ.)

500nits

Dynamic CR

500,000:1

Color Depth

10bit, 1.07 Billion colors

Lifetime

50,000 Hrs (Typ.)

Portrait / Landscape

Yes/Yes

SOFTWARE COMPATIBILITY

Control and Monitoring Software

SuperSign Control/Control+

Content Management Software

SuperSign CMS

Signage365Care

Yes

Not compatible with webOS Signage ecosystem.

SuperSign CMS

Yes

SuperSign Control / Control+

Yes/Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

LG ConnectedCare

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

32°F to 104°F / 0°C to 40°C

Operation Humidity Range

10% to 80%

MECHANICAL SPECIFICATION

Bezel Width

4.4 mm (L/R), 5.9 mm (T/B)

Packed Weight

84.2 lbs. / 38.2kg

VESA™ Standard Mount Interface

23.6” x 7.9” / 600 x 200 mm

Weight (Head)

45.1 lbs. / 20.5kg

Bezel Color

Black

Handle

Yes

Monitor Dimension (W x H x D)

85.0” x 13.7” x 3.2” / 2,158.3 x 348.5 × 81.7 mm

Carton Dimensions (W x H x D)

90.2” x 23.6” x 9.0” / 2,290 x 599 x 228 mm

MECHANICAL

Bezel Color

Black

Bezel Width

T/R/L/B: 5.9/4.4/4.4/5.9 mm

Weight (Head)

45.2 lbs/20.5kg

VESATM Standard Mount Interface

600 x 200

Shipping Weight

84.2 lbs/38.2kg

Monitor Dimension (W x H x D)

85.0 x 13.7 x 3.2 in/2158.3 x 348.5 x 81.7 mm

Handle

Yes

Shipping Dimensions (W x H x D)

90.2 x 23.6 x 9.0 in/2290 x 599 x 228 mm

ENVIRONMENT

Operation Temperature

32°F to 104°F/0°C to 40°C

Operation Humidity

10% to 80%

Durability Rating (Dust)

IP5x

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes (Piggyback)

POWER

Power Type

Built-In Power

Power Supply

100-240V~, 50/60Hz

Power Supply

100-240 Vac, 50/60Hz

DPM

0.5W

Power off

0.5W

Smart Enegy Saving

100W

Typical Power Consumption

220W

Max Power Consumption

240W

Typical Power Consumption per Hour

751 BTU/Hr

Max Power Consumption per Hour

819 BTU/Hr

STANDARD(CERTIFICATION)

Safety

CB/NRTL

EMC

FCC Class "A"/CE/KC

ErP/Energy Star

Yes (EU Only)/No

PANEL

Panel Technology

IPS

Aspect Ratio

58:9

Native Resolution

3,840 x 600

Lifetime

50,000 Hrs (Typ.)

Surface Treatment (Haze)

10%

Viewing Angle (H x V)

178 x 178

Orientation

Landscape & Portrait

Contrast Ratio

1,100:1

Response Time

8ms (G to G)

Screen Size

86"

Operation Hours

24 Hrs/7 Days

Brightness (Typ., nits)

500

ACCESSORIES

Basic

Remote Controller (including battery 2ea), Power Cord, DP able, RS-232C Cable, IR/Light sensor receiver, Manual

Optional

OPS Kit (KT-OPSF)

FEATURES

Smart Energy Saving

Yes

Internal Memory

8GB

Local Key Operation

Yes

USB Plug & Play

Yes

Fail over

Yes

Setting Data Cloning

Yes

SNMP

Yes

ISM Method

Yes

Auto Set ID

Yes

Status Mailing

Yes

Control Manager

Yes

PM mode

Yes

Wake on LAN

Yes

Beacon

Yes

HDMI-CEC

Yes

webRTC

Yes

Built-in Wi-Fi

Yes

Temperature Sensor

Yes

Auto Brightness sensor

Yes

Current Sensor

Yes

Local Contents Scheduling

Yes

Group Manager

Yes

Booting Logo Image

Yes

No Signal Image

Yes

RS-232C Sync

Yes

Local Network Sync

Yes

PBP

Yes (x4)

Screen Rotation

Yes

External Input Rotation

Yes

Tile Mode Setting

Yes (Max. 15X15)

Crestron Inside

Yes

OPS type compatible

Yes (Piggyback)

Languages

On-screen Display Languages

ACCESSORY

Basic

Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual

Optional

OPS Kit (KT-OPSF)

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)

Output

DP, Audio

External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

Audio Out

Yes (x1)

HDMI In

Yes (x3), HDCP2.2

DP In

Yes (x1), HDCP2.2

DVI-D In

Yes (x1), HDCP1.4

Audio In

Yes (x1)

RS232C In

Yes (x1)

IR In

Yes (x1)

USB in

USB2.0 Type A (x2)

DP Out

Yes (x1), Input: HDMI/DVI/DP

RS232C OUT

Yes (x1)

RJ45 (LAN)

Yes (x1)

CERTIFICATIONS

CE (Regulatory)

Yes

FCC Class A (Regulatory)

Yes

ErP (Energy Efficiency)

Yes

POWER CONSUMPTION

Smart Energy Saving

100W

Typ./Max.

220W/240W

DISPLAY

Screen Size

86"

Panel Technology

IPS

Back Light Type

Direct

Aspect Ratio

58:9

Native Resolution

3840 x 600

Refresh Rate

60Hz

Contrast Ratio

1100:1

Color gamut

NTSC 72%

Viewing Angle (H x V)

178° x 178°

Response Time

8ms (G to G)

Surface Treatment (Haze)

10%

Operation Hours (Hours/Day)

24/7

Brightness (Typ.)

500nits

Dynamic CR

500,000:1

Color Depth

10bit, 1.07 Billion colors

Lifetime

50,000 Hrs (Typ.)

Portrait / Landscape

Yes/Yes

SOFTWARE COMPATIBILITY

Control and Monitoring Software

SuperSign Control/Control+

Content Management Software

SuperSign CMS

Signage365Care

Yes

Not compatible with webOS Signage ecosystem.

SuperSign CMS

Yes

SuperSign Control / Control+

Yes/Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

LG ConnectedCare

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

32°F to 104°F / 0°C to 40°C

Operation Humidity Range

10% to 80%

MECHANICAL SPECIFICATION

Bezel Width

4.4 mm (L/R), 5.9 mm (T/B)

Packed Weight

84.2 lbs. / 38.2kg

VESA™ Standard Mount Interface

23.6” x 7.9” / 600 x 200 mm

Weight (Head)

45.1 lbs. / 20.5kg

Bezel Color

Black

Handle

Yes

Monitor Dimension (W x H x D)

85.0” x 13.7” x 3.2” / 2,158.3 x 348.5 × 81.7 mm

Carton Dimensions (W x H x D)

90.2” x 23.6” x 9.0” / 2,290 x 599 x 228 mm

MECHANICAL

Bezel Color

Black

Bezel Width

T/R/L/B: 5.9/4.4/4.4/5.9 mm

Weight (Head)

45.2 lbs/20.5kg

VESATM Standard Mount Interface

600 x 200

Shipping Weight

84.2 lbs/38.2kg

Monitor Dimension (W x H x D)

85.0 x 13.7 x 3.2 in/2158.3 x 348.5 x 81.7 mm

Handle

Yes

Shipping Dimensions (W x H x D)

90.2 x 23.6 x 9.0 in/2290 x 599 x 228 mm

ENVIRONMENT

Operation Temperature

32°F to 104°F/0°C to 40°C

Operation Humidity

10% to 80%

Durability Rating (Dust)

IP5x

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes (Piggyback)

POWER

Power Type

Built-In Power

Power Supply

100-240V~, 50/60Hz

Power Supply

100-240 Vac, 50/60Hz

DPM

0.5W

Power off

0.5W

Smart Enegy Saving

100W

Typical Power Consumption

220W

Max Power Consumption

240W

Typical Power Consumption per Hour

751 BTU/Hr

Max Power Consumption per Hour

819 BTU/Hr

STANDARD(CERTIFICATION)

Safety

CB/NRTL

EMC

FCC Class "A"/CE/KC

ErP/Energy Star

Yes (EU Only)/No

PANEL

Panel Technology

IPS

Aspect Ratio

58:9

Native Resolution

3,840 x 600

Lifetime

50,000 Hrs (Typ.)

Surface Treatment (Haze)

10%

Viewing Angle (H x V)

178 x 178

Orientation

Landscape & Portrait

Contrast Ratio

1,100:1

Response Time

8ms (G to G)

Screen Size

86"

Operation Hours

24 Hrs/7 Days

Brightness (Typ., nits)

500

ACCESSORIES

Basic

Remote Controller (including battery 2ea), Power Cord, DP able, RS-232C Cable, IR/Light sensor receiver, Manual

Optional

OPS Kit (KT-OPSF)

FEATURES

Smart Energy Saving

Yes

Internal Memory

8GB

Local Key Operation

Yes

USB Plug & Play

Yes

Fail over

Yes

Setting Data Cloning

Yes

SNMP

Yes

ISM Method

Yes

Auto Set ID

Yes

Status Mailing

Yes

Control Manager

Yes

PM mode

Yes

Wake on LAN

Yes

Beacon

Yes

HDMI-CEC

Yes

webRTC

Yes

Built-in Wi-Fi

Yes

Temperature Sensor

Yes

Auto Brightness sensor

Yes

Current Sensor

Yes

Local Contents Scheduling

Yes

Group Manager

Yes

Booting Logo Image

Yes

No Signal Image

Yes

RS-232C Sync

Yes

Local Network Sync

Yes

PBP

Yes (x4)

Screen Rotation

Yes

External Input Rotation

Yes

Tile Mode Setting

Yes (Max. 15X15)

Crestron Inside

Yes

OPS type compatible

Yes (Piggyback)
