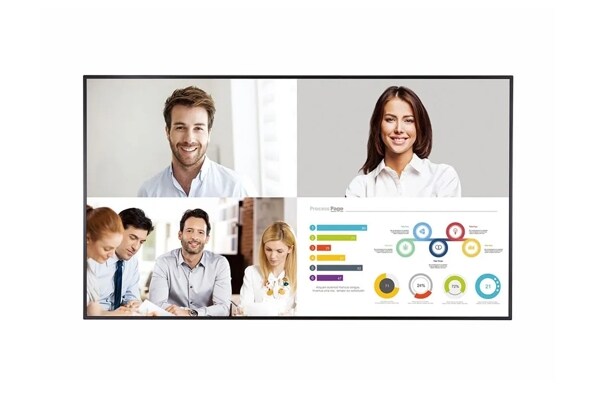

86” UM3E Series UHD LED Back-lit Digital Display with webOS Smart Signage Platform
DISCONTINUED
86UM3E-B
86” UM3E Series UHD LED Back-lit Digital Display with webOS Smart Signage Platform
Key Features
All Specs
- Brightness (Typ.) : 350 cd/m²
- Bezel : 14.3mm (Even)
- Depth : 60.6mm
- Interface : HDMI (3)/DP/DVI-D/USB 2.0 (2)/RS232C/RJ45/Audio/IR
- Built-in Speaker (10W+10W)
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
2,073 x 1,260 x 292 mm
Monitor Dimension (W x H x D)
1,926.2 x 1097.2 x 60.6 mm (w/o Handle and Logo)
Weight (Head)
49kg
Bezel Width
14.3mm (Even)
VESA TM Standard Mount Interface
600 mm x 400 mm
Packed Weight
61.1kg
CONNECTIVITY
Input
HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
Output
DP, Audio (Off/Fixed/Variable)
External Control
RS232C in/out, RJ45 in, IR in
ENVIRONMENTAL CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10% to 80%
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control+/Control
Content Management Software
SuperSign CMS
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
POWER
Normal On (Typ.)
250W
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Max
345W
STANDARD CERTIFICATION
ErP / Energy Star
Yes(EU Only) / No
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
PANEL
Brightness
350 nits
Resolution
3,840 x 2,160 (UHD)
Screen Size
86"
ACCESSORIES
Basic
Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
Optional
OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E)
All image simulations are for illustration purposes only.
