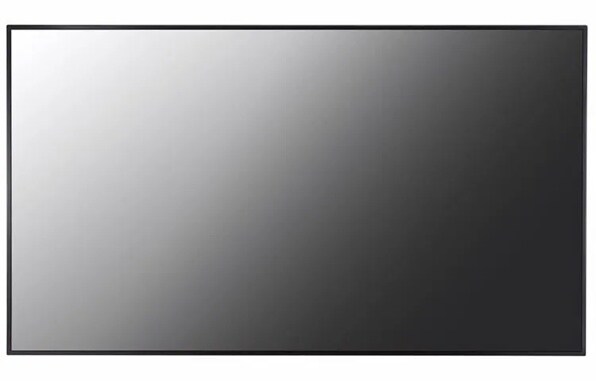

86” class - Ultra HD Large Display
DISCONTINUED
86UM3C
86” class - Ultra HD Large Display
Key Features
All Specs
- Ultra HD Resolution
- Multiple screen by PBP/PIP
- USB Content Playback and Scheduling
- USB Content Playback and Scheduling
- Wireless Solution
- Crestron Connected Certification
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
2,073 x 1,260 x 292mm / 81.61 x 49.60 x 11.50 in
Monitor Dimension (W x H x D)
1,926.2 x 1,097.2 x 60.6mm / 75.83 x 43.20 x 2.39 in (without logo & handle)
Bezel Color
Black
Weight (Head)
49kg / 108.03 lbs
Bezel Width
On: 15.6mm, Off: 14.3mm
VESA TM Standard Mount Interface
600mm x 400mm
Packed Weight
61.1kg / 134.70 lbs
CONNECTIVITY
Input
HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card
Output
DP, Audio (Fixed Level)
External Control
RS232C, RJ45, IR Receiver, Pixel Sensor
ENVIRONMENTAL CONDITIONS
Operating Humidity Range
10 % to 80 %
Operating Temperature Range
0°C to 40°C / 32°F to 104°F
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign C
Content Management Software
SuperSign W
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes (MP500/MP700)
OPS Type Compatible
Yes
POWER
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Power Consumption-Typ
315 W
Power Consumption (Smart Energy Saving)
220 W
SPECIAL FEATURES
Yes
Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP (2/3/4)
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
PANEL
Surface Treatment
Low Haze 3%
Lifetime (Typ.)
30,000 Hrs
Panel Technology
IPS
Aspect Ratio
16:9
Brightness
350cd/m2
Native Resolution
3,840 x 2,160 (UHD)
Viewing Angle (H x V)
178°/178°
Orientation
Landscape
Contrast Ratio
1,200:1
Response Time
8 ms (G to G)
Guaranteed Operating Hour
16 Hrs
Dynamic Contrast Ratio
500,000:1
Screen Size
86" (87.35" diagonal)
ACCESSORIES
Basic
Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover
Optional
Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)
All image simulations are for illustration purposes only.
