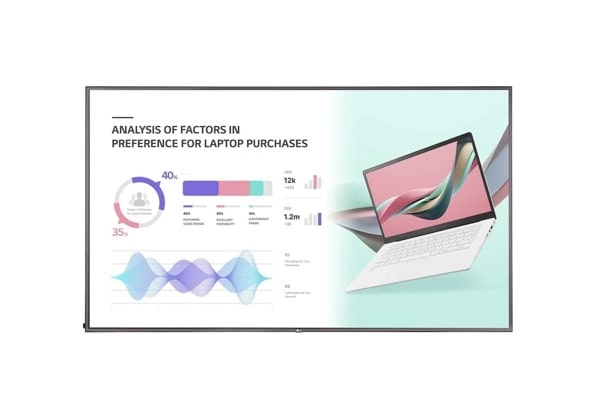

75" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating

Name: 75" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
Brand: LG Electronics
SKU: 75UH5J-H
Availability: Discontinued

DISCONTINUED

75UH5J-H

75" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating

Key Features

All Specs

The 16:9 UHD display shows crisp, clear images & in portrait or landscape
500 nits brightness & 28% (Haze) surface treatment lets your message been seen
webOS™ 6.0 Signage Platform, SuperSign CMS Compatible
Certified Crestron Connected® and Cisco Certified
Lasts up to 50,000 hours and can be on 24/7
ENERGY STAR® Certified

Compare

Specs & Resources

Collapse All

Languages

On-screen Display Languages

English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic

SPECIAL FEATURE

Overlay Touch Compatibility

CONNECTIVITY

Input

HDMI (x2, HDCP 2.2/1.4), HDMI (HDCP 1.4), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C In (4 Pin 3.5mm jack), RJ45 (LAN), IR In, USB 2.0 (x2, Type A)

Output

HDMI Out, Audio Out, External Control (RS-232C Out (4 Pin 3.5mm jack))

CERTIFICATIONS

Safety

CB / NRTL

EMC

FCC Class "A" / CE

ErP / Energy Star

Yes (NewErP) / No (TDB)

ENVIRONMENT CONDITIONS

Operation Humidity

10% to 80%

Operation Temperature

32°F to 104°F 0°C to 40°C

MECHANICAL SPECIFICATION

Bezel Width

14.9 mm (Even Bezel)

Bezel Color

Black

Weight

91.5 lbs. / 41.5 kg

Handle

Yes

Shipping Dimensions (W x H x D)

71.5 x 44.3 x 9.0 in. 1,816 × 1,126 × 228 mm

Shipping Weight

112.9 lbs. / 51.2 kg

VESAᵀᴹ Standard Mount Interface

600 × 400 mm

Dimensions (W × H × D) (without handle)

66.2 x 37.8 x 2.3 in. 1,682.4 × 960.3 × 57.9 mm (without LG Logo)

LG SOFTWARE COMPATIBILITY

LG Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Promota (Not Available for EU/CIS), Mobile CMS, LG ConnectedCare⁴)

KEY FEATURES

Key Features

Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready (Except 98”/86”/75”)), Beacon, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom

OPS Compatibility

OPS Type Compatible

Yes

OPS Power Built-in

SOUND

Speaker

Yes

ELECTRICAL

Power Supply

100-240Vac, 50/60Hz

Power Type

Built-In Power

Smart Enegy Saving

126 W

DPM

0.5 W

Power off

0.5 W

Power Consumptions (Typ. / Max.)

180 W / 260 W

BTU (British Thermal Units)

614.25 BTU/Hr (Typ.), 887.25 BTU/Hr (Max.)

PANEL

Panel Technology

IPS

Aspect Ratio

16 : 9

Brightness

500 nits (Typ.)

Native Resolution

3,840 x 2,160 (UHD)

Lifetime

Up to 50,000 Hrs.

Color Gamut

NTSC 72%

Surface Treatment (Haze)

28%

Color Depth

1.07 Billon Colors (10 bit (D))

Contrast Ratio

1,100 : 1

Screen Size

75”

Viewing Angle (H × V)

178° × 178°

Back Light Type

Edge

Refresh Rate

120 Hz

Operation Hours (Hours/Day)

24/7

Portrait / Landscape

Yes / Yes

Response Time (G to G)

6 ms

Dynamic CR¹⁾

1,000,000 : 1

ACCESSORIES

Basic

Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender

Optional

OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)

Languages

On-screen Display Languages

SPECIAL FEATURE

Overlay Touch Compatibility

CONNECTIVITY

Input

HDMI (x2, HDCP 2.2/1.4), HDMI (HDCP 1.4), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C In (4 Pin 3.5mm jack), RJ45 (LAN), IR In, USB 2.0 (x2, Type A)

Output

HDMI Out, Audio Out, External Control (RS-232C Out (4 Pin 3.5mm jack))

CERTIFICATIONS

Safety

CB / NRTL

EMC

FCC Class "A" / CE

ErP / Energy Star

Yes (NewErP) / No (TDB)

ENVIRONMENT CONDITIONS

Operation Humidity

10% to 80%

Operation Temperature

32°F to 104°F 0°C to 40°C

MECHANICAL SPECIFICATION

Bezel Width

14.9 mm (Even Bezel)

Bezel Color

Black

Weight

91.5 lbs. / 41.5 kg

Handle

Yes

Shipping Dimensions (W x H x D)

71.5 x 44.3 x 9.0 in. 1,816 × 1,126 × 228 mm

Shipping Weight

112.9 lbs. / 51.2 kg

VESAᵀᴹ Standard Mount Interface

600 × 400 mm

Dimensions (W × H × D) (without handle)

66.2 x 37.8 x 2.3 in. 1,682.4 × 960.3 × 57.9 mm (without LG Logo)

LG SOFTWARE COMPATIBILITY

LG Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Promota (Not Available for EU/CIS), Mobile CMS, LG ConnectedCare⁴)

KEY FEATURES

Key Features

OPS Compatibility

OPS Type Compatible

Yes

OPS Power Built-in

SOUND

Speaker

Yes

ELECTRICAL

Power Supply

100-240Vac, 50/60Hz

Power Type

Built-In Power

Smart Enegy Saving

126 W

DPM

0.5 W

Power off

0.5 W

Power Consumptions (Typ. / Max.)

180 W / 260 W

BTU (British Thermal Units)

614.25 BTU/Hr (Typ.), 887.25 BTU/Hr (Max.)

PANEL

Panel Technology

IPS

Aspect Ratio

16 : 9

Brightness

500 nits (Typ.)

Native Resolution

3,840 x 2,160 (UHD)

Lifetime

Up to 50,000 Hrs.

Color Gamut

NTSC 72%

Surface Treatment (Haze)

28%

Color Depth

1.07 Billon Colors (10 bit (D))

Contrast Ratio

1,100 : 1

Screen Size

75”

Viewing Angle (H × V)

178° × 178°

Back Light Type

Edge

Refresh Rate

120 Hz

Operation Hours (Hours/Day)

24/7

Portrait / Landscape

Yes / Yes

Response Time (G to G)

6 ms

Dynamic CR¹⁾

1,000,000 : 1

ACCESSORIES

Basic

Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender

Optional

OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)
