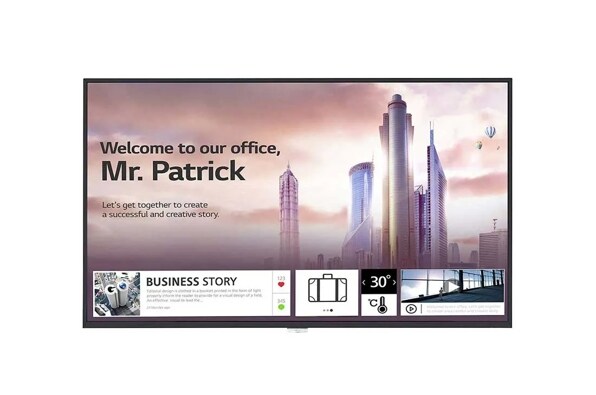

65” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible, & IP5x Certified
DISCONTINUED
65UH5F-H
65” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible, & IP5x Certified
Key Features
All Specs
- Brightness (Typ.) : 500 cd/m²
- Surface Treatment (Haze) : 28%
- Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- 30º Tilting Installation
Compare
Features and Specs
High Haze UHD Digital Signage
Enjoy crisp, clear content on this UHD Digital Signage that features a high haze surface treatment. This user friendly display can be set up portrait or landscape depending on your needs. The IPS display allows for wide viewing angles making it great for any space whether it is retail or corporate offices.
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Detachable Logo and Built-in Speaker
The UH5F-H series has a new transparent logo that is removable, giving users flexibility during installation. Content will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Durable IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.

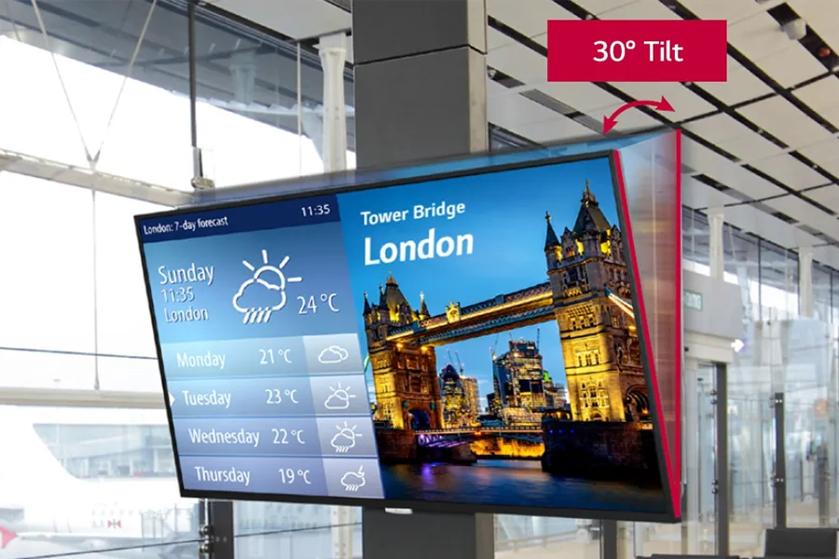

30° Tilting Installation
The UH5F-H series supports the installation with 30 degrees of tilt so the screen can be viewed when displayed in high spaces.*
*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)
*Tilt installation of up to 30 degrees facedown is supported. (In conditions within 30ºC temperature, 50% humidity)

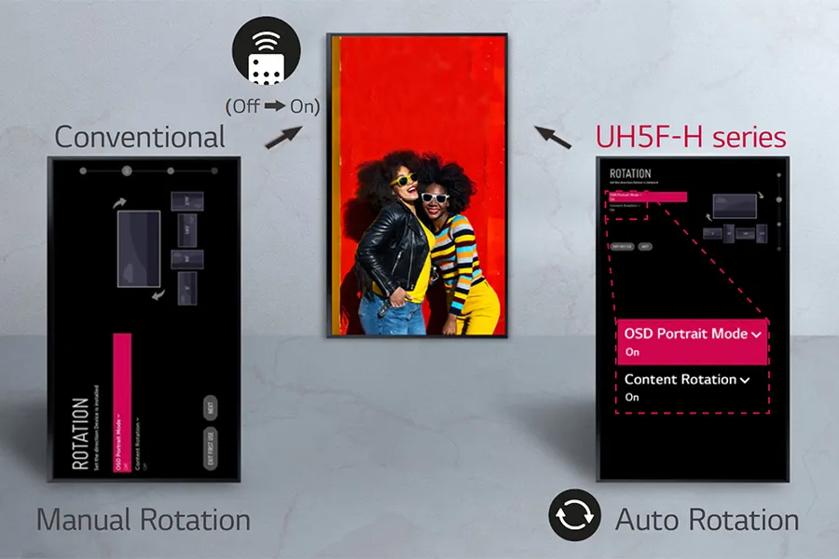

Auto Screen Rotation
This series automatically detects its orientation (landscape or portrait mode) in the initial installation step. Manual rotation set-up isn't required. The direction of the on screen display and background contents will be set when you turn on the display.

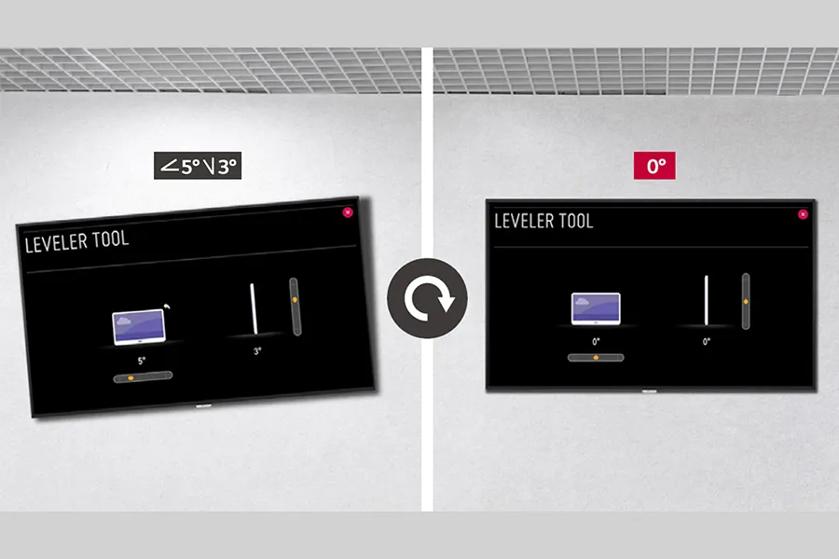

Fine Adjustment
The UH5F-H series is equipped with a "horizontal sensor" which shows users how the device is tilted, so that it can be precisely installed.
WebOS™ Smart Signage Platform
Built-in Quad Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS™ platform enhances user convenience with intuitive graphical user interface (GUI) and access to an advanced ecosystem of third-party development applications.
Compatible with AV Control System
This signage has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.*
*Network based control.

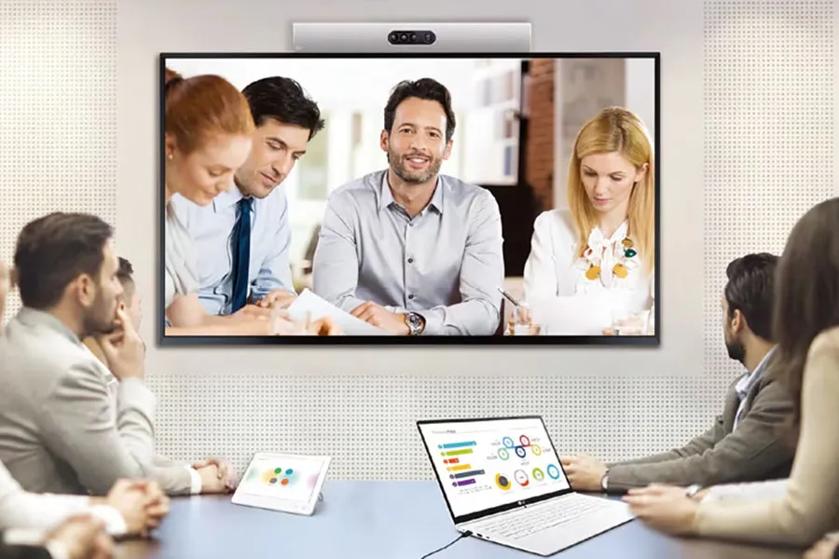

Compatible with Video Conference System
This series has certified its compatibility with Cisco System that offers powerful and integrated control for a smart video conference.*
*Using an HDMI cable connection.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
Yes (x4)
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (x4)
PM mode
Yes
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
Yes
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
165W
Power Supply
AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
96W
BTU Heat Generation (Max.)
563 BTU
BTU Heat Generation (Typ.)
409 BTU
Power Consumption (Typ.)
120W
Mechanical
Bezel Color
Black
Bezel Width
Not Available
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
T/R/L: 9.9 mm, B: 14.4 mm
Tilt (Face Down)
Yes (-30º)
Tilt (Face Up)
No
Weight
62.3 lbs / 28.2 kg
Weight Signage Box
N/A
Weight with Stand
63.4 lbs / 28.8 kg
Shipping Weight
77.2 lbs / 35.0 kg
Dimensions (W x H x D)
57.2 x 33.2 x 1.6 in / 1453.3 x 844 x 39.9 mm (with LG Logo)
Dimensions with Stand (W x H x D)
57.2 x 35.2 x 11.4 in / 1,453.3 x 893.1 x 290 mm
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
63 x 43.1 x 6.9 in / 1,600 x 1095 x 175 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
300 x 300 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
Yes
Failover
Yes
System
Operating System (OS)
webOS™ 4.1
Processor
No
Graphics
No
Storage
No
Internal Memory
8 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x3) HDMI1DMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4
IR In (3.5 mm)
Yes
DVI-D In
Yes (x1) HDCP 1.4
RGB In
No
Audio In (3.5 mm)
Yes (x1)
DisplayPort In
Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x2) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
Yes (x1)
DisplayPort Out
Yes (x1) input : HDMI1 / 2 / DVI / DP / USB-C / OPS
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
Stand (ST-653T), OPS Kit (KT-OPSF)
UPC
7 19192 63933 1
Basic Accessories (included)
Remote Controller (include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
IP5X
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
Yes
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
65"
Panel Technology
IPS
Backlight Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
Brightness (Typ.)
500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1100:1
Dynamic Contrast Ratio
1000000:1
Color Gamut
BT709 95%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
8 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
28%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
All image simulations are for illustration purposes only.
