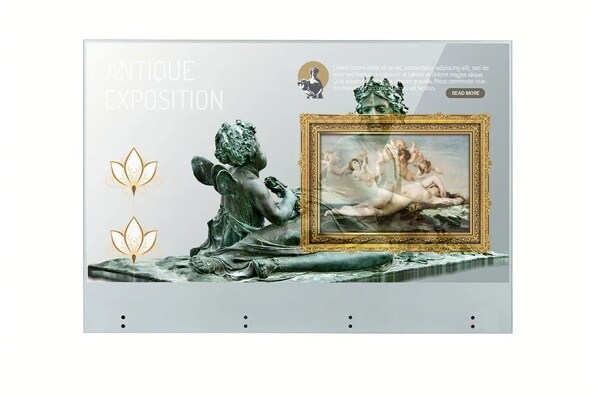

55" FHD Transparent OLED Touch
DISCONTINUED
55EW5TK-A
55" FHD Transparent OLED Touch
Key Features
All Specs
- Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
- Transparency(Typ.) : 33% (Set)
- Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
- Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
- P-Cap Touch, Tempered Front Glass (3T)
Compare
Specs & Resources
Language
Language
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
Basic
Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, MCX / Harness Cables (3,000 mm ×4 ea/ 3,000 mm ×2 eafor Connection between Panel and Signage Box), HDMI Cable (3 M) Micro to A type USB Cable (3 M (TBD) for Connection between Touch and Signage box), A to B Type USB Cable (Touch Out), Screw (M4 ×L22, 12 ea/ M4 Nut 12 ea/ M3 ×L5.5, 8 ea/ M3 ×L3.5, 20 ea), Shield Cover Assy’, Rubber Damper 4 ea, Touch Cable Holder 2 ea, MCX Cable Holder 4 ea
SPECIAL FEATURE
Touch - Available Object Size for Touch
≥ 0.12 mm
Touch - ReponseTime
≤ 120 ms
Touch - Accuracy
3.5 mm
Touch - Interface
USB 2.0
Touch - Protection Glass Thickness
3.0 T (Anti-Glare / Anti-Fingerprint)
Touch - Protection Glass Transmission
84 % (Typ.)
Touch - Operating System Support
Windows 8.1, Windows 10
Touch - Multi Touch Point
Max 10 Points
CONNECTIVITY
Input
HDMI (HDCP 1.4), DP (HDCP 1.3), RS-232C In, RJ45 (LAN), IR In (External IR Receiver), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
Output
DP Out, Audio Out, Touch USB (USB 2.0 Type B), RS-232C Out (w / IR Out), RJ45 (LAN)
POWER CONSUMPTION
Typ. / Max.
280 W / 300 W
BTU (British Thermal Unit)
955 BTU/Hr(Typ.), 1023 BTU/Hr(Max)
CERTIFICATION
EMC
FCC Class "A" / CE / KC
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
ErP / Energy Star
Yes / No
KEY FEATURE
Key Feature
Internal Memory (16 GB), Sensor (Temperature Sensor), webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rdParty Compatibility (Crestron Connected®2)), Power (PM Mode, Wake on LAN), HDMI-CEC3),SI Server Setting, Pro:Idiom
SOFTWARE COMPATIBILITY
Software Compatibility
SuperSignCMS, SuperSignControl / Control+, SuperSignMedia Editor, LG ConnectedCare⁴⁾
ENVIRONMENT CONDITIONS
Operation Humidity
10% to 80%
Operation Temperature (°C)
32°F to 104°F / 0°Cto 40°C
MECHANICAL SPECIFICATION
Bezel Width
7.9 / 7.9 / 7.9 / 144.5 mm (T/R/L/B)
Weight (Head)
12.9 kg (Head) 3.4 kg (Signage Box)
Bezel Color
Matt Silver
Monitor Dimension (W x H x D)
1,225.5 ×832.9 ×7.4 mm (Head) 782.8×238.4 ×34.7 mm (Signage Box)
POWER
Power Type
Built-In Power
Power Supply
AC 100-240 Vac, 50/60 Hz
PANEL
Panel Technology
OLED
Brightness
150 / 400 nit (APL 100% / 25%, Without Glass)
Native Resolution
1,920 x 1,080 (FHD)
Color Gamut
BT709 120%
Surface Treatment (Haze)
Hard coating (2H)
Viewing Angle (H x V)
178° x 178°
Color Depth
1.07 Billon Colors (10 bit (R))
Contrast Ratio
150,000:1
Response Time
1ms(G to G), 8 ms(MPRT)
Screen Size
55"
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portrait / Landscape
Yes / Yes
Dynamic CR¹⁾
No
