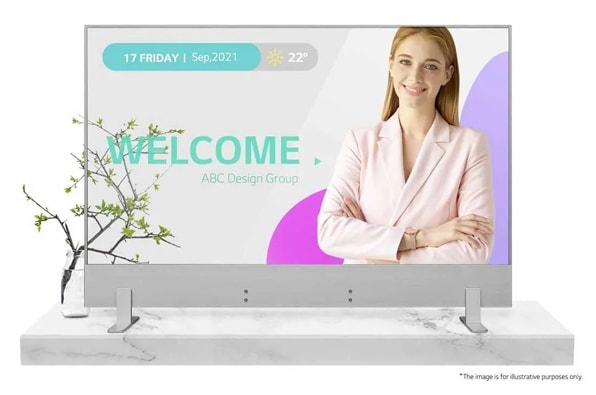

55” FHD Transparent OLED Digital Signage with Tile Mode, webOS™ 4.0, Pro:Idiom™, Wake on LAN, Protective Tempered Glass
DISCONTINUED
55EW5G-V
55” FHD Transparent OLED Digital Signage with Tile Mode, webOS™ 4.0, Pro:Idiom™, Wake on LAN, Protective Tempered Glass
Key Features
All Specs
- FHD (1,920x1,080) OLED
- Transparency (Typ.) 38%
- webOS™ 4.0
- Protective Tempered Glass
- Tile Mode Setting
- SuperSign CMS
Compare
Specs & Resources
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
No
Network Ready
No
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
No
Video Tag
Yes (4)
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
Yes
External Input Rotation
Yes
No Signal Image
No
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
280W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
Not Available
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
No
BTU Heat Generation (Max.)
955.39 BTU
BTU Heat Generation (Typ.)
853.03 BTU
Power Consumption (Typ.)
250W
Mechanical
Bezel Color
Transparent
Bezel Width
Not Available
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
T/R/L: 7.9 mm, B: 121.7 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
25.8 lbs / 11.7 kg
Weight Signage Box
25.8 lbs / 11.7 kg
Weight with Stand
N/A
Shipping Weight
51.1 lbs / 23.2 kg
Dimensions (W x H x D)
28.2 x 31.9 x 0.3 in / 1,225.5 x 810.1 x 6.6 mm
Dimensions with Stand (W x H x D)
Not Available
Dimensions with Pemnut (W x H x D)
No
Dimensions Signage Box (W x H x D)
30.8 x 9.4 x 1.4 in / 782.8 x 238.4 x 34.7 mm
Shipping Dimensions (W x H x D)
53.0 x 36.2 x 8.1 in / 1,345 x 920 x 207 mm
Conformal Coating (Power Board)
No
Handle
No
VESA™ Standard Mount Interface
No
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
3.0 mm
Degree of Protection
No
Tempered / Chemical Strengthening
Chemical Strengthening
Anti-Reflective
Yes
Anti-Reflective Coating
No
Anti-Reflective Film
Yes
Infrared - Resistance (IR)
No
Shatter-Proof
Yes
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
No
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
No
Play Via URL
No
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.0
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
No
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x1) HDCP 1.4
IR In (3.5 mm)
Yes (x1), External IR Receiver
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
Yes (x1) HDCP 1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
No
USB Type-A In
Yes (x2) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
Yes (x1)
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
Sharing RS-232C Out
RJ45 (LAN) Out
Yes (x1)
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
Yes (input HDMI, DP / Output DP)
Built-in Wi-Fi
No
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
Optional Accessories
Stand (ACC-S-EW5F, 2 Pole) Tiling (ACC-V-EW5F)
UPC
1 95174 01550 6
Basic Accessories (included)
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, 3.5mm to RS232C Adapter, MCXarness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy', Rubber Damper 4EA, MCX cable Holder 4ea
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
55"
Panel Technology
OLED
Backlight Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120 Hz
Brightness (Typ.)
150 / 400 nits (APL 100% / 25%, Without Glass)
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
150000:1
Dynamic Contrast Ratio
No
Color Gamut
BT709 120%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
1 ms
Moving Picture Response Time
8 ms
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
5H
Reflectance (Typ.)
No
Operation Hours (Hours per Day / Days per Week)
18/7 (Moving Content Only)
Lifetime
Up to 30,000 Hrs
Orientation
Portrait / Landscape
Transparency
38% (SET)
QWP (Quarter Wave Plate)
No
