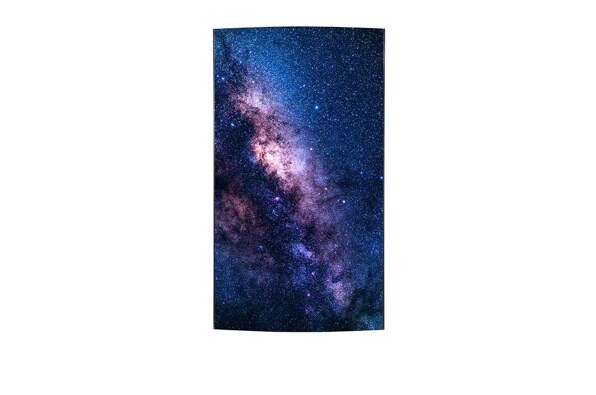

55” FHD Portrait Curvable Open Frame OLED Digital Signage with webOS™ 4.0, SuperSign CMS, Pro:Idiom DRM , & LAN Daisy Chain

Name: 55” FHD Portrait Curvable Open Frame OLED Digital Signage with webOS™ 4.0, SuperSign CMS, Pro:Idiom DRM , & LAN Daisy Chain
Brand: LG Electronics
SKU: 55EF5G-P
Availability: Discontinued

DISCONTINUED

55EF5G-P

55” FHD Portrait Curvable Open Frame OLED Digital Signage with webOS™ 4.0, SuperSign CMS, Pro:Idiom DRM , & LAN Daisy Chain

Key Features

All Specs

Brightness: 150/400nit (APL 100%/25%)
Depth: 12.4 mm (Head Only)
Curvature: ~1,000R(Concave/convex)
Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

Compare

Specs & Resources

Collapse All

KEY FEATURES

Internal Memory

16GB

Built-in Wi-Fi

Temperature Sensor

webOS ver.

webOS 4.0

Local Contents Scheduling

Yes

Group Manager

Yes

USB Plug & Play

Yes

Fail over

Yes

RS-232C Sync

Yes

Local Network Sync

Yes

Video Tag

Yes (4)

Screen Rotation

Yes

External Input Rotation

Yes

Gapless Playback

Yes

Tile Mode Setting

Yes

Setting Data Cloning

Yes

SNMP

Yes

ISM Method

Yes

Auto Set ID

Yes

Status Mailing

Yes

Control Manager

Yes

Crestron Inside

Yes

PM mode

Yes

Wake on LAN

Yes

HDMI-CEC

Yes

SI Server Setting

Yes

Pro:Idiom DRM

Yes

CONNECTIVITY

Audio Out

Yes (1)

RS232C In

Yes (1)

IR In

Yes (1), External IR Receiver

USB in

USB 2.0 Type A (2)

DP Out

Yes (1)

RS232C OUT

Yes (1) (w/ IR out)

HDMI

Yes (1), HDCP1.4

Yes (1), HDCP1.3

RJ45 (LAN)

Yes (1)

LG SOFTWARE & SERVICES*

SuperSign CMS

Yes (v3.0)

SuperSign Control / Control+

Yes (v1.7/v1.9)

SuperSign Media Editor

Yes (v3.7)

Available for an additional fee.

LG ConnectedCare

Yes (v2.9)

SuperSign White Balance

Yes (v3.7.15)

Warranty & Other

Warranty

3 Year Limited

FCC (Regulatory)

Class "A"

CE (Regulatory)

Yes

Basic Accessories

Remote Control (battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, DP Cable (2m), LAN Cable (2m), RS232 Cable (4P-4P,1.5m), LC Cable (VLC,3m), Tape (4ea for Cabling), Screws (M3xL4.5,30ea/M3xL5.5,50ea/M3x3.5,10ea), Shield Cover Assembly, Tiling Set Fixer 6ea, Flex Bar 2ea

IEC/EN/UL 60950-1 (EMC)

Yes

ErP (Environmental)

Yes

POWER

Power Type

Built-In Power

Power Supply

100-240 Vac, 50/60Hz

DPM

Power off

0.5W

Typ. Power Consumption

309W

Max. Power Consumption

318W

PANEL

Lifetime (Typ.)

30,000 Hrs

Viewing Angle(H x V)

178° x 178°

Panel Technology

OLED

Aspect Ratio

16:9

Brightness

400nits

Native Resolution

1920 x 1080 (Full HD)

Color Gamut

BT709 120%

Surface Treatment (Haze)

Hard coating (2H)

Color Depth

1.07 Bilion colors

Contrast Ratio

150,000:1

Screen Size

55"

Refresh Rate

120Hz

Operation Hours (Hours/Day)

18/7 (Non-Static Content Only)

Portrait / Landscape

Yes/Yes

Response Time (G to G)

1ms

MECHANICAL

Bezel Color

Black

Shipping Weight

37.5 lbs/17.0kg (Landscape Model), 38.8 lbs/17.6kg (Portrait Model)

Operation Temperature

32°F to 104°F, 0°C to 40°C

Operation Humidity

10% to 80%

Shipping Dimensions (W x H x D)

53.5 x 33.1 x 9.9 in, 1360 x 842 x 252 mm

Weight - Signage box

7.7 lbs, 3.5kg

Dimensions - Signage Box (W x H x D)

16.3 x 13.9 x 2.3 in, 413 x 353 x 57.3 mm

Bezel Width - Off Bezel (T/R/L/B)

0.6/6.7/6.7/0.6 mm (Landscape Model), 0.6/6.7/6.7/0.6 mm (Portrait Model)

Bezel Width - On Bezel (T/R/L/B)

5.0/7.6/7.6/10.6 mm (Landscape Model), 5.0/13.2/7.8/5.0 mm (Portrait Model)

Weight - Screen

12.8 lbs/5.8kg (Landccape Model), 15.4 lbs/7.0kg (Portrait Model)

Dimensions - Landscape Model with Pemnut (W x H x D)

48.2 x 27.4 x 1.5 in, 1224.9 x 696.2 x 38.0 mm

Dimensions - Landscape Model without Pemnut (W x H x D)

48.2 x 27.4 x 0.5 in, 1224.9 x 696.2 x 12.4 mm

Dimensions - Portrait Model with Pemnut (W x H x D)

27.6 x 48.0 x 1.5 in, 701.4 x 1219.7 x 38.0 mm

Dimensions - Portrait Model without Pemnut (W x H x D)

27.6 x 48.0 x 0.5 in, 701.4 x 1219.7 x 12.4 mm
