CREATE a MyLG Business Account to see special pricing.

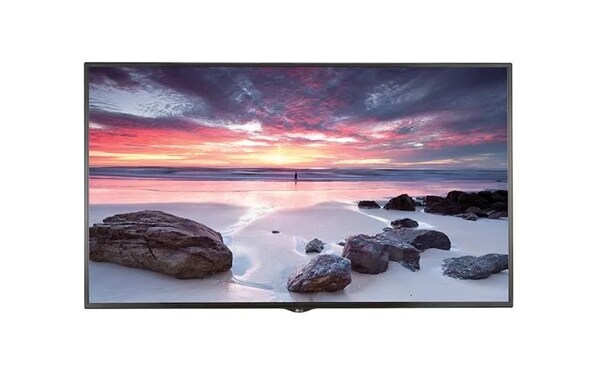

55" class (54.6” diagonal) UH5B Ultra HD Smart Platform

Name: 55" class (54.6” diagonal) UH5B Ultra HD Smart Platform
Brand: LG Electronics
SKU: 55UH5B
Availability: Discontinued

DISCONTINUED

55UH5B

55" class (54.6” diagonal) UH5B Ultra HD Smart Platform

Key Features

All Specs

ULTRA HD RESOLUTION
HIGH EFFICIENCY VIDEO CODING
UP-SCALING AND SUPER RESOLUTION
Mirroring

Compare

Specs & Resources

Collapse All

INPUT

HDTV Formats

HDMI : 720p, 1080i, 1080p

IR receiver

Yes (1)

HDMI

Yes (1), HDMI /HDCP2.2

Yes (1), DP /HDCP1.3

Pixel Sensor

Yes (1)

RS232C In

Yes (1)

RJ35

Yes (1)

DVI-D

Yes (1), HDCP2.2

Audio In

Yes (1), RGB/DVI

RGB

Yes (1)

USB(USB3.0)

Yes (1)

SD Card

Yes (SDHC/Full Size)

AUDIO

Sound Mode

Standard, Music, Cinema, Sports, Game

Audio Power

20W (10W x 2) for External Speaker

Clear Voice II

Yes

Balance

Yes

Equalizer

Yes

Virtual Surround Plus

Yes

OTHER

UPC

7 19192 19846 3

OUTPUT

External Speaker Out

Yes (L/R), 6 ohm

DP Out

Yes (1), SST/DP1.2a

Audio Out

Yes (1)

RS232C OUT

Yes (1)

ENVIRONMENTAL CONDITIONS

Operation Humidity

10 % to 80 %

Operation Temperature

32 °F to 104 °F

SOFTWARE COMPATIBILITY

SuperSign-c

Yes

SuperSign-w lite

Yes

SPECIAL FEATURES

USB Cloning

Logo image download, Sent to USB, Receive from USB

HDMI-CEC

Yes

Lock Mode

USB

Tile Mode

Yes (Up to 15x15)

ISM Method

Normal, White Wash, Color Wash, User image, User Video, Orbiter, Inversion, Washing Bar * Scheduling is supported additionally

DPM Select

Yes

Source Selection

RGB, HDMI, DVI, DP, OPS, USB, SD Card

Time

Clock, On/Off Timer, Auto Off, Automatic Standby

Input Label

Yes (PC / DTV)

Temperature Sensor

Yes

File Play with USB

Yes

Internal Memory

8GB (System 4GB + Available 4GB)

Language (OSD)

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek

Cooling FAN

Brightness / Contrast / Backlight

Yes

Position / Size

Yes

Auto Config / Phase

Yes

Advanced

Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma

Natural Mode @ Tile Mode

Yes

Firmware Update (LAN)

Yes

Overlay touch

Yes ('15.May)

Power on Default

Standby, PWR, LST

Digital Audio Input

Yes

Pivot Mode

Yes

OSD Portrait Mode

0, 90, 270

intelligent Auto

Yes

Password Change

Yes

Set ID Setup

Manual, Auto

Configuration Setup

USB auto Playback

Fail Over

USB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

Calibration mode

Yes

Content scheduling

USB, Internal memory, SD Card

Wi-Fi

802.11n combo built-in

Key Operation

IR operation, Local key operation

DST

Yes

DPM Wake Up

(Analog: Sync only, Digital: Clock / Clock+Data selectable)

PM Mode

Yes

Contents Rotation

0,90, 270

Sync Mode

Time sync, Content sync

Local Time Auto Setting

Yes

OPS Power Control

Sync On, Sync On/Off, Disable

Check Screen

Yes

Auto Brightness Sensor

Yes

Beacon

On/Off

Media Share

Mirroring, SoftAP

Embedded Template

Yes

Still Image

Yes

File Play with USB: MS Office

PPT / PPS / PPTX / XLS / XLSX / DOC / DOCX (MS Office should be installed to support playback)

CABINET

Bezel Color

Black

VESA™ Compatible

300 mm x 300 mm

Carton Weight

45.2lbs

Weight

36.6lbs

Bezel Width

12.1mm (T), 12.6mm (R/L), 15.7mm (B)

(W x H x D)

48.8” x 28.6” x 1.5”

Carton (WxHxD)

52.4” x 31.8” x 6.7”

w/Optional Stand (WxHxD)

48.8” x 31.1” x 11.7”

w/Optional Stand Weight

39.9lbs

w/Optional Stand & Speakers (WxHxD)

48.8” x 31.1” x 11.7”

w/Optional Stand & Speakers Weight

41.4lbs

WARRANTY

Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

MEDIA PLAYER COMPATIBILITY

External Media Player

Yes (MP500/MP700)

OPS Type Compatible

Yes

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power off

0.5W

DPM

0.5W

Typical

116W

PANEL

Panel Size

49" class (48.5" diagonal)

Contrast Ratio

1,000:1

Brightness

500cd/m2

Panel Technology

IPS

Native Resolution

3,840 x 2,160 (UHD)

Dynamic CR

4,000,000:1

Viewing Angle (H x V)

178°/178°

Surface Treatment

Low Haze 1%

Orientation

Portrait & Landscape

Color Depth

1.06 Billion

Pixels (H x V x 3)

24,883,200

Color Gamut

68%

Life time (Typ.)

50,000 Hrs

Operation Hours

24 Hr

ACCESSORIES

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Speaker (SP-5200), Stand (ST-651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)
