Built-in Touch Display
DISCONTINUED

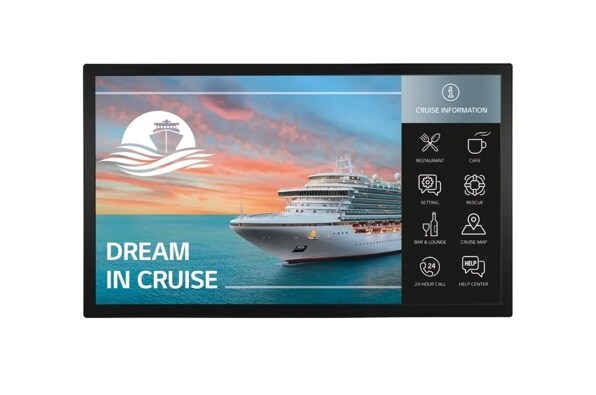

55TC3CD-B
Built-in Touch Display
Key Features
All Specs
- Brightness(Typ.): 500 cd/m²
- Touch Type: P-Cap(Ag Metal Mesh)
- Touch Point: Max. 40 points
- Interface: HDMI (2)/ DP/ DVI-D/ USB/ Touch USB/ SD Card/ RS232C/ RJ45/ Audio/ External Speaker(L/R)/ IR & Light / Pixel Sensor
Compare
Specs & Resources
ACCESSORY
Basic
Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable(2M), Regulation Book, Phone to RS232C Gender, IR Dongle, Touch USB Cable
Optional
Speaker (SP-5200), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit(KT-OPSA), Wi-Fi Dongle(AN-WF500)
CONNECTIVITY
Input
HDMI (2), DP, DVI-D, Audio, USB 3.0, USB 2.0 (Type A for Wi-Fi Dongle), SD Card
Output
DP, Audio, External Speaker (L/R 6ohm), Touch USB 2.0
External Control
RS232C In/Out, RJ45 In, IR Receiver In, Pixel Sensor In
POWER CONSUMPTION
Smart Energy Saving
80 W
Typ./Max.
140 W/ 116 W
ENVIRONMENTAL CONDITIONS
Operation Temperature
0°C to 40°C
Operation Humidity
10% to 80%
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign CMS
Content Management Software
SuperSign C* * Software compatibility may chnage over time. Please contact LG sales representative for details.
STANDARD CERTIFICATION
ErP / Energy Star
N/A / Yes (Energy Star 7.0)
Safety
UL/ cUL
EMC
FCC Class "A"
PANEL
Native Resolution
3,840 x 2,160 (UHD)
Screen Size
55"
Brightness (Module, Typ., cd/m²) w/o Protection Glass
500
PHYSICAL SPECIFICATION
Bezel Width
32.95/ 36.55/ 32.4/ 32.4 mm(T/B/R/L)
VESA™ Standard Mount Interface
300 x 300mm
Weight (Packed)
34.9kg
Dimensions (Carton) (W x H x D)
1,406 x 203 x 807 mm
Weight (Head)
29.1 kg
Dimensions (Monitor) (W x H x D)
1,276.4 x 751.9 x 63.9mm
TOUCH
Accuracy
2 mm + 0.2 mm
Touch Type
P-Cap
Protection Glass Thickness
3.2T (Anti-Glare)
Available object size for touch
Ø6 mm†
Multi touch point
Max. 40 Points
Interface
USB 2.0
All image simulations are for illustration purposes only.
