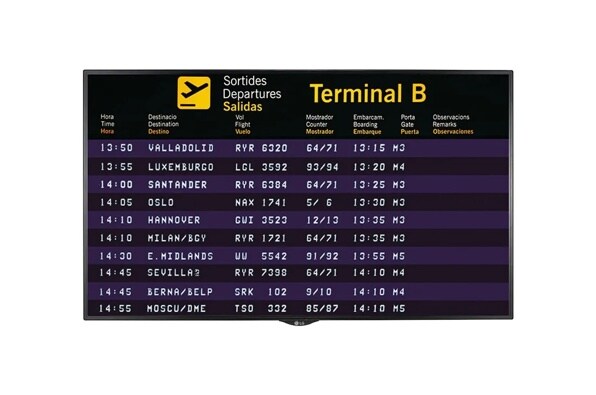

SH7DB Series FHD Digital Signage Display TV
DISCONTINUED
55SH7DB-M
SH7DB Series FHD Digital Signage Display TV
Key Features
All Specs
- Brightness(Typ.): 700 cd/m²
- Bezel : Top/Left/Right/Bottom 7.4mm
- Depth : 31.7mm
- Special : Wi-Fi Dongle Ready, SuperSign W/C/M
- Local Time Auto Setting
- DP/HDMI/DVI/RGB/RS232C/RJ45/IR (DP1.2 daisy-chain)
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Monitor Dimension (W x H x D)
109.5cm x 63.7cm x 3.2cm
Weight (Head)
27.0kg
Bezel Width
7.4mm (T/L/R/U even)
VESA TM Standard Mount Interface
400mm x 400mm
CONNECTIVITY OUTPUT
External Control (RS232C OUT)
Yes (1)
Audio Out
Yes
DP Out
Yes
External Speaker Out
L / R (1)
SOFTWARE COMPATIBILITY
SuperSign W-Lite
Yes
SuperSign-C
Yes
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes (MP500/MP700)
OPS Type Compatible
Yes
PANEL
Panel Size
55” Class (54.64” diagonal)
Brightness
700 cd/m^2
Resolution
1,920 x 1,080 (FHD)
ACCESSORIES
Basic
Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
Optional
SP-2100 (External Speaker), ST-200T, LSW440S, AN-WF500 (WiFi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor)
GENERAL
Region
US
CONNECTIVITY INPUT
External Control (Pixel Sensor(Optional))
Yes
Analog (RGB)
Yes (1)
External Control (RS232C IN)
Yes (1)
USB
Yes (1)
DP
Yes (1)
External Control (RJ45)
Yes (1)
External Control (IR receiver)
Yes (1)
Audio
Yes x1
HDMI
Yes (1)
DVI
Yes x1
All image simulations are for illustration purposes only.
