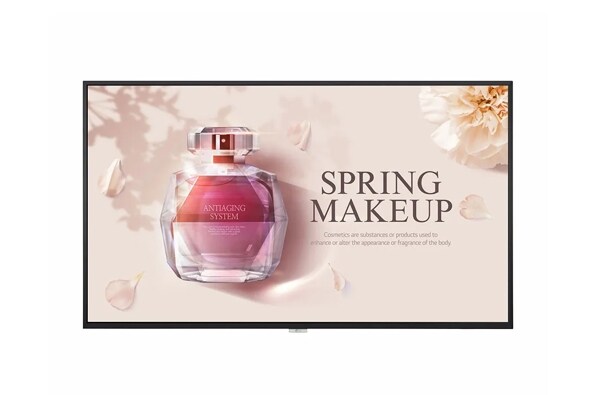

49” UH7F-H Series IPS UHD Slim Digital Display with webOS™ version 4.1, IP5x Certification, Non-Glare Coating, Detachable Logo & Built-In Speakers

Name: 49” UH7F-H Series IPS UHD Slim Digital Display with webOS™ version 4.1, IP5x Certification, Non-Glare Coating, Detachable Logo & Built-In Speakers
Brand: LG Electronics
SKU: 49UH7F-H
Availability: Discontinued

DISCONTINUED

49UH7F-H

49” UH7F-H Series IPS UHD Slim Digital Display with webOS™ version 4.1, IP5x Certification, Non-Glare Coating, Detachable Logo & Built-In Speakers

Key Features

All Specs

Ultra HD Resolution with IPS Panel Technology and 700 nits Brightness (Typ.)
Non-Glare Surface Treatment (Haze - 28%)
Narrow Bezel & Slim Depth - 9.9 mm (T/R/L), 14.4 mm (B)
Detachable Logo & Built-In Speakers
IP5x Certification
30° Tilting Installation

Compare

Specs & Resources

Collapse All

CONNECTIVITY

USB

USB2.0 Type A (1)

Audio Out

Yes (1)

RS232C In

Yes (1), 4-pin 3.5mm

IR In

Yes (1)

HDMI

Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4

RJ45 (LAN)

Yes (1)

RS232C Out (External Control)

Yes (1), 4-pin 3.5mm

Warranty & Other

Warranty

3 Year Limited

FCC (Regulatory)

CB/NRTL

CE (Regulatory)

FCC Class "A"/CE/KC

Basic Accessories

Remote Control (x2 Batteries), Power Cord, Quick Service Guide, HDMI Cable, Regulation Book, Phone to RS232C Adapter

Optional Accessories

Stand (ST-653T), Wall bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSF)

ErP (Environmental)

Yes

Energy Star (Environmental)

8.0

LG SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes/Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

Signage 365 Care

Yes

ENVIRONMENT & POWER

Operation Temperature

32°F to 104°F/0°C to 40°C

Operation Humidity

10% to 80%

Power Supply

100-240Vac, 50/60Hz

Power Type

Built-In Power

Power Consumption (Typ.)

100W

Power Consumption (Max.)

145W

Smart Energy Saving

75W

DPM

Less than 0.5W

Power off

Less than 0.5W

PANEL

Panel Technology

IPS

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Lifetime

50,000Hrs (Min.)

Color Gamut

BT709 95%

Surface Treatment (Haze)

28%

Viewing Angle (H x V)

178° x 178°

Dynamic CR

500,000:1

Color Depth

10 bit, 1.07 Billion colors

Contrast Ratio

1,000:1

Response Time

8ms

Back Light Type

Edge

Refresh Rate

60Hz

Operation Hours (Hours / Day)

24/7

Brightness (Typ.)

700nits

Portrait / Landscape

Yes/Yes

Diagonal

49"

MECHANICAL

Weight with Stand

35.3 lbs/16.0kg

Bezel Color

Black

Bezel Width

T/R/L: 9.9mm, B: 14.4mm

Monitor Dimensions with Stand (W x H x D)

43.3 x 27.3 x 11.4 in, 1098.6 x 694.3 x 290.0 mm

Shipping Weight

41.4 lbs/18.8kg

VESA™ Standard Mount Interface

300 x 300

OPS type compatible

Yes w/OPS Kit

Weight

34.0 lbs/15.4kg

Shipping Dimensions (W x H x D)

47.1 x 30.5 x 6.4 in, 1197.0 x 775.0 x 162.0 mm

Dimensions (W x H x D) (including LG Logo)

43.3 x 25.4 x 1.6 in, 1098.6 x 644.5 x 39.9 mm

Tilt (Facedown)

Max 30°

IP Rating

IP5X

FEATURES

Smart Energy Saving

Yes

Internal Memory

8GB

Local Key Operation

Yes

webOS ver.

webOS 4.1

USB Plug & Play

Yes

Fail over

Yes

Screen Share

Yes

Video Tag

Yes (4)

Play via URL

Yes

Gapless Playback

Yes

Setting Data Cloning

Yes

SNMP

Yes

ISM Method

Yes

Auto Set ID

Yes

Status Mailing

Yes

Control Manager

Yes

PM mode

Yes

Wake on LAN

Yes

Beacon

Yes

HDMI-CEC

Yes

SI Server Setting

Yes

webRTC

Yes

Pro:Idiom

Yes

Built-in Wi-Fi

Yes

Temperature Sensor

Yes

Auto Brightness sensor

Yes

Booting Logo Image

Yes

No Signal Image

Yes

RS-232C Sync

Yes

Local Network Sync

Yes

PBP

Yes (4)

Screen Rotation

Yes

External Input Rotation

Yes

Tile Mode Setting

Yes (Max. 15 x 15)

Crestron Inside

Yes

CMS - Local Contents Scheduling

Yes

CMS - Group Manager

Yes

Network Ready

Yes

Acceleration (Gyro) Sensor

Yes

PIP

Yes

CONNECTIVITY

USB

USB2.0 Type A (1)

Audio Out

Yes (1)

RS232C In

Yes (1), 4-pin 3.5mm

IR In

Yes (1)

HDMI

Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4

RJ45 (LAN)

Yes (1)

RS232C Out (External Control)

Yes (1), 4-pin 3.5mm

Warranty & Other

Warranty

3 Year Limited

FCC (Regulatory)

CB/NRTL

CE (Regulatory)

FCC Class "A"/CE/KC

Basic Accessories

Remote Control (x2 Batteries), Power Cord, Quick Service Guide, HDMI Cable, Regulation Book, Phone to RS232C Adapter

Optional Accessories

Stand (ST-653T), Wall bracket (LSW350B), VESA Adapter (AMB330S), OPS Kit (KT-OPSF)

ErP (Environmental)

Yes

Energy Star (Environmental)

8.0

LG SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes/Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

Signage 365 Care

Yes

ENVIRONMENT & POWER

Operation Temperature

32°F to 104°F/0°C to 40°C

Operation Humidity

10% to 80%

Power Supply

100-240Vac, 50/60Hz

Power Type

Built-In Power

Power Consumption (Typ.)

100W

Power Consumption (Max.)

145W

Smart Energy Saving

75W

DPM

Less than 0.5W

Power off

Less than 0.5W

PANEL

Panel Technology

IPS

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Lifetime

50,000Hrs (Min.)

Color Gamut

BT709 95%

Surface Treatment (Haze)

28%

Viewing Angle (H x V)

178° x 178°

Dynamic CR

500,000:1

Color Depth

10 bit, 1.07 Billion colors

Contrast Ratio

1,000:1

Response Time

8ms

Back Light Type

Edge

Refresh Rate

60Hz

Operation Hours (Hours / Day)

24/7

Brightness (Typ.)

700nits

Portrait / Landscape

Yes/Yes

Diagonal

49"

MECHANICAL

Weight with Stand

35.3 lbs/16.0kg

Bezel Color

Black

Bezel Width

T/R/L: 9.9mm, B: 14.4mm

Monitor Dimensions with Stand (W x H x D)

43.3 x 27.3 x 11.4 in, 1098.6 x 694.3 x 290.0 mm

Shipping Weight

41.4 lbs/18.8kg

VESA™ Standard Mount Interface

300 x 300

OPS type compatible

Yes w/OPS Kit

Weight

34.0 lbs/15.4kg

Shipping Dimensions (W x H x D)

47.1 x 30.5 x 6.4 in, 1197.0 x 775.0 x 162.0 mm

Dimensions (W x H x D) (including LG Logo)

43.3 x 25.4 x 1.6 in, 1098.6 x 644.5 x 39.9 mm

Tilt (Facedown)

Max 30°

IP Rating

IP5X

FEATURES

Smart Energy Saving

Yes

Internal Memory

8GB

Local Key Operation

Yes

webOS ver.

webOS 4.1

USB Plug & Play

Yes

Fail over

Yes

Screen Share

Yes

Video Tag

Yes (4)

Play via URL

Yes

Gapless Playback

Yes

Setting Data Cloning

Yes

SNMP

Yes

ISM Method

Yes

Auto Set ID

Yes

Status Mailing

Yes

Control Manager

Yes

PM mode

Yes

Wake on LAN

Yes

Beacon

Yes

HDMI-CEC

Yes

SI Server Setting

Yes

webRTC

Yes

Pro:Idiom

Yes

Built-in Wi-Fi

Yes

Temperature Sensor

Yes

Auto Brightness sensor

Yes

Booting Logo Image

Yes

No Signal Image

Yes

RS-232C Sync

Yes

Local Network Sync

Yes

PBP

Yes (4)

Screen Rotation

Yes

External Input Rotation

Yes

Tile Mode Setting

Yes (Max. 15 x 15)

Crestron Inside

Yes

CMS - Local Contents Scheduling

Yes

CMS - Group Manager

Yes

Network Ready

Yes

Acceleration (Gyro) Sensor

Yes

PIP

Yes
