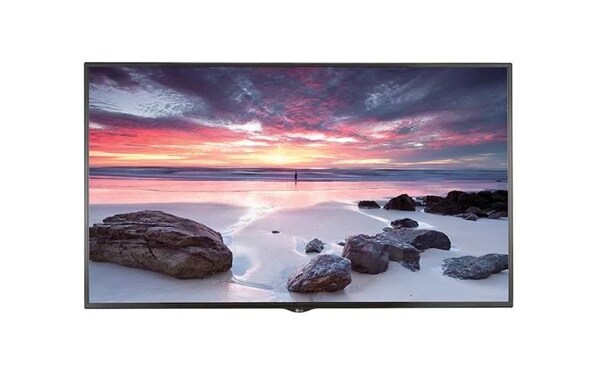

49" class (48.5" diagonal) UH5B Ultra HD Smart Platform

Name: 49" class (48.5" diagonal) UH5B Ultra HD Smart Platform
Brand: LG Electronics
SKU: 49UH5B-B
Availability: Discontinued

DISCONTINUED

49UH5B-B

49" class (48.5" diagonal) UH5B Ultra HD Smart Platform

Key Features

All Specs

ULTRA HD RESOLUTION
HIGH EFFICIENCY VIDEO CODING
UP-SCALING AND SUPER RESOLUTION
Mirroring

Compare

Specs & Resources

Collapse All

INPUT

IR receiver

Yes (1)

Pixel Sensor

Yes (1)

RJ35

Yes (1)

SD Card (Full Size)

Yes (SDHC/Full Size)

USB3.0

Yes (1)

Yes (1), DP /HDCP1.3

RS232C

Yes (1)

DVI-D

Yes (1), HDCP2.2

Analog RGB

Yes (1)

HDTV Formats

HDMI : 720p, 1080i, 1080p

HDMI

Yes (1), HDMI /HDCP2.2

PHYSICAL SPECIFICATIONS

Monitor w/opt. Stand + Speaker Dimensions (W x H x D)

43.4” x 28.1” x 11.7”

Monitor Weight w/opt Stand + Speaker

34.2lbs

Carton Dimensions (W x H x D)

47.1” x 29.9” x 6.5”

Weight

29.3lbs

Monitor Dimension (W x H x D)

43.4” x 25.5” x 1.5”

Bezel Color

Black

Monitor Weight w/opt. Stand

32.6lbs

Bezel Width

11.9mm (T), 12.4mm (R/L), 15.5mm (B)

VESA TM Standard Mount Interface

300mm x 300mm

Monitor w/opt. Stand Dimensions (W x H x D)

43.4” x 28.1” x 11.7”

Weight (Carton)

36.6lbs

AUDIO

Sound Mode

Standard, Music, Cinema, Sports, Game

Clear Voice II

Yes

Virtual Surround Plus

Yes

Audio Power

20W (10W x 2) for External Speaker

Balance

Yes

Equalizer

Yes

OTHER

UPC

719192198456

OUTPUT

External Speaker Out

Yes (L/R), 6 ohm

RS232C OUT

Yes

Audio Out

Yes

DP Out

Yes (1), SST/DP1.2a

ENVIRONMENTAL CONDITIONS

Operating Humidity Range

10 % to 80 %

Operating Temperature Range

0°C to 40°C / 32°F to 104°F

Tile Mode

Yes (Up to 15x15)

SOFTWARE COMPATIBILITY

SuperSign W-Lite

Yes

SuperSign-C

Yes

SPECIAL FEATURES

Temperature Sensor

Yes

Firmware Update (LAN)

Yes

Password Change

Yes

Set ID Setup

Manual, Auto

Time

Clock, On/Off Timer, Auto Off, Automatic Standby

Internal Memory

8GB (System 4GB + Available 4GB)

Natural Mode @ Tile Mode

Yes

Overlay touch

Yes ('15.May)

Auto Brightness Cap Sensor

Yes

DPM Select

Yes

Brightness / Contrast / Backlight

Yes

Advanced

Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma

Still Image

Yes

Digital Audio Input

Yes

USB Cloning

Logo image download, Sent to USB, Receive from USB

Embedded Template

Yes

Calibration mode

Yes

Input Label

Yes (PC / DTV)

Language (OSD)

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek

Fail Over

USB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory

Check Screen

Yes

Lock Mode

USB

HDMI-CEC

Yes

Auto Config / Phase

Yes

Contents Rotation

0,90, 270

Pivot Mode

Yes

Intelligent Auto

Yes

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

Sync Mode

Time sync, Content sync

Key Operation

IR operation, Local key operation

ISM Method

Normal, White Wash, Color Wash, User image, User Video, Orbiter, Inversion, Washing Bar * Scheduling is supported additionally

File Play with USB

Yes

Position / Size

Yes

Power On Default

Standby, PWR, LST

Configuration Setup

USB Auto Playback

Source Selection

RGB, HDMI, DVI, DP, OPS, USB, SD Card

Wi-Fi

802.11n combo built-in

Content scheduling

USB, Internal memory, SD Card

Media Share

Mirroring, SoftAP

Energy Saving

Yes (Auto, Minimum, Medium, Maximum, Screen Off)

Cooling FAN

OSD Portrait Mode

0, 90, 270

Local Time Auto Setting

Yes

Beacon

On/Off

WARRANTY

Limited Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

POWER

Typical

100 W

Power Type

Built-In Power

Power Supply

100-240V~, 50/60Hz

Power Consumption-DPM

0.5 W

Power off

0.5W

Power Consumption-Power Off

0.5 W

PANEL

Pixels (H x V x 3)

24883200

Surface Treatment

Low Haze 1%

Lifetime (Typ.)

50,000 Hrs

Panel Technology

IPS

Aspect Ratio

16:9

Brightness

500cd/m2

Native Resolution

3,840 x 2,160 (UHD)

Color Gamut

68%

Viewing Angle (H x V)

178°/178°

Orientation

Portrait & Landscape

Color Depth

1.06 Billion

Contrast Ratio

1,000:1

Dynamic Contrast Ratio

4,000,000:1

Screen Size

49" class (48.5" diagonal)

Operation Hours

24 Hr

ACCESSORIES

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Speaker (SP-5200), Stand (ST-651T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)
