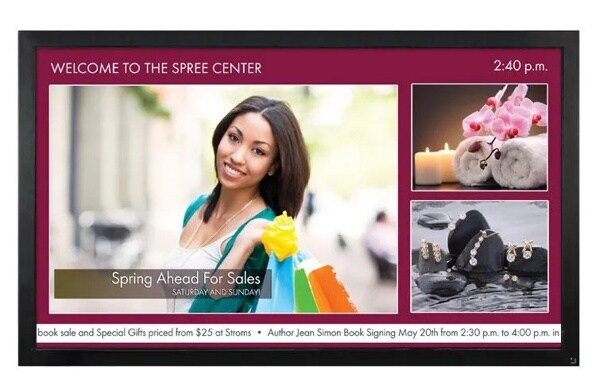

47" class (46.96" measured diagonally) IPS Edge Interactive Multi-Touch Display

Name: 47" class (46.96" measured diagonally) IPS Edge Interactive Multi-Touch Display
Brand: LG Electronics
SKU: 47VT30MS-B
Availability: Discontinued

DISCONTINUED

47VT30MS-B

47" class (46.96" measured diagonally) IPS Edge Interactive Multi-Touch Display

Key Features

All Specs

MULTI-TOUCH DISPLAY: 5 Point Multi Touch (Windows 7)
IPS In Plane Switching
Native Display Resolution 1920 X 1080 (FHD)
IR Spread Type (1mm Touch Resolution, within operation temperature)

Compare

Specs & Resources

Collapse All

OUTPUT (Rear)

Audio

Composite(RCA 1), External Speaker

Analog

RGB(1), Composite(BNC 1)

External Control

RS232C(1)

INPUT (Rear)

Audio

RGB/DVI Audio, Component Audio(RCA), Composite Audio(RCA)

HDTV Formats

Component : 720p / 1080i / 1080p HDMI :720P / 1080i / 1080p

External Control

RS232C(1), RJ45(1)

Digital

HDMI/DVI(1) with HDCP

USB

Yes(1)

Analog

RGB/DVI(3.5Φ 1) , Component(RCA 1), Composite(RCA 1)

AUDIO

Sound Mode

Standard, Music, Cinema, Sports, Game

Audio Power

20W(10W x 2)

Clear Voice II

Yes

Auto Volume

Yes

Balance

Yes

Speaker On/Off

Yes

SOFTWARE COMPATIBILITY

SuperSign Elite-S

Yes

ez-Net Manager Compatibility

Single/Group WAN control, Scheduling, Instant Messaging, Self Diagnosis(Temp, Lamp, Power Detect), Alarm Service through mailing, Easy Tile mode setup, LAN S/W upgrade via Network, USB Playback

ENVIRONMENT CONDITIONS

Operation Humidity

10% ~ 80%

Operation Temp.

0°C ~ 40°C

SPECIAL FEATURES

Smart Energy Saving

Level 1, Level 2, Level 3

Key Lock

Yes

DPM Select

Yes

Source Selection

HDMI/DVI, RGB, Component, AV, SuperSign(Option)

Time

Clock, On/Off Time, Sleep Timer, Auto Off, Power On Delay

Input Label

Yes

Temperature Sensor

Yes

File Play with USB

Yes

Position/Size

Yes

Auto Config/Phase

Yes

Auto Power/Source Memory

Yes

Brightness/Contrast/ Backlight

Yes

Power Indicatior On/Off

Yes

TOUCH

Multi touch point

Max 5 Point

Protection Glass Thickness

2.8mm (Anti Fog Flim)

Protection Glass Transmission

90%

Interface

USB 2.0 Full Speed (12Mbps)

Power

5W From Mainboard

Accuracy

1mm

Response Time

10 ms

Operating System Support

Windows XP (1Point) / Windows 7 (5 Point)

Available object size for touch

Ø8 mm

Touch type

IR(Infrared Rasys) Spread LED

CABINET

Bezel Width

34.2mm (left/right) / 34.7mm (top/bottom)

VESA™ Standard Mount Interface

800mm x 400mm

Color

Black

Monitor Weight

84.1 lbs. (head only)

Packed Weight

93.6 lbs.

Carton Dimensions (W×H×D)

55.4” x 31.9” x 11.8”

Monitor Dimension (W×H×D)

46.1” x 26.0” x 4.8”

WARRANTY

Warranty

3-Year Limited Warranty (Parts/Labor/Backlight)

MEDIA PLAYER COMPATIBILITY

Slot PC compatible (optional)

Yes

External Media Player Attachable (optional)

Yes

UPC

7 19192 19092 4

VIDEO (PC)

Max Input Resolution

1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)

Recommended Resolution

1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)

V-Scanning Frequency

56Hz ~ 75Hz (RGB), 60Hz (HDMI/DVI-D)

Pixel Frequency

148.5 MHz (RGB, HDMI/DVI-D)

Video Input

RGB, HDMI/DVI

Color temperature

Warm, Medium, Cool

Sync Compatibility

Separate / Composite / Digital

Picture mode

Vivid, Standard , Cinema, Sports, Game, Expert 1, Expert 2

H-Scanning Frequency

30 ~ 83 kHz (RGB, HDMI/DVI-D)

POWER

Power Supply

100 -240V, 50/60Hz

Power Type

Built-in Power

Power Consumption-Normal (Typical)

250W

Power Consumption-Power Off

0.5W

Power Consumption-DPMS

1W(RGB), 1W(HDMI/DVI)

STANDARD CERTIFICATION

Safety

UL, cUL, CB scheme, TUV

EMC

FCC Class "A", CE, KCC

Erp

Yes

PANEL

Panel Size

47” class (46.96” measured diagonally)

Contrast Ratio

1,300:1

Response Time

9ms (G to G), 6.5ms (WOT)

Brightness

500 cd/m^2

Panel Technology

IPS

Aspect Ratio

16 : 9

Native Resolution

1920 x 1080 (FHD)

Dynamic CR

20,000 : 1

Surface Treatment

Hard coating(3H), Anti-glare

Orientation

Portrait and Landscape

Color Depth

1.06 Billion

Viewing Angle

178°/178°

Tni

110°

Color gamut

72%

Pixels(H x V x 3)

6,220,800

ACCESSORIES

Accessory

Remote Controller, Power Cable, RGB Cable, USB Cable, Manual, ESG
