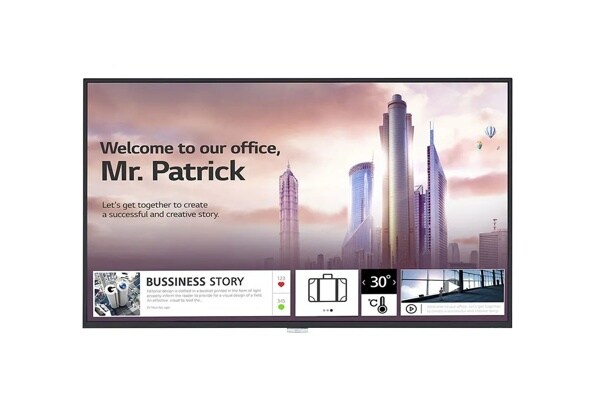

43” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible & IP5x Certified
DISCONTINUED
43UH5F-H
43” UH5F-H Series Slim UHD IPS Digital Signage with non-glare coating, webOS platform, Cisco & Crestron compatible & IP5x Certified
Key Features
All Specs
- Brightness (Typ.) : 500 cd/m²
- Surface Treatment (Haze) : 28%
- Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- 30º Tilting Installation
Compare
Specs & Resources
KEY FEATURES
Internal Memory
8GB
Built-in Wi-Fi
Yes
Temperature Sensor
Yes
Auto Brightness sensor
Yes
Local Key Operation
Yes
webOS ver.
webOS4.1
Local Contents Scheduling
Yes
Group Manager
Yes
USB Plug & Play
Yes
Fail over
Yes
Booting Logo Image
Yes
No Signal Image
Yes
RS-232C Sync
Yes
Local Network Sync
Yes
PIP
Yes
PBP
Yes (4)
Screen Share
Yes
Video Tag
Yes (4)
Play via URL
Yes
Screen Rotation
Yes
External Input Rotation
Yes
Gapless Playback
Yes
Tile Mode Setting
Yes (Max. 15x15)
Setting Data Cloning
Yes
SNMP
Yes
ISM Method
Yes
Auto Set ID
Yes
Status Mailing
Yes
Control Manager
Yes
Crestron Inside
Yes
Smart Energy Saving
Yes
PM mode
Yes
Wake on LAN
Yes
Beacon
Yes
HDMI-CEC
Yes
SI Server Setting
Yes
webRTC
Yes
Pro:Idiom
Yes
CONNECTIVITY
Audio Out
Yes
HDMI IN
Yes (3) HDMI1/HDMI2: HDCP 2.2/1.4 HDMI3: HDCP 1.4
DP IN
Yes (1), HDCP2.2/1.3
DVI-D IN
Yes (1), HDCP1.4
Audio In
Yes
RS232C IN
Yes (1), 4pin 3.5mm Jack
RJ45 (LAN) IN
Yes
IR IN
Yes
USB IN
USB2.0 Type A(1)
DP Out
Yes (1), Input: HDMI1/2/3/DVI/DP
RS232C OUT
Yes (1), 4pin 3.5mm Jack
SOUND
Speaker
Yes
LG SOFTWARE & SERVICES*
SuperSign CMS
Yes
SuperSign Control / Control+
Yes/Yes
SuperSign WB
Yes
SuperSign Media Editor
Yes
Signage365 Care
Yes
*
SuperSign CMS, Control+, White Balance and Signage365 Care are optional pay-for software/services.
Warranty & Other
Warranty
3 Year Limited
FCC (Regulatory)
Class A
CE (Regulatory)
Yes
ErP
Yes
Energy Star
Yes
Basic Accessories
Remote Control (battery 2ea), Power Cord, QSG, IR/Light receiver, DP Cable (1.8m), Regulation Book, Phone to RS232C Adapter
POWER
Power Type
Built-In Power
Power Off
0.5W
Power Supply
100-240 Vac, 50/60 Hz
DPM
0.5W
BTU (British Thermal Unit)
256 BTU/Hr (Typ.)/375 BTU/Hr (Max.)
Smart Enegy Saving
60W
Max. Power
110W
Typ. Power
75W
PANEL
Panel Technology
IPS
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Lifetime
50,000 Hrs
Color Gamut
BT709 95%
Surface Treatment (Haze)
28%
Viewing Angle (H x V)
178° x 178°
Dynamic CR
1,000,000:1
Color Depth
10 bit, 1.07 Billion colors
Contrast Ratio
1,100:1
Screen Size
43"
Back Light Type
Edge
Refresh Rate
60Hz
Operation Hours (Hours/Day)
24/7
Portrait/Landscape
Yes/Yes
Brightness (Typ.)
500nits
Response Time (G to G)
8 ms
MECHANICAL
Bezel Color
Black
Bezel Width
T/R/L: 8.4mm, B:14.4mm
Weight (Head)
24.7 lbs/11.2kg
Packed Weight
30.2 lbs/13.7kg
Monitor Dimension (W x H x D)
37.9 x 22.4 x 1.6 in/962.5 x 568.0 x 39.9 mm
Carton Dimensions (W x H x D) (Box outer size)
41.7 x 26.0 x 6.0 in/1060.0 x 660.0 x 152.0 mm
VESA™ Standard Mount Interface
200 x 200
Tilt (Face Down)
Yes (Max 30°, 30°C temp, 50% humidity)
Operation Temperature
32°F to 104°F/0°C to 40°C
Operation Humidity
10% to 80%
OPS type compatible
Yes
Handle
Yes
All image simulations are for illustration purposes only.
