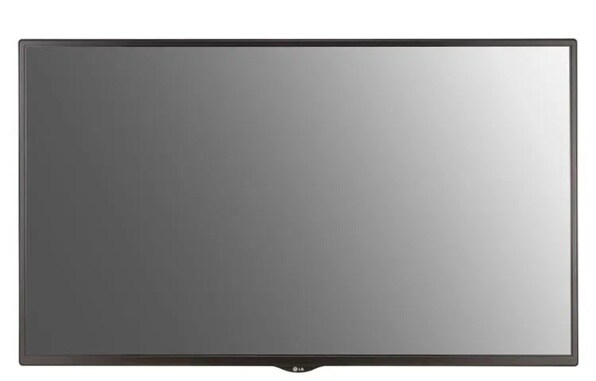

43” class (42.5” diagonal) Standard Performance Digital Signage - SM5KD Series
DISCONTINUED
43SM5KD
43” class (42.5” diagonal) Standard Performance Digital Signage - SM5KD Series
Key Features
All Specs
- IP Streaming Protocol
- Secure Communication Protocol
- Proxy Server
- Mirroring
- SoftAP
- Enhanced Connectivity
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Weight (Head + Stand)
27.6 lbs
Carton Dimensions (W x H x D)
41.4" x 25.6" x 4.7"
Monitor Dimension (W x H x D)
38.2" x 22.2" x 2.1"
Bezel Color
Black
Weight (Head)
22.2 lbs
Bezel Width
11.9 mm (T/R/L), 18 mm (B)
VESA TM Standard Mount Interface
200mm x 200mm
Monitor w/opt. Stand Dimensions (W x H x D)
38.2" x 22.2" x 2.1"
Packed Weight
27.8 lbs
CONNECTIVITY
Input
HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0
Output
DP, Audio
External Control
RS232C in/out, RJ in, IR Receiver, Pixel Sensor
ENVIRONMENTAL CONDITIONS
Operating Humidity Range
10 % to 80 %
Operating Temperature Range
0°C to 40°C / 32°F to 104°F
SOUND
Speaker
20 W (10 W x 2) for Internal Speaker (6 ohm)
WARRANTY
Yes
2-Year Limited Warranty Parts/Labor
SOFTWARE COMPATIBILITY
SuperSign Premium
Yes
SuperSign Link
Yes
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes (MP500/MP700)
OPS Type Compatible
Yes
POWER
Power Switch
No
Power Type
Built-in Power
Power Supply
100-240 V~, 50/60 Hz
Power Consumption-Typ
75 W
Power Consumption (Smart Energy Saving)
55 W
SPECIAL FEATURES
Yes
Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM Wake Up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail Over, Mirroring, SoftAP, BEACON, Embedded Template
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
PANEL
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.))
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness
450 cd/m2
Native Resolution
1,920 x 1,080 (FHD)
Viewing Angle (H x V)
178°/178°
Orientation
Portrait & Landscape
Response Time
12 ms (G to G BW), 9.4 ms (WOT)
Guaranteed Operating Hour
24 Hours
Screen Size
43"
ACCESSORIES
Basic
Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
Optional
Stand (ST-432T), Pixel Sensor (KT-SP0), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T430)
All image simulations are for illustration purposes only.
