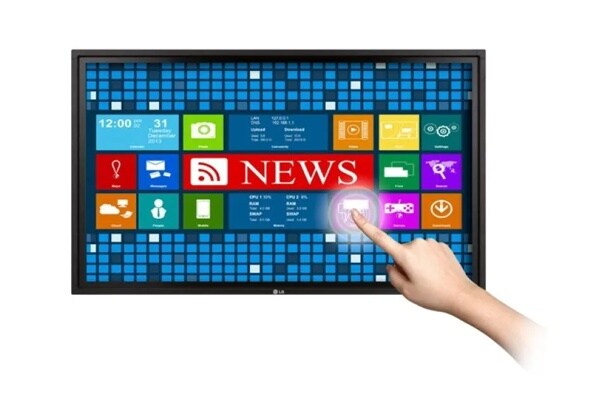

42" class (41.92" diagonal) LG IR Spread based Ghost-Free Multi-Touch Display

Name: 42" class (41.92" diagonal) LG IR Spread based Ghost-Free Multi-Touch Display
Brand: LG Electronics
SKU: 42WT30MS-B
Availability: Discontinued

DISCONTINUED

42WT30MS-B

42" class (41.92" diagonal) LG IR Spread based Ghost-Free Multi-Touch Display

Key Features

All Specs

PRECISE MULTI-TOUCH EXPERIENCE
BETTER MULTI-TOUCH EXPERIENCE
HIGHLY RELIABLE TOUCH

Compare

Specs & Resources

Collapse All

OUTPUT (Rear)

Audio

Speaker L/R

External Control

RS232C(In/Out), IR(1)

PHYSICAL SPECIFICATIONS

Packed Weight

43.2 lbs.

Bezel Width

15mm(Left/Right/Top/Bottom)

Color

Black

VESA Standard Mount Interface

200mm x 200mm

Carton Dimensions

42.3" x 28.3" x 7.5"

Weight (w/Optional Speaker)

36.8 lbs.

Monitor Dimensions (w/Optional Speaker)

39.0” x 23.0” x 3.7”

Monitor Dimensions (head only)

39.0” x 23.0” x 3.7”

Weight (head only)

35.1 lbs.

AUDIO

Sound Mode

Standard, Music, Cinema, Sports, Game

Audio Power

20W(10W x 2)

Clear Voice II

Yes

Balance

Yes

Speaker On/Off

Yes

SOFTWARE COMPATIBILITY

SuperSign Elite-w lite / Elite-c

Yes (Editing, Scheduling, Distribution & Play, Control) / Yes

ENVIRONMENT CONDITIONS

Operation Humidity

10% ~ 80%

Operation Temp.

0°C ~ 40°C

SPECIAL FEATURES

Smart Energy Saving

Yes

Key Lock

Yes

Tile Mode

Yes (not available in Touch)

ISM Method

Normal, White Wash, Orbiter, Inversion

Information

Model/Type, Software Version, Serial Number, IP Address, MAC Address, Homepage

DPM Select

Yes

Energy Saving

Yes (Off, Minimum, Medium, Maximum, Screen Off)

Source Selection

Component, RGB, DVI-D, HDMI, USB, Display Port

Time

Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby

Input Label

Yes(PC/DTV)

Temperature Sensor

Yes

File Play with USB

Yes

Position/Size

Yes

Auto Config/Phase

Yes

Auto Power/Source Memory

Yes

Advanced

Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level

PIP/PBP

Yes

Brightness/Contrast/ Backlight

Yes

Touch

Multi touch point

Max 10 Point

Protection Glass Thickness

3T (Anti-fog, Anti-glare)

Protection Glass Transmission

85%

Interface

USB 2.0

Touch Resolution

1280 x 730

Accuracy

1mm

Scan Time

10 ms

Power (Typ.)

Operating System Support

Windows XP (1Point) / Windows 7 (10 Point)

Available object size for touch

Ø6 mm

Touch type

IR(Infrared Rays) Spread

WARRANTY

Warranty

3-Year Limited Warranty (Parts/Labor/Backlight)

MEDIA PLAYER COMPATIBILITY

External Media Player Attachable

Yes (NC1100 / NA1100 / NA1000)

UPC

7 19192 19313 0

VIDEO (PC)

Max Input Resolution

1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)

Recommended Resolution

1920 x 1080@ 60Hz(RGB,HDMI/DVI-D)

V-Scanning Frequency

50Hz ~ 75.02Hz (RGB), 56Hz~60.317Hz (HDMI/DVI-D), 50 ~ 60 Hz(Component)

Pixel Frequency

148.5 MHz (RGB, HDMI/DVI-D)

Video Input

RGB, HDMI, DVI, DP

Color temperature

Warm, Medium, Cool

Sync Compatibility

Separate / Composite / Digital

Picture mode

Vivid, Standard, Cinema, Sports, Game

H-Scanning Frequency

30 ~ 83 kHz (RGB, HDMI/DVI-D), 15.625 ~ 60 kHz(Component)

POWER

Power Supply

100 -240V, 50/60Hz

Power Consumption-Power Off

0.5W (Typ.)

Power Consumption-Typ

90W

Power Consumption-DPMS

0.5W (Typ.)(RGB), 0.7W(Typ.)(DVI-D, HDMI, DP)

STANDARD CERTIFICATION

Safety

UL / cUL / CB scheme

Erp/Energy Star

Yes/Yes (Energy Star 6.0)

EMC

FCC Class "A", VCCI, CE, KCC

CONNECTIVITY INPUT (Rear)

Analog

RGB(1) (Shared Component & AV)

USB

Yes(2) Contents Playerback & Touch Control

External Control

RS232C(In/Out), RJ45(1), IR(1)

HDTV Formats

Component : 720p, 1080i , 1080p, HDMI : 720p, 1080i, 1080p

Audio

RGB/DVI-D/Component(3.5Φ 1)

Digital

HDMI(1), DVI-D(1), DP(1)

PANEL

Contrast Ratio

1,000:1

Response Time

6ms (GTG)

Brightness

400 cd/m^2 (340 cd/m^2 Typ With Protection Glass)

Screen Size

42" (41.92" measured diagonally)

Panel Technology

IPS

Aspect Ratio

16 : 9

Native Resolution

1920 x 1080 (FHD)

Dynamic CR

500,000 : 1

Surface Treatment

Hard coating (3H), Anti-reflection treatment of the front polarizer (Haze 1%)

Orientation

Portrait and Landscape

Color Depth

1.06 Billion

Viewing Angle

178°/178°

Color gamut

68%

Pixels(H x V x 3)

6,220,800

ACCESSORIES

Included

IR Dongle/USB Cable/RGB Cable/CD(Manual&SW) /Remote (with Battery)
