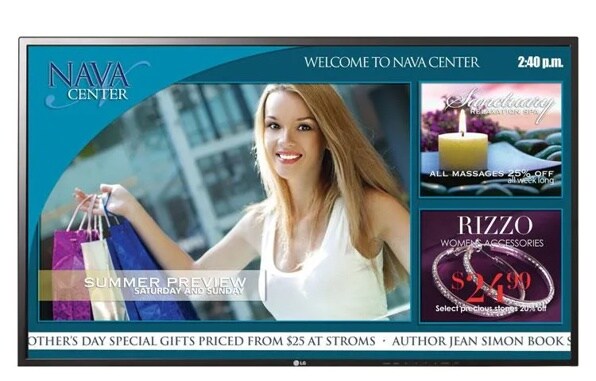

42” class (42.0” measured diagonally) IPS LCD Widescreen Full HD Capable Monitor
DISCONTINUED
42VX30MS-B
42” class (42.0” measured diagonally) IPS LCD Widescreen Full HD Capable Monitor
Key Features
All Specs
- NATIVE DISPLAY RESOLUTION 1920 x 1080 (FHD)
- HIGH BRIGHTNESS 700 cd/m2
- SHINE-OUT FILM GIVES MORE VISIBILITY
- SUPER IPS 178° VIEWING ANGLE
Compare
Specs & Resources
OUTPUT (REAR)
Audio
External speaker
Analog
Component(1), Composite(1), RGB(1) (Shared with D-Sub)
External Control
RS232C
Digital
DVI-D (1)
OPTIONAL ACCESSORIES-SP0000K (Speakers)
Color
Black
Packed Weight
2.4 lbs (2 Speakers/1 Package)
Speaker Weight (each)
0.8 lbs
Packaging Dimensions (Wx H x D)
15.1" x 5.3" x 6.9"
Speaker Dimensions (W x H x D)
1.6" x 12.9" x 2.2"
INPUT (REAR)
Analog
Component(1), AV(1), RGB(1) (Shared with D-Sub)
Digital
HDMI (1), DVI-D (1), Display Port (1) with HDCP for all input
Audio
PC/ AV/ Component Audio In(1)
External Control
RS232C (1), RJ45 (1)
HDTV Formats
Component: 720p, 1080i , 1080p HDMI: 720p, 1080i, 1080p
USB
Yes (1)
AUDIO
Sound Mode
Standard, Music, Cinema, Sports, Game
Audio Power
20W(10W x 2)
Clear Voice II
Yes
Balance
Yes
Speaker On/Off
Yes
SOFTWARE COMPATIBILITY
SuperSign Elite-w lite
Yes, Editing, Scheduling, Distribution & Play, Control
ENVIRONMENT CONDITIONS
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
SPECIAL FEATURES
Key Lock
Yes
ISM Method
Yes
Source Selection
AV, Component, RGB, HDMI, DVI-D, Display Port, USB
Input Label
Yes
Temperature Sensor
Yes
File Play with USB
Yes
Brightness / Contrast / Backlight
Yes
Position / Size
Yes
Auto Config / Phase
Yes
Auto Power / Source Memory
Yes
PIP/PBP
Yes
Tile mode (Up to 15x15)
Yes
Multi-media Playback
Yes
Smart Energy Saving (Yes, Off/Minimum/Medium/Maximum/Screen Off/Auto)
Yes
CABINET
Bezel Width
16.9mm
Monitor Weight
38.6 lbs
VESA Standard Mount Interface
600mm x 400mm
Packed Weight
48.2 lbs.
Carton Dimensions
41.1” x 26.0” x 9.8”
Monitor Dimensions
38.1" x 22.0" x 4.9"
Monitor with Opt. Stand
38.1” x 25.0” x 10.2”
Monitor with Opt. Stand & Speaker
38.1" x 25.0” x 10.2”
Monitor Weight with Opt. Stand
41.4 lbs
Monitor Weight with Opt. Stand & Speaker
43.2 lbs
LIMITED WARRANTY
Limited Warranty
3 Years (parts/labor/backlight)
OPTIONAL ACCESSORIES-ST0000K (Stand)
Dimensions (Wx H X D)
26.4” x 8.4” x 12.6”
Weight
8.9 lbs
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes
UPC
UPC
7 19192 19099 3
VIDEO (PC)
Max Input Resolution
1920 X 1080@ 60Hz (RGB,HDMI/DVI-D)
Pixel Frequency
148.5 MHz (RGB, HDMI/DVI-D)
Color temperature
Warm, Medium, Cool
Picture mode
Vivid, Standard, Cinema, Sports, Game
H-Scanning Freq
30 ~ 68kHz (RGB, HDMI/DVI-D)
Rec. Resolution
1920 X 1080@ 60Hz (RGB,HDMI/DVI-D)
V-Scanning Freq
56Hz ~ 75Hz (RGB), 56Hz~63Hz (HDMI/DVI-D)
POWER
Power Supply
100-240V~, 50/60Hz
Power Consumption-Normal (Typical)
170W
Power Consumption-Power Off
0.5W
Power Consumption-Smart Energy Saving on
130W
Power Consumption-DPMS Off
1.0W(RGB)
STANDARD CERTIFICATIONS
Safety
UL, cUL, CB scheme, TUV
EMC
FCC Class “B”/CE/MIC
ErP/Energy Star
Yes / Yes(Energy Star 5.1)
PANEL
Contrast Ratio
1,200:1 (Typ.), 3,000:1(DCR)
Response Time
9ms (G to G), 8ms (G to G, WOT)
Brightness
700 cd/m^2
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1920 x 1080 (FHD)
Surface Treatment
Hard coating(3H), Anti-reflection treatment of the front polarizer (Reflectance < 2%)
Orientation
Portrait & Landscape
Viewing Angle
178°/178°
Display Area
42” class (42.0” measured diagonally)
Lifetime
50,000 Hrs
ACCESSORIES
Accessories
Remote Controller, Power Cable, RGB Cable, Manual, AP-WX60, SP0000K (Speaker), ST0000K (Stand)
