32" TN5J Series FHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness
DISCONTINUED
32TNF5J-B
32" TN5J Series FHD IPS In-Cell Mutli-Touch Display with webOS™ 6.0, 500 nits Brightness
Key Features
All Specs
- 32" Full HD (1920x1080) IPS Display
- Multi-Touch Point : Max. 10 Points
- WebOS™ 6.0, Pro:Idiom, Embedded CMS, Compatible with LG Supersign Software
- Portrait, Landscape and 45° Tilt
- 500 nits brightness
- Operation 24/7 with Life up to 50,000 Hours
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
In-Cell Touch Open Frame
10 Points of Multi-Touch
The 27TNF3K provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once.

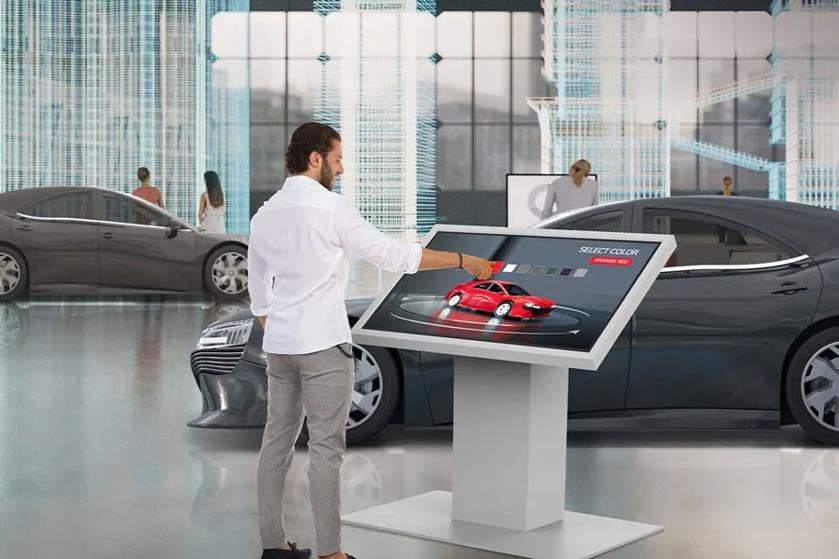

High-Performance with LG webOS™ 6.0
This in-cell touch signage features LG's webOS™ 6.0 with an upgraded in System on Chip (SoC) and web engine, providing smooth execution of several tasks. LG webOS™ smart signage platform provides enhanced user convenience with an intuitive Graphic User Interface (GUI).
Design Flexibility
This slim touch display can be portrait or landscape to meet your implementation needs, while webOS™ 6.0 smart signage platform lets you create great applications.

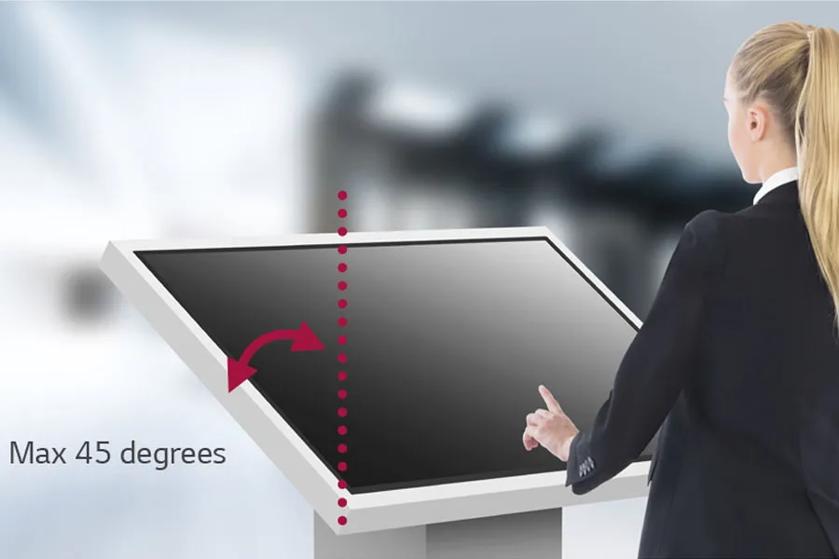

45-degree Tilt
With a max tilt of 45 degrees (screen up), this in-cell touch is great for using at waste level or lower.

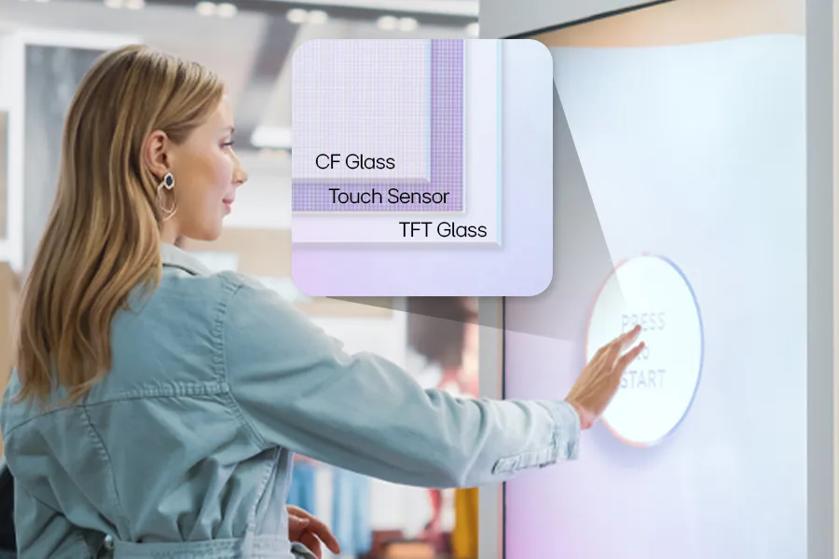

Slim Design
The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Wide Viewing Angle
IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
No
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
No
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (4)
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
No
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
No
External Input Rotation
No
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
65W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Less than 0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)
39 W
BTU Heat Generation (Max.)
222 BTU
BTU Heat Generation (Typ.)
188 BTU
Power Consumption (Typ.)
55 W
Mechanical
Bezel Color
Black
Bezel Width
T/R/L: 11.3 mm, B: 13.2 mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
No
Tilt (Face Up)
Yes (Max 45º)
Weight
12.3 lbs / 5.6 kg
Weight Signage Box
N/A
Weight with Stand
Not Available
Shipping Weight
15.0 lbs / 6.8 kg
Dimensions (W x H x D)
28.5 x 16.5 x 1.5 in / 723.0 x 419.4 x 39.1 mm
Dimensions with Stand (W x H x D)
Not Available
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
32.0 x 20.1 x 5.6 in / 812 x 510 x 142 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
200 x 200 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
No
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
No
Play Via URL
Yes
Cisco Certified Compatibility
Yes
Failover
Yes
System
Operating System (OS)
webOS™ 6.0
Processor
No
Graphics
No
Storage
No
Internal Memory
8 GB (System 5 GB + Available 2.48 GB) (eMMC)
Touch Panel
Available Object Size for Touch
Greater than 6 mm
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
3.5 mm
Interface
USB 2.0
Active Pen Interface
No
Multi Touch Point (Max.)
MAX 10 Points
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
Win 10
Connectivity
HDMI In
Yes (x2) HDCP 2.2/1.4
IR In (3.5 mm)
Yes
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
No
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
No
Audio Out (3.5 mm)
Yes (x1)
Touch USB
Yes (x1) USB 2.0
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
No
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
No
Warranty & Other
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
No
UPC
1 95174 02761 5
Basic Accessories (included)
Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller (include battery 2ea), RS232C Gender, IR Receiver
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
Yes
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
32"
Panel Technology
IPS
Backlight Type
Edge
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1000:1
Dynamic Contrast Ratio
No
Color Gamut
NTSC 72%
Color Depth (Number of Colors)
16.7 Million Colors, 8 bit
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
9 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
