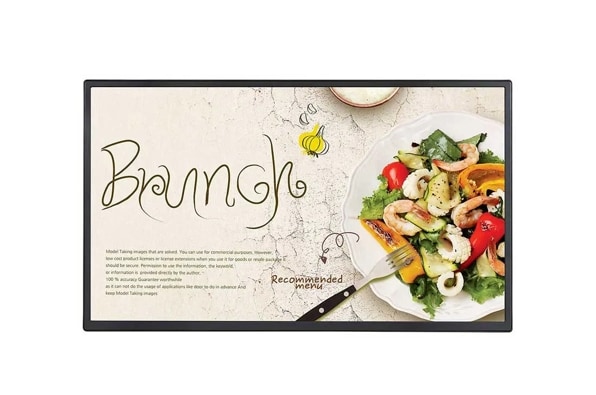

32” Full HD Standard Signage Display with webOS™ 6.0 Smart Signage Platform
$653.00
TAA Compliant
32SM5J-B
32” Full HD Standard Signage Display with webOS™ 6.0 Smart Signage Platform
$653.00
Key Features
All Specs
- Full HD Resolution (1920x1080px)
- webOS™ 6.0 Smart Signage Platform
- 400 cd/m² Brightness (Typ.)
- 55.5 mm Depth
- Built-In Speaker (10Wx2)
- ENERGY STAR® Certified
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
High-Performance with webOS™ 6.0
32SM5J-B features LG's webOS™ 6.0 with an upgraded in System on Chip (SoC) and web engine, providing smooth execution of several tasks. LG webOS™ smart signage platform provides enhanced user convenience with an intuitive Graphic User Interface (GUI).
Various Sensor Connections
webOS™ 6.0 helps quickly provide additional solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.*
*External sensors need to be purchased separately and tested for compatibility with the webOS™ platform.
*External sensors need to be purchased separately and tested for compatibility with the webOS™ platform.
Mobile & Web Monitoring
Control and monitor the status of the SM5J series displays in different locations in real-time using the Control Manager, an embedded web monitoring solution. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergencies.*
*The mobile devices need to be connected with the Signage IP address and control one signage simultaneously. Control Manager is optimized for Google Chrome 56 version and above.
*The mobile devices need to be connected with the Signage IP address and control one signage simultaneously. Control Manager is optimized for Google Chrome 56 version and above.
Compatible with AV Control Systems
The SM5J Series is Crestron Connected® certified* for compatibility with professional AV controls to achieve seamless integration and automated management.
*Initial setting from the display is required for Crestron Connected® compatibility. Network-based control.
*Initial setting from the display is required for Crestron Connected® compatibility. Network-based control.

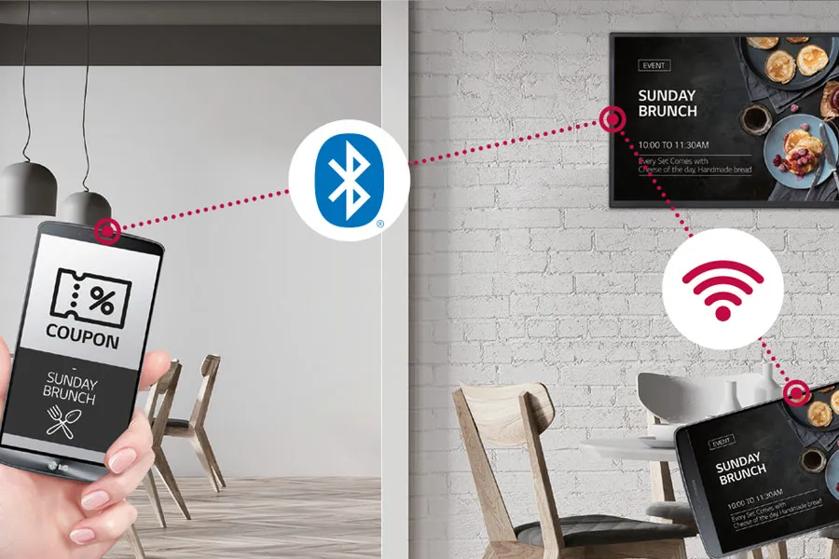

Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point
The SM5J series operates as a virtual router that can be a wireless access point for mobile devices.
LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, helping to support the stable operation of clients' businesses.*
*The availability of the 'LG ConnectedCare service differs by region, and it must be purchased separately. Please contact the LG sales representative in your area for more details.
*The availability of the 'LG ConnectedCare service differs by region, and it must be purchased separately. Please contact the LG sales representative in your area for more details.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (x2)
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
No
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
75W
Power Supply
AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
38.5W
BTU Heat Generation (Max.)
256 BTU
BTU Heat Generation (Typ.)
188 BTU
Power Consumption (Typ.)
55W
Mechanical
Bezel Color
Black
Bezel Width
Not Available
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
T/R/L: 13 mm, B: 18 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
11.9 lbs / 5.4 kg
Weight Signage Box
N/A
Weight with Stand
13.7 lbs / 6.2 kg
Shipping Weight
14.8 lbs / 6.7 kg
Dimensions (W x H x D)
28.7 x 16.9 x 2.2 in / 729.4 x 428.9 x 55.5 mm
Dimensions with Stand (W x H x D)
28.7 x 18.9 x 6.1 in / 729.4 x 481 x 154.2 mm
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
31.9 x 20.1 x 5.2 in / 810 x 510 x 132 mm
Conformal Coating (Power Board)
No
Handle
No
VESA™ Standard Mount Interface
200 x 200 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
No
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 6.0
Processor
No
Graphics
No
Storage
No
Internal Memory
8 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x3) HDCP 2.2
IR In (3.5 mm)
Yes
IR In (3.5 mm)
Yes
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
No
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
Yes (x1)
DisplayPort Out
No
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
Mexico
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
Stand (ST-322T)
UPC
1 95174 01290 1
Basic Accessories (included)
Remote Controller (include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
No
Energy Star (Environmental)
Yes
Smart Features
Screen Share
Yes
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
32"
Panel Technology
IPS
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
400 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1100:1
Dynamic Contrast Ratio
1000000:1
Color Gamut
NTSC 68%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
10 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
1%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
