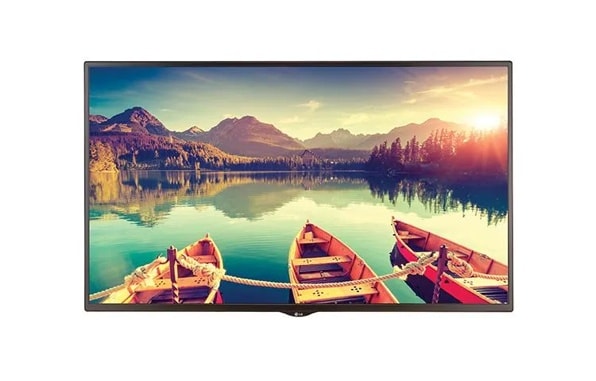

32" class (31.5" diagonal) SM5KB Enhanced Smart Platform

Name: 32" class (31.5" diagonal) SM5KB Enhanced Smart Platform
Brand: LG Electronics
SKU: 32SM5KB
Availability: Discontinued

DISCONTINUED

32SM5KB

32" class (31.5" diagonal) SM5KB Enhanced Smart Platform

Key Features

All Specs

QUAD CORE SOC
BUILT-IN SPEAKERS
BUILT-IN WI-FI
OPS(OPEN PLUGGABLE SPECIFICATION) KIT OPTION

Compare

Specs & Resources

Collapse All

INPUT

HDTV Formats

HDMI : 720p, 1080i, 1080p

HDMI

Yes (1), HDMI /HDCP2.2

Yes (1), DP /HDCP1.3

Pixel Sensor

Yes (1)

RS232C In

Yes (1)

RJ35

Yes (1)

DVI-D

Yes (1), HDCP2.2

Audio In

Yes (1), RGB/DVI

SD Card (SDHC/Full Size)

Yes (1)

RGB

Yes (1)

USB(USB3.0)

Yes (1)

AUDIO

Sound Mode

Standard, News, Music, Cinema, Sport, Game

Audio Power

20W (10W x 2) for Internal Speaker (6 ohm)

Clear Voice II

Yes

Balance

Yes

Virtual Surround

Yes

Equalizer

Yes

OTHER

UPC

7 19192 19741 1

OUTPUT

DP Out

Yes (1), SST/DP1.2a

Audio Out

Yes (1)

RS232C OUT

Yes (1)

POWER CONSUMPTION

Typical

60W

DPM

0.5W

Power Off

0.5W

CERTIFICATION

Safety

UL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / Yes / Yes (ENERGY STAR® Qualified)

SOFTWARE COMPATIBILITY

SuperSign-c

Yes

SuperSign-w lite

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

32 °F to 104 °F

Operation Humidity

10 % to 80 %

SPECIAL FEATURES

USB Cloning

Logo image download, EzDownload, Sent to USB, Receive from USB

HDMI-CEC

Yes

Lock Mode

USB

Tile Mode

Yes (Up to 15x15)

ISM Method

Normal, White Wash, Color Wash, User image, (User video, Orbiter, Inversion, Washing Bar will be supported from '15.July) * Scheduling is supported additionally

DPM Select

Yes

Source Selection

RGB, HDMI, DVI, USB1, USB2

Input Label

Yes (PC / DTV)

File Play with USB

Yes

Internal Memory

8GB (System 4GB + Available 4GB)

Cooling FAN

Yes

Brightness / Contrast / Backlight

Yes

Position / Size

Yes

Auto Config / Phase

Yes

Advanced

Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma

Natural Mode @ Tile Mode

Yes

Temp Sensor

Yes

Overlay touch

Yes

Still Image Diagnosis

Yes

Wake on LAN

Yes

Digital Audio Input

Yes

Power on Delay

0~255

Pivot Mode

Yes

OSD Portrait Mode

0, 90, 270

Password Change

Yes

Set ID Setup

Manual, Auto

Configuration Setup

USB auto Playback

Fail Over

USB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

No Signal image (Up to 5MB)

No (Use Internal memory fail over)

Language

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek

Calibration mode

Yes

Content scheduling

USB, Internal memory, SD Card

Power on Status

Standard, PWR, LST

Wi-Fi

802.11n combo built-in

Key Operation

IR operation, Local key operation

DST

Yes

DPM Wake Up

(Analog: Sync only, Digital: Clock / Clock+Data selectable)

Intelligent Auto

Yes

PM Mode

Yes

OPS Power Control

Sync On, Sync On/Off, Disable

Timer

Clock, On/Off Timer, Auto Off, Automatic Standby

Auto Brightness Sensor

Yes

Beacon

On/Off (Will be supported from '15.July)

Speakers

Yes

Frameware Update (LAN)

Yes

Media Share

Mirroring, (SoftAP will be supported from'15.July)

Check Screen (Via Pixel Sensor)

Yes

Embedded Template

Yes (Will be supported from '15.July)

CABINET

Bezel Color

Black

VESA™ Compatible

200 x 200mm

Carton Weight

14.8lbs

Weight

12lbs

Bezel Width

13mm (T/R/L), 18mm (B)

(W x H x D)

28.7” x 16.9” x 2.2”

Carton (WxHxD)

31.9” x 20.1” x 5.2”

w/Optional Stand (WxHxD)

28.7” x 18.9” x 6.1”

w/Optional Stand Weight

13.3lbs

WARRANTY

Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

MEDIA PLAYER COMPATIBILITY

External Media Player Attatchable

OPS Type Compatible

Yes

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

PANEL

Panel Size

32" (31.5" diagonal)

Response Time

12ms (G to G BW), 7.1ms (WOT)

Brightness

400cd/m2

Panel Technology

IPS

Aspect Ratio

16 : 9

Dynamic CR

4,000,000:1

Viewing Angle (H x V)

178°/178°

Surface Treatment

Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))

Orientation

Portrait & Landscape

Color Depth

16.7 Million

Pixels (H x V x 3)

6,220,800

Contrast Ratio (Typ.)

1,100:1

Color Gamut

68%

Life time (Typ.)

50,000 Hrs

Operation Hours

24 Hr

ACCESSORIES

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Stand (ST-652T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)

INPUT

HDTV Formats

HDMI : 720p, 1080i, 1080p

HDMI

Yes (1), HDMI /HDCP2.2

Yes (1), DP /HDCP1.3

Pixel Sensor

Yes (1)

RS232C In

Yes (1)

RJ35

Yes (1)

DVI-D

Yes (1), HDCP2.2

Audio In

Yes (1), RGB/DVI

SD Card (SDHC/Full Size)

Yes (1)

RGB

Yes (1)

USB(USB3.0)

Yes (1)

AUDIO

Sound Mode

Standard, News, Music, Cinema, Sport, Game

Audio Power

20W (10W x 2) for Internal Speaker (6 ohm)

Clear Voice II

Yes

Balance

Yes

Virtual Surround

Yes

Equalizer

Yes

OTHER

UPC

7 19192 19741 1

OUTPUT

DP Out

Yes (1), SST/DP1.2a

Audio Out

Yes (1)

RS232C OUT

Yes (1)

POWER CONSUMPTION

Typical

60W

DPM

0.5W

Power Off

0.5W

CERTIFICATION

Safety

UL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / Yes / Yes (ENERGY STAR® Qualified)

SOFTWARE COMPATIBILITY

SuperSign-c

Yes

SuperSign-w lite

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

32 °F to 104 °F

Operation Humidity

10 % to 80 %

SPECIAL FEATURES

USB Cloning

Logo image download, EzDownload, Sent to USB, Receive from USB

HDMI-CEC

Yes

Lock Mode

USB

Tile Mode

Yes (Up to 15x15)

ISM Method

Normal, White Wash, Color Wash, User image, (User video, Orbiter, Inversion, Washing Bar will be supported from '15.July) * Scheduling is supported additionally

DPM Select

Yes

Source Selection

RGB, HDMI, DVI, USB1, USB2

Input Label

Yes (PC / DTV)

File Play with USB

Yes

Internal Memory

8GB (System 4GB + Available 4GB)

Cooling FAN

Yes

Brightness / Contrast / Backlight

Yes

Position / Size

Yes

Auto Config / Phase

Yes

Advanced

Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass Color, Gamma

Natural Mode @ Tile Mode

Yes

Temp Sensor

Yes

Overlay touch

Yes

Still Image Diagnosis

Yes

Wake on LAN

Yes

Digital Audio Input

Yes

Power on Delay

0~255

Pivot Mode

Yes

OSD Portrait Mode

0, 90, 270

Password Change

Yes

Set ID Setup

Manual, Auto

Configuration Setup

USB auto Playback

Fail Over

USB, SDcard, RGB, DP, OPS, DVI, HDMI, Internal Memory

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

No Signal image (Up to 5MB)

No (Use Internal memory fail over)

Language

Calibration mode

Yes

Content scheduling

USB, Internal memory, SD Card

Power on Status

Standard, PWR, LST

Wi-Fi

802.11n combo built-in

Key Operation

IR operation, Local key operation

DST

Yes

DPM Wake Up

(Analog: Sync only, Digital: Clock / Clock+Data selectable)

Intelligent Auto

Yes

PM Mode

Yes

OPS Power Control

Sync On, Sync On/Off, Disable

Timer

Clock, On/Off Timer, Auto Off, Automatic Standby

Auto Brightness Sensor

Yes

Beacon

On/Off (Will be supported from '15.July)

Speakers

Yes

Frameware Update (LAN)

Yes

Media Share

Mirroring, (SoftAP will be supported from'15.July)

Check Screen (Via Pixel Sensor)

Yes

Embedded Template

Yes (Will be supported from '15.July)

CABINET

Bezel Color

Black

VESA™ Compatible

200 x 200mm

Carton Weight

14.8lbs

Weight

12lbs

Bezel Width

13mm (T/R/L), 18mm (B)

(W x H x D)

28.7” x 16.9” x 2.2”

Carton (WxHxD)

31.9” x 20.1” x 5.2”

w/Optional Stand (WxHxD)

28.7” x 18.9” x 6.1”

w/Optional Stand Weight

13.3lbs

WARRANTY

Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

MEDIA PLAYER COMPATIBILITY

External Media Player Attatchable

OPS Type Compatible

Yes

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

PANEL

Panel Size

32" (31.5" diagonal)

Response Time

12ms (G to G BW), 7.1ms (WOT)

Brightness

400cd/m2

Panel Technology

IPS

Aspect Ratio

16 : 9

Dynamic CR

4,000,000:1

Viewing Angle (H x V)

178°/178°

Surface Treatment

Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))

Orientation

Portrait & Landscape

Color Depth

16.7 Million

Pixels (H x V x 3)

6,220,800

Contrast Ratio (Typ.)

1,100:1

Color Gamut

68%

Life time (Typ.)

50,000 Hrs

Operation Hours

24 Hr

ACCESSORIES

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover

Optional

Stand (ST-652T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HD Base T (EB-B100)
