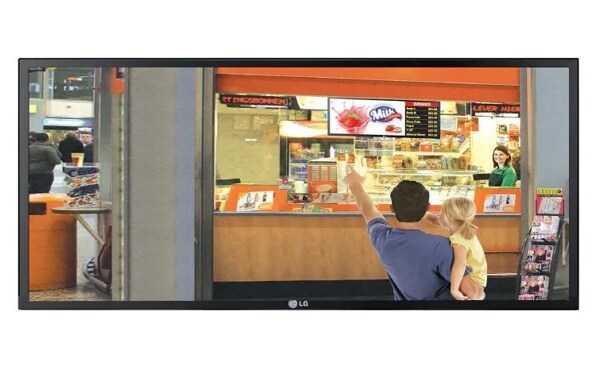

29" class (28.75" diagonal) Ultra Widescreen Digital Signage
DISCONTINUED
29WR30MR
29" class (28.75" diagonal) Ultra Widescreen Digital Signage
Key Features
All Specs
- IPS-In Plane Switching
- UNIQUE APPLICATION FOR SPACE SAVING
Compare
Specs & Resources
OUTPUT (Rear)
Digital
Display Port(1)
INPUT (Rear)
Audio
Yes(1)
HDTV Formats
HDMI : 720p, 1080i, 1080p
External Control
RS232C(1), RJ45(1), IR(1)
Digital
DVI-D(1), HDMI(1), Display Port(1) with HDCP for all input
AUDIO
Audio Power
20W (10W x 2)
Auto Volume
Yes
Speaker on/off
Yes
ENVIRONMENT CONDITIONS
Operation Humidity
10% ~ 80%
Operation Temp.
0°C ~ 40°C
SOFTWARE COMPATIILITY
SuperSign Elite-c
Yes
SPECIAL FEATURES
Key Lock
Yes
Tile Mode
Yes
ISM Method
Orbiter
Information
Yes
PIP
PIP Off / DVI+DP / HDMI+DP / DP+DVI / DP+HDMI
DPM Select
Yes
Energy Saving
Yes
Brightness/Contrast/Backlight
Yes
Source Selection
Display Port, DVI-D, HDMI
Time
Clock, On time, Off time, Auto Off, 4 Hours Off, Sleep Timer
Input Label
Yes (HDMI only)
CABINET
Bezel Width
1.0mm(L/R), 1.0mm(U), 16.8mm(B)
Color
Black
Monitor Dimensions
27.4” x 12.3” x 2.0” (W x H x D)
Carton Dimensions
30.6” x 15.2” x 6.1” (W x H x D)
Monitor Weight
15.87 lbs
VESA Standard Mount Interface
200mm x 200mm
Packed Weight
19.62 lbs
WARRANTY
Warranty
3-Year Limited Warranty (Parts/Labor/Backlight)
UPC
UPC
7 19192 19246 1
VIDEO(PC)
Color temperature
Warm, Medium, Cool
V-Scanning Frequency
50 ~ 75Hz (RGB / HDMI / DVI-D)
Sync Compatability
Separate / Composite / Digital
Picture mode
Custom, Text, Photo, Cinema, Game(DVI,HDMI PC) Custom, Standard, Vivid 1, Vivid 2, Cinema (HDMI AV)
Pixel Frequency
185.58 MHz (RGB, HDMI/DVI-D)
Recommended Resolution
2560 X 1080@ 60Hz(RGB,HDMI/DVI-D)
Max Input Resolution
2560 X 1080@ 60Hz(RGB,HDMI/DVI-D)
Video Input
HDMI, DVI, Display Port
H-Scanning Frequency
55.6~ 83.3kHz (RGB, HDMI/DVI-D)
POWER
Power Supply
90-240V ~, 50/60Hz
Power Type
Built-In Power
Power Consumption-Normal (Typical)
53 Watt , 75Watt (With Speaker x 2)
Power Consumption-DPM
1.2 Watt
Power Consumption-Power Off
0.5W
STANDARD CERTIFICATION
Safety
UL, cUL, CB scheme, TUV
Erp/Energy Star
Yes/ NA
EMC
FCC Class "B", VCCI, C-tick, CE, KCC
PANEL
Panel Size
29" class (28.75" measured diagonally)
Response Time
Max. 5ms (GTG)
Brightness
300 cd/m^2
Panel Technology
IPS
Aspect Ratio
21:9
Native Resolution
2560 x 1080
Surface Treatment
Hard coating(3H) Anti-glare treatment of the front polarizer
Orientation
Landscape
Color Depth
8-bit, 16,777,216 colors
Pixels (H x V x 3)
8,294,400
Contrast Ratio (Typ.)
1,000:1
Dynamic CR (DCR)
5,000,000:1
Viewing Angle
178°/178°
ACCESSORIES
Accessories
Remote Controller (Including 2ea battery), Power Cord, HDMI cable, IR Receiver, CD(Owner's Manual), ESG
