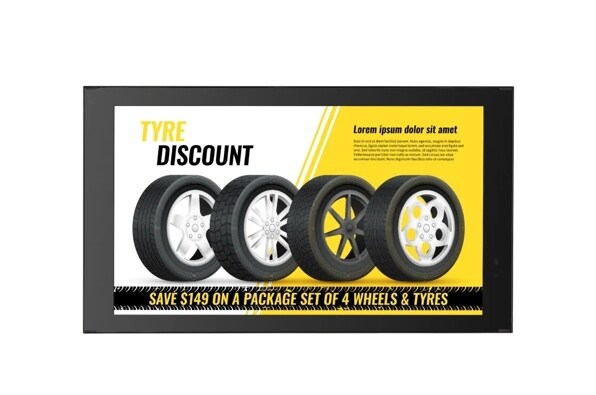

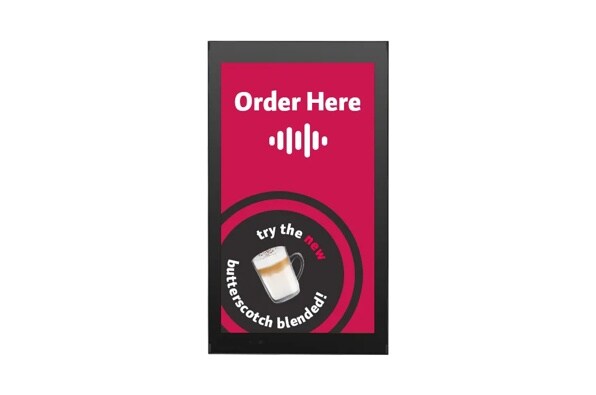

21.5” FHD IP-rated Outdoor Signage
$3,600.00
22XE1J
21.5” FHD IP-rated Outdoor Signage
$3,600.00
Key Features
All Specs
- Brightness (Typ, w/ Glass) : 1,500 nits
- IP56 Rated
- 21.5" of Versatile Display Size
- Wide Operating Temperature Range
- webOS™ Smart Platform
- Web-based Monitoring Solution
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
Versatile Outdoor Display Fit for Your Business
Designed for outdoor use, this 22" high bright signage is great for gas stations, convenient stores and places were a small FHD display is needed.
High Visibility Under Bright Environments
With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
Versatile Display
At 21.5 inches, this screen’s small and light size allows for flexible use in many environments. Whether utilized within a small, medium, or large business, the 22XE1J can be used in a variety of circumstances.
Secured Protection with IP56 Design
With an IP56 design that keeps the display protected from limited dust ingress and from high pressure water streams, the 22XE1J is able to operate in a variety of environments.
Wide Operating Temperature Range
22XE1J can be used within a wide range of operating temperatures and environments, which allows for outdoor installation in various climates.
Conformal Coating
It can be hard to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on the power board helps reduce these risks.
Smart Brightness Control
The screen brightness is adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
High Performance with webOS
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
Easy Content Distribution & Software Updates
22XE1J features embedded WiFi, Bluetooth, and Beacon which makes it easy to wirelessly distribute content and update firmware. By using Beacon and BLE (Bluetooth Low Energy), a shop manager can seamlessly display and update promotions to visitors in real time.
Real-Time & Remote Web Monitoring
With this web-based monitoring solution, users can easily control the display remotely. Users have full access to the display virtually anywhere at virtually any time from their mobile device or computer, providing them with access to current & past data, monitoring tools, and the ability to make any adjustments in real-time.
LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
No
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
No
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
No
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (x4) Max One HDMI input
PM mode
No
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
No
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
115W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Less than 0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)
40W
BTU Heat Generation (Max.)
393 BTU
BTU Heat Generation (Typ.)
290 BTU
Power Consumption (Typ.)
85W
Mechanical
Bezel Color
Black
Bezel Width
T: 24.0 mm, R/L: 38.3 mm, B: 24.0 mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
Yes ( -15º)
Tilt (Face Up)
No
Weight
18.3 lbs / 8.3 kg
Weight Signage Box
N/A
Weight with Stand
N/A
Shipping Weight
22.0 lbs / 10 kg
Dimensions (W x H x D)
21.9 x 12.6 x 2.6 in / 557.3 x 319.8 x 65 mm
Dimensions with Stand (W x H x D)
N/A
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
24.9 x 15.5 x 7.4 in / 632 x 394 x 187 mm
Conformal Coating (Power Board)
Yes
Handle
No
VESA™ Standard Mount Interface
100 x 100 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
Yes
Protective Glass
Thickness
2 mm
Degree of Protection
N/A
Tempered / Chemical Strengthening
Chemical Strengthening
Anti-Reflective
Yes
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
Yes
Shatter-Proof
Yes
Heat Dissipation
Heat exchange
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
No
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
Yes
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
No
Power Indicator
Yes
Proximity Sensor
No
Humidity Sensor
Yes
Features
Crestron Certified Compatibility
No
Beacon
No
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.1
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x2) HDCP 2.2/1.4
IR In (3.5 mm)
No
IR In (3.5 mm)
No
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
No
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
No
Audio Out (3.5 mm)
No
Touch USB
No
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
No
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
Yes (x1) L/R, 10W+10W
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arab, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
No
UPC
1 95174 01439 4
Basic Accessories (included)
Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Adapter
Environmental Conditions
Operation Humidity
5% to 100%
Operation Temperature (Portrait)
N/A
Operation Temperature
-20°F to 122°F / -30°C to 50°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
IP56
TAA Compliance
No
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
22"
Panel Technology
IPS (AHVA)
Backlight Type
Edge
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60 Hz
Brightness (Typ.)
1,500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1000:1
Dynamic Contrast Ratio
800000:1
Color Gamut
NTSC 72%
Color Depth (Number of Colors)
16.7 Million Colors, 8 bit
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
25 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
25%
Surface Treatment (Anti Glare)
Yes
Surface Treatment (Hard Coating)
3H
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 70,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
Yes
undefined
