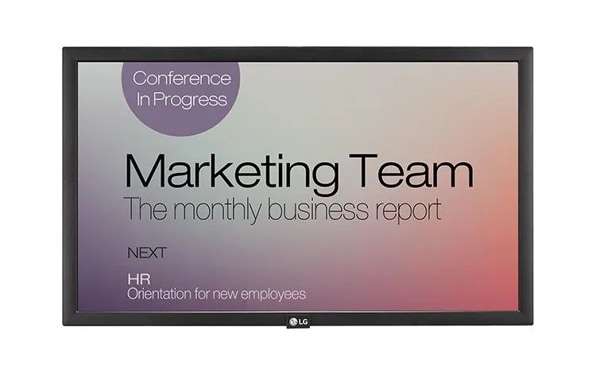

22" Class (21.5 Diagonal) Small Signage 22SM3B

22SM3B-B_gallery_1
22SM3B-B_gallery_2
22SM3B-B_gallery_3
22SM3B-B_gallery_4
DISCONTINUED
22SM3B-B_gallery_1
22SM3B

22" Class (21.5 Diagonal) Small Signage 22SM3B

Key Features
All Specs
  • Quad Core SoC*
  • webOS 2.0
  • SoftAP
  • Simple Installation

Compare

Specs & Resources

Collapse All

Carton Dimensions (W x H x D)
22.2 " x 14.1" x 4.1"
Monitor Dimension (W x H x D)
20.1" x 11.9" x 2.1"
Bezel Color
Black
Weight (Head)
7.9lbs
Bezel Width
16.3mm (T/R/L/B)
VESA TM Standard Mount Interface
100 x 100
Packed Weight
10.4lbs
UPC
719192198395
Input
HDMI, RGB, Audio, USB 3.0, SD card
Output
External Speaker (L/R)
External Control
RS232C In, IR Receiver, Pixel Sensor
Operating Humidity Range
10 % to 80 %
Operating Temperature Range
32 °F to 104 °F
Limited Warranty
3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available
SuperSign W-Lite
Yes
SuperSign-C
Yes
Typical
35W
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Smart Energy Saving
On 25.13W / Off 29.76W
Yes
ISM Method, Internal Memory (4GB), Wi-Fi (802.11n combo built-in), USB Cloning, Local contents scheduling, Sync Mode, PM Mode, Local Time Auto Setting, Wake on LAN, Pivot Mode, Content Rotation 0,90,270, Fail Over, BEACON On/Off, Embedded Template
Safety
UL / cUL / CB / TUV
EMC
FCC Class "B" / CE
Surface Treatment
Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))
Panel Technology
IPS
Aspect Ratio
16 : 9
Brightness
250cd/m2
Native Resolution
1920 x 1080 (FHD)
Viewing Angle (H x V)
178°/178°
Orientation
Portrait & Landscape
Guaranteed Operating Hour
16 Hours
Dynamic Contrast Ratio
4,000,000:1
Screen Size
21.5
Basic
Remote Controller (include 2ea batteries), Power Cord, QSG, RGB Cable, Phone to RS232C Gender
Optional
Pixel sensor (KT-SP0)
