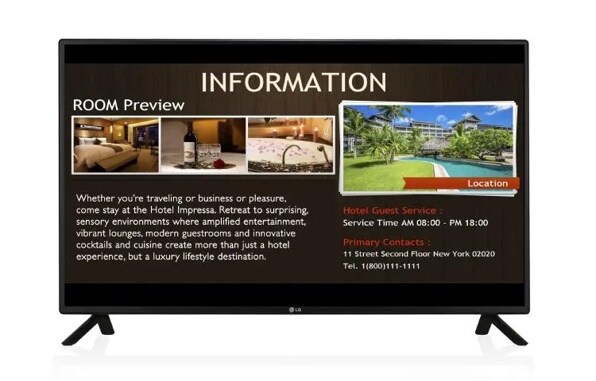

65" class (64.53" diagonal) TV tuner built-in Digital Signage

Name: 65" class (64.53" diagonal) TV tuner built-in Digital Signage
Brand: LG Electronics
SKU: 65LY540S
Availability: Discontinued

DISCONTINUED

65LY540S

65" class (64.53" diagonal) TV tuner built-in Digital Signage

Key Features

All Specs

Brightness 300nit
Buit-in TV Tuner
Built-in Speaker

Compare

Specs & Resources

Collapse All

REQUIRED LISTING (Certification)

RoHS Compliant

Yes

Safety

cUL, UL, FCC, NOM

Energy Star 6.1

Yes

INTERFACE (Side)

HDMI In

1 Side

USB (2.0)

2 Side

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC/Clear QAM/VSB)

AUDIO

Audio Output

10W + 10W

Sound Mode

Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)

Optical Sound Sync

Yes

Clear Voice II

Yes

Invisible Speaker

Yes

Speaker System

2.0 ch

VIDEO

Dynamic Color Enhancer

Yes

Triple XD Engine

Yes

Real Cinema 24p (3:3 pull down)

Yes

Aspect Ratio

Yes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes

HDMI-CEC

Yes

Welcome Screen (Splash Image)

Yes

Lock Mode

Yes

Audio Codec

MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM

MHL

Yes

Hotel Mode/ PDM /Installer Menu

Yes

Multi IR Code

Yes

IR Out

Yes (RS232C)

Auto Off / Auto Sleep

Yes / Yes

RJP Compatibility

Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

RJP Interface

Yes (RS232C, HDMI CEC)

Kensington Lock

Yes

External Speaker Out

Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

USB Auto Play Back

Yes

USB

Yes (USB 2.0)

Moving Picture Playback (SD/HD/Plus HD)

Divx HD


JPEG

Digital Signage CMS

Yes (SuperSign lite)

Remote Diagnosis

Yes (USB)

HTNG-CEC

Yes (1.3)

Motion Eye Care (Intelligent Sensor)

Yes

One Channel Map/ Logical Channel Map

Yes

CABINET

Flame Retardent

Yes

Bezel Width (off Bezel) (mm)

9.5mm/9.5m/15mm

Bezel Width (on Bezel) (mm)

12mm/12m/7.5mm

Carton

61.0” x 37.2” x 7.6”

VESA™ Standard Mount Interface

400mm x 400mm

Color

Dark Titan

Dimensions with stand(WxHxD)

59.6" X 35.4 X 12.4"

Weight (with stand)

67.2 Ibs

Dimensions without stand (WxHxD)

57.6” x 33.5” x 2.3”

Weight (without stand)

63.9 lbs

Weight (with carton)

80.5 Ibs

WARRANTY

Warranty

2 Year Limited Warranty (Parts/Labor)

UPC

65LY540S

7 19192 91619 7

POWER

Stand-by

0.5W↓

Watts (typical)

61W

Power Source

110 ~ 240V, 50/60Hz

PANEL

Frame Rate

120Hz

Response Time

9 ms (G to G)

Viewing Angle(HxV)

178° x 178°

Brightness

230 cd/m2

Panel Technology

Slim Direct LED

Native Resolution

1920x1080 (FHD)

Static (Panel) Contrast Ratio

1,400:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

4,000,000:1

Panel Size (Measured Diagonally)

65” Class(64.53”)

ACCESSORIES

Cable

Power cord (1.5m, Angle Type)

INTERFACE (Rear)

RF In

1 Rear

AV In

1 (Sharing with Component in)

Digital Audio Out (Coaxial / Optical)

1 (Optical)

HDMI/HDCP Input

1 Rear

RGB In (D-sub 15pin) - PC

1 Rear

PC Audio Input

1(Share with component audio input)

RS-232C (D-Sub 9pin)

1 (Control & Service)

External Speaker Out

1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical

Component in (Y,Pb,Pr) + Audio

1 (5)

REQUIRED LISTING (Certification)

RoHS Compliant

Yes

Safety

cUL, UL, FCC, NOM

Energy Star 6.1

Yes

INTERFACE (Side)

HDMI In

1 Side

USB (2.0)

2 Side

BROADCASTING SYSTEM

Analog

Yes (NTSC)

Digital

Yes (ATSC/Clear QAM/VSB)

AUDIO

Audio Output

10W + 10W

Sound Mode

Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)

Optical Sound Sync

Yes

Clear Voice II

Yes

Invisible Speaker

Yes

Speaker System

2.0 ch

VIDEO

Dynamic Color Enhancer

Yes

Triple XD Engine

Yes

Real Cinema 24p (3:3 pull down)

Yes

Aspect Ratio

Yes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)

SPECIAL FEATURES

USB Cloning

Yes

Smart Energy Saving

Yes

HDMI-CEC

Yes

Welcome Screen (Splash Image)

Yes

Lock Mode

Yes

Audio Codec

MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM

MHL

Yes

Hotel Mode/ PDM /Installer Menu

Yes

Multi IR Code

Yes

IR Out

Yes (RS232C)

Auto Off / Auto Sleep

Yes / Yes

RJP Compatibility

Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)

RJP Interface

Yes (RS232C, HDMI CEC)

Kensington Lock

Yes

External Speaker Out

Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)

USB Auto Play Back

Yes

USB

Yes (USB 2.0)

Moving Picture Playback (SD/HD/Plus HD)

Divx HD


JPEG

Digital Signage CMS

Yes (SuperSign lite)

Remote Diagnosis

Yes (USB)

HTNG-CEC

Yes (1.3)

Motion Eye Care (Intelligent Sensor)

Yes

One Channel Map/ Logical Channel Map

Yes

CABINET

Flame Retardent

Yes

Bezel Width (off Bezel) (mm)

9.5mm/9.5m/15mm

Bezel Width (on Bezel) (mm)

12mm/12m/7.5mm

Carton

61.0” x 37.2” x 7.6”

VESA™ Standard Mount Interface

400mm x 400mm

Color

Dark Titan

Dimensions with stand(WxHxD)

59.6" X 35.4 X 12.4"

Weight (with stand)

67.2 Ibs

Dimensions without stand (WxHxD)

57.6” x 33.5” x 2.3”

Weight (without stand)

63.9 lbs

Weight (with carton)

80.5 Ibs

WARRANTY

Warranty

2 Year Limited Warranty (Parts/Labor)

UPC

65LY540S

7 19192 91619 7

POWER

Stand-by

0.5W↓

Watts (typical)

61W

Power Source

110 ~ 240V, 50/60Hz

PANEL

Frame Rate

120Hz

Response Time

9 ms (G to G)

Viewing Angle(HxV)

178° x 178°

Brightness

230 cd/m2

Panel Technology

Slim Direct LED

Native Resolution

1920x1080 (FHD)

Static (Panel) Contrast Ratio

1,400:1

Dynamic Contrast Ratio (Dynamic MCI (Hz))

4,000,000:1

Panel Size (Measured Diagonally)

65” Class(64.53”)

ACCESSORIES

Cable

Power cord (1.5m, Angle Type)

INTERFACE (Rear)

RF In

1 Rear

AV In

1 (Sharing with Component in)

Digital Audio Out (Coaxial / Optical)

1 (Optical)

HDMI/HDCP Input

1 Rear

RGB In (D-sub 15pin) - PC

1 Rear

PC Audio Input

1(Share with component audio input)

RS-232C (D-Sub 9pin)

1 (Control & Service)

External Speaker Out

1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical

Component in (Y,Pb,Pr) + Audio

1 (5)
