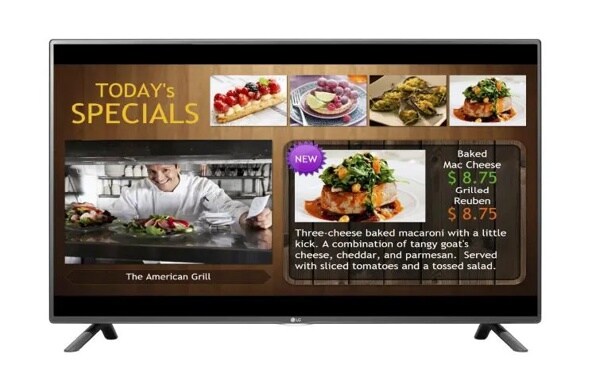

42" class (42.2”/1071mm diagonal) LX530S TV Tuner Built-In Digital Signage
DISCONTINUED
42LX530S
42" class (42.2”/1071mm diagonal) LX530S TV Tuner Built-In Digital Signage
Key Features
All Specs
- INSTANT MESSAGE DELIVERY
- ALL-IN-ONE DIGITAL SIGNAGE SOLUTION
- SIMPLE CONNECTION
- EMBEDDED SUPERSIGN W-LITE SOFTWARE
Compare
Specs & Resources
INTERFACE(SIDE)
HDMI In
1
USB (2.0)
2 (2.0)
BROADCASTING SYSTEM
Digital
ATSC, Clear QAM/VSB
Analog
NTSC
AUDIO
Sound Mode
Yes, 6 Modes (Standard, News, Music, Cinema, Sport, Game)
Audio Output
10W + 10W
Clear Voice
Yes
Sound System
2.0 ch
Sound Optimizer
Yes, 3 Modes (Normal, Wall-Mount Type, Stand Type)
VIDEO
Triple XD Engine
Yes
Resolution
1920 x 1080 (FHD)
Aspect Ratio
Yes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)
SPECIAL FEATURES
SuperSign Lite (3.0)
Yes
Audio Codec
mp3, AAC, M4A, OGG, WMA, WMA 10 Pro
USB Cloning
Yes
RTC (Real Time Clock)
Yes
IR Out
RS-232C
RJP Interface
RS232C, HDMI CEC
Remote Diagnosis/Self Diagnosis
Yes
Multi IR Code
Yes
Lock Mode
Yes
HDMI-CEC
Yes (without ARC)
RJP Compatibility
RS232C, HDMI
Remote Diagnosis
Yes
Smart Energy Saving
Yes
jpeg, jpg, jpe, BMP, PNG
Public Display Mode
Yes
CABINET
Bezel Width On (L/R, U, B) (mm)
11.0/11.0, 11.0, 16.5
Depth
2.2” (55.5mm)
VESA™ Compatible
400mm x 400mm
With Stand
37.8”x22.3”x2.2” (960mm x566.4mm x55.9mm)
Weight
20.9 lbs
Without Stand
37.8”x24.0”x8.6” (960mm x609.6mm x218.4mm)
Carton Weight
25.6 lbs
Carton (W x H x D)
41.5”x 25.4”x5.7” (1,054mm x645.2mm x 144.7mm)
OPTIONAL ACCESSORIES
AN-WF500 (Wi-Fi Dongle)
Yes
WARRANTY
WARRANTY
2-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
UPC
7 19192 19705 3
POWER
Stand-by
0.5W↓
Typical
35.5W
Voltage
110 ~ 240V, 50/60Hz
STANDARD CERTIFICATIONS
Safety
UL / cUL
Energy Star
Yes (Energy Star® 7.0)
Environment
RoHS, cUL, NOM
PANEL
Backlight Type
LED (Direct)
Viewing Angle(H x V)
178° x 178°
Panel Technology
IPS
Panel Size
42" Class (42.2”/1071mm" diagonal)
Brightness
300cd/m2
Contrast Ratio
1200:1
Response Time
8ms
Frame Rate
60Hz
Dynamic Contrast Ratio
1,000,000:1
ACCESSORIES
Cable
Power cord (1.5m, Angle Type)
Manual/ESG
Simple book
INTERFACE(REAR)
HDMI In
1
RGB In (D-sub 15pin) - PC
1
External Speaker Out
1 Rear (3.5mm phone jack)
Component In
1 (Y, Pb,Pr) + Audio (L/R)
RF In
1
Digital Audio Out (Coaxial / Optical)
1 (Optical)
AV In
1 (Sharing with Component in)
PC Audio Input
1 (Sharing with Composite Audio in)
