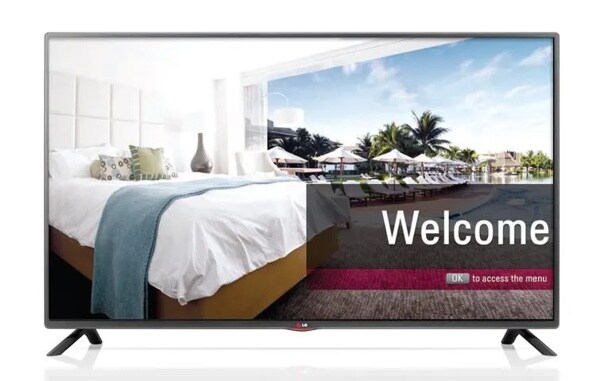

22" class (21.5" diagonal) Ultra-Slim Direct LED Commercial Widescreen
DISCONTINUED
22LY340C
22" class (21.5" diagonal) Ultra-Slim Direct LED Commercial Widescreen
Key Features
All Specs
- FOR EFFICIENT MANAGEMENT- PUBLIC DISPLAY MODE
- FOR EFFICIENT MANAGEMENT- MHL (MOBILE HIGH-DEFINITION LINK)
- FOR EFFICIENT MANAGEMENT- USB CLONING
- FOR CONVENIENCE & ENTERTAINMENT- EXTERNAL SPEAKER OUT
Compare
Specs & Resources
ACCESSORY
Cable
Power Cord (1.5m, Angle Type)
INTERFACE (Side)
HDMI In
1 Side
USB (2.0)
1 Side
BROADCASTING SYSTEM
Analog
Yes (NTSC)
Digital
Yes (ATSC /QAM/VSB)
AUDIO
Audio Output
5W + 5W
Sound Mode
6 Modes (Standard, News, Music, Cinema, Sport, Game)
Clear Voice II
Yes
Invisible Speaker
Yes
Speaker System
2.0 ch
VIDEO
Real Cinema 24p (3:3 pull down)
Yes
Aspect Ratio
Yes (16:9/Just Scan/Set By Program/4:3/Zoom)
XD Engine
Yes
SPECIAL FEATURES
USB Cloning
Yes
Smart Energy Saving
Yes
HDMI-CEC
Yes
Remote Diagnostics
Yes (USB 2.0)
Welcome Screen (Splash Image)
Yes
Lock Mode
Yes
Audio Codec
MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
Motion eye care (intelligent sensor)
Yes
RF(1/2Tuner)
Yes (1 Tuner)
MHL
Yes
HTNG-CEC 1.3
Yes
Hotel Mode/ PDM /Installer Menu
Yes
Multi IR Code
Yes
IR Out
Yes (RS232C)
Auto Off / Auto Sleep
Yes
RJP Compatibility
LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
RJP Interface
Yes (RS232C, HDMI CEC)
Kensington Lock
Yes
External Speaker Out
Yes (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω)
USB Auto Play Back
Yes
USB
Yes (USB 2.0)
Moving Picture Playback (SD/HD/Plus HD)
Divx HD
JPEG
REQUIRED LISTINGS
Safety
cUL, UL, FCC, NOM
RoHS
Yes
Energy Star 6.1
Yes
CABINET
Weight (Without Stand)
6.39 lbs
Weight
6.83 lbs
Bezel Width (off Bezel) (mm)
13mm/14.6mm/19.2mm
Bezel Width (on Bezel) (mm)
14.7mm/16.2mm/20.8mm
With Stand
20.0”x14.0”x5.3”
Without Stand
20.0” x 12.4” x 2.1”
Carton
25.5”x14.5”x4.2”
Weight (Carton)
9.70 lbs
One Pole Stand
Yes
Two Pole Stand
No
VESA™ Standard Mount Interface
75mm x 75mm
Color
Glossy Black
Flame Retardant
Yes
WARRANTY
WARRANTY
2-Year Limited Warranty (Parts/Labor)
UPC
22LY340C
7 19192 91765 1
POWER
Stand-by
0.5W↓
Watts (typical)
12W
Power Source
110 ~ 240V, 50/60Hz
PANEL
Panel Size
22” Class (21.5”)
Frame Rate
60Hz
Viewing Angle(HxV)
178°/178°
Dynamic Contrast Ratio
1,000,000:1
Panel Technology
Edge LED
Native Resolution
1366 x 768 (HD)
Response Time (G to G)
9ms
Brightness cd/m2
120 cd/m2
Static (Panel) Contrast Ratio
1,000:1
INTERFACE (Rear)
RF In
1 Rear
AV In
1 Rear (Composite)
Digital Audio Out (Coaxial / Optical)
1 (Optical)
HDMI/HDCP Input
1 Rear
RGB In (D-sub 15pin) - PC
1 Rear
PC Audio Input
1(Share with component audio input)
RS-232C (D-Sub 9pin)
1(Control & Service)
External Speaker Out
1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical
Component in (Y,Pb,Pr) + Audio
1 (5)
All image simulations are for illustration purposes only.
