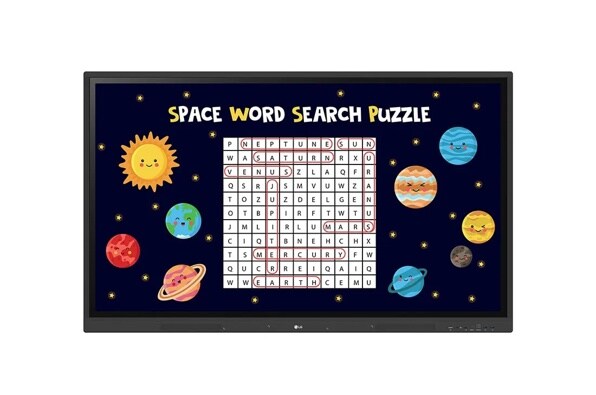

98" UHD CreateBoard Interactive Whiteboard for Seamless Teamwork and Presentations

Name: 98” UHD Multi Touch CreateBoard® Smart Board with Android 13, Google Mobile Services, Wireless Connectivity & Built-in Speakers
Brand: LG Electronics
SKU: 98TR3PJ-B
Availability: Discontinued

DISCONTINUED

98TR3PJ-B

98” UHD Multi Touch CreateBoard® Smart Board with Android 13, Google Mobile Services, Wireless Connectivity & Built-in Speakers

Key Features

All Specs

This product has been DISCONTINUED. See all our current CreateBoards.

Compare

Specs & Resources

Collapse All

System

Operating System (OS)

Android™ 9

Processor

Quad core A73

Graphics

Mail G52 Multicore 2

Storage

32 GB

Internal Memory

4 GB

Electrical

Power Type

Built-in Power

Power Consumption (Max.)

630W

Power Supply

100-240 Vac, 50/60 Hz

Power Consumption (Display Power Management - DPM)

≤0.5W

Power Consumption (Power Off)

≤0.5W

Power Consumption (Smart Energy Saving - 70%)

N/A

BTU Heat Generation (Max.)

2150 BTU

BTU Heat Generation (Typ.)

1570 BTU

Power Consumption (Typ.)

460W

Connectivity

HDMI In

Yes (x3) HDCP2.2/1.4

IR In (3.5 mm)

DVI-D In

RGB In

Yes (x1) VGA

Audio In (3.5 mm)

Yes (x1)

DisplayPort In

RS-232C In (3.5 mm 4-pin)

Yes (x1)

RJ45 (LAN) In

Yes (x1)

USB Type-A In

Yes (x5) USB 2.0 (x1) USB 3.0 (x4)

USB Type-C In

Yes (x1)

USB Type-C Power Delivery

Yes

HDMI Out

Yes

DisplayPort Out

Optical Digital Audio Out

Yes (x1)

Touch USB

Yes (x2)

RJ45 (LAN) Out

Yes (x1)

RS-232C Out (3.5 mm)

External Speaker Out

Power Delivery Alt

Yes

Bluetooth

Yes (4.0)

Built-in Wi-Fi

802.11 a/b/g/n/ac

Panel

Screen Size (Inches)

98“

Panel Technology

IPS

Backlight Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60 Hz

Brightness (Typ.)

390 nits

Brightness (Max.)

490 nits

Contrast Ratio

1200:1

Dynamic Contrast Ratio

N/A

Color Gamut

NTSC 72%

Color Depth (Number of Colors)

10 bit, 1.07 Billion Colors

Viewing Angle (H x V)

178° x 178°

Response Time (G to G)

8 ms

Surface Treatment (Haze)

Haze 28%

Operation Hours (Hours per Day / Days per Week)

16/7

Lifetime

Up to 30,000 Hrs

Orientation

Landscape

Audio/Sound

Built-in Speakers

Yes (x2) 16W

Features

Cisco Certified Compatibility

Failover

Crestron Certified Compatibility

Yes

Beacon

Play Via URL

Mechanical

Bezel Color

Black

Bezel Width

T: 29.6 mm, R/L: 26.6 mm, B: 44.5 mm

Weight

228.4 lbs / 103.6 kg

Shipping Weight

278.9 lbs / 126.5 kg

Dimensions (W x H x D)

88.4 x 52.1 x 3.5 in / 2,244.7 x 1,323.2 x 89.5 mm

Shipping Dimensions (W x H x D)

94.7 x 11.0 x 58.0 in / 2,406 x 280 x 1474 mm

Conformal Coating (Power Board)

Yes (Partial)

Handle

Yes

VESA™ Standard Mount Interface

800 × 600 mm

Overlay Touch Compatibility

Regulatory & Certifications

UL Certification

ISTA6 (Packaging)

ePEAT US (Environmental)

CE (Regulatory)

Yes

ERP (Environmental)

Yes

FCC (Regulatory)

EMC Class A

IP Rating (Solid / Liquid Ingress)

Energy Star (Environmental)

TAA Compliance

Warranty & Other

Warranty

3 Year Limited

Assembled In

China

Onscreen Display Languages

Arabic (Egypt), Catalan, Czech, Denmark, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Netherlands（Dutch), Norwegian, Polski, Portuguese (Brazil), Portuguese (Europe), Romanian, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Türkçe, Ukrainian

UPC

1 95174 05045 3

Optional Accessories

Basic Accessories (included)

Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module

Touch Panel

Available Object Size for Touch

Ø2 mm ↑

Response Time (PC Win10, Education Mode)

≤12 ms

Writing Height

≤3 ms

Accuracy (Typ.)

±1.5 mm

Interface

USB 3.0

Active Pen Interface

N/A

Multi Touch Point (Max.)

20 Points

Protection Glass Thickness

4T (Anti-Glare)

Protection Glass Transmission

87%

Operating System Support

Windows 7 / 8 / 10 / XP / Linux / Mac / Android (Windows XP / Linux / Mac Support one point touch)

Smart Features

Screen Share

Yes (Screenshare pro)

Hospitality Features

Pro:Idiom®

Wake on LAN

Yes

Hardware Features

Local Key Operation

Yes

Auto Brightness Sensor

Yes

Power Indicator

Yes

Software Features

Network Ready

RS-232C Sync

Gapless Playback

W/B Setting by Grayscale

Picture-by-Picture (PBP)

webRTC (Real Time Communication)

Video Tag

Control Manager

PM mode

Picture-in-Picture (PIP)

Local Network Sync

Screen Rotation

Smart Energy Saving

Yes (Energy Saving)

SI Server Setting

Setting Data Cloning

Tile Mode Setting

External Input Rotation

Status Mailing

No Signal Image

SNMP

Auto Set ID

Scan Inversion

Backlight Sync

ISM Method

Group Manager

Brightness Compensation

Booting Logo Image

Yes

Local Contents Scheduling

HDMI-CEC

Yes

USB Plug & Play

Built-in Software

LG ConnectedCare™ DMS

Yes

LG CreateBoard® Lab, Note 2.0

LG CreateBoard® Share

OfficeSuite

Environmental Conditions

Operation Humidity

10% to 90%

Operation Temperature

32°F to 104°F / 0°C to 40°C

OPS Compatibility

OPS Type Compatible

Yes (Slot)

OPS Power Built-in

Yes

System

Operating System (OS)

Android™ 9

Processor

Quad core A73

Graphics

Mail G52 Multicore 2

Storage

32 GB

Internal Memory

4 GB

Electrical

Power Type

Built-in Power

Power Consumption (Max.)

630W

Power Supply

100-240 Vac, 50/60 Hz

Power Consumption (Display Power Management - DPM)

≤0.5W

Power Consumption (Power Off)

≤0.5W

Power Consumption (Smart Energy Saving - 70%)

N/A

BTU Heat Generation (Max.)

2150 BTU

BTU Heat Generation (Typ.)

1570 BTU

Power Consumption (Typ.)

460W

Connectivity

HDMI In

Yes (x3) HDCP2.2/1.4

IR In (3.5 mm)

DVI-D In

RGB In

Yes (x1) VGA

Audio In (3.5 mm)

Yes (x1)

DisplayPort In

RS-232C In (3.5 mm 4-pin)

Yes (x1)

RJ45 (LAN) In

Yes (x1)

USB Type-A In

Yes (x5) USB 2.0 (x1) USB 3.0 (x4)

USB Type-C In

Yes (x1)

USB Type-C Power Delivery

Yes

HDMI Out

Yes

DisplayPort Out

Optical Digital Audio Out

Yes (x1)

Touch USB

Yes (x2)

RJ45 (LAN) Out

Yes (x1)

RS-232C Out (3.5 mm)

External Speaker Out

Power Delivery Alt

Yes

Bluetooth

Yes (4.0)

Built-in Wi-Fi

802.11 a/b/g/n/ac

Panel

Screen Size (Inches)

98“

Panel Technology

IPS

Backlight Type

Direct

Aspect Ratio

16:9

Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60 Hz

Brightness (Typ.)

390 nits

Brightness (Max.)

490 nits

Contrast Ratio

1200:1

Dynamic Contrast Ratio

N/A

Color Gamut

NTSC 72%

Color Depth (Number of Colors)

10 bit, 1.07 Billion Colors

Viewing Angle (H x V)

178° x 178°

Response Time (G to G)

8 ms

Surface Treatment (Haze)

Haze 28%

Operation Hours (Hours per Day / Days per Week)

16/7

Lifetime

Up to 30,000 Hrs

Orientation

Landscape

Audio/Sound

Built-in Speakers

Yes (x2) 16W

Features

Cisco Certified Compatibility

Failover

Crestron Certified Compatibility

Yes

Beacon

Play Via URL

Mechanical

Bezel Color

Black

Bezel Width

T: 29.6 mm, R/L: 26.6 mm, B: 44.5 mm

Weight

228.4 lbs / 103.6 kg

Shipping Weight

278.9 lbs / 126.5 kg

Dimensions (W x H x D)

88.4 x 52.1 x 3.5 in / 2,244.7 x 1,323.2 x 89.5 mm

Shipping Dimensions (W x H x D)

94.7 x 11.0 x 58.0 in / 2,406 x 280 x 1474 mm

Conformal Coating (Power Board)

Yes (Partial)

Handle

Yes

VESA™ Standard Mount Interface

800 × 600 mm

Overlay Touch Compatibility

Regulatory & Certifications

UL Certification

ISTA6 (Packaging)

ePEAT US (Environmental)

CE (Regulatory)

Yes

ERP (Environmental)

Yes

FCC (Regulatory)

EMC Class A

IP Rating (Solid / Liquid Ingress)

Energy Star (Environmental)

TAA Compliance

Warranty & Other

Warranty

3 Year Limited

Assembled In

China

Onscreen Display Languages

UPC

1 95174 05045 3

Optional Accessories

Basic Accessories (included)

Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller (include battery 2ea), Wifi module

Touch Panel

Available Object Size for Touch

Ø2 mm ↑

Response Time (PC Win10, Education Mode)

≤12 ms

Writing Height

≤3 ms

Accuracy (Typ.)

±1.5 mm

Interface

USB 3.0

Active Pen Interface

N/A

Multi Touch Point (Max.)

20 Points

Protection Glass Thickness

4T (Anti-Glare)

Protection Glass Transmission

87%

Operating System Support

Windows 7 / 8 / 10 / XP / Linux / Mac / Android (Windows XP / Linux / Mac Support one point touch)

Smart Features

Screen Share

Yes (Screenshare pro)

Hospitality Features

Pro:Idiom®

Wake on LAN

Yes

Hardware Features

Local Key Operation

Yes

Auto Brightness Sensor

Yes

Power Indicator

Yes

Software Features

Network Ready

RS-232C Sync

Gapless Playback

W/B Setting by Grayscale

Picture-by-Picture (PBP)

webRTC (Real Time Communication)

Video Tag

Control Manager

PM mode

Picture-in-Picture (PIP)

Local Network Sync

Screen Rotation

Smart Energy Saving

Yes (Energy Saving)

SI Server Setting

Setting Data Cloning

Tile Mode Setting

External Input Rotation

Status Mailing

No Signal Image

SNMP

Auto Set ID

Scan Inversion

Backlight Sync

ISM Method

Group Manager

Brightness Compensation

Booting Logo Image

Yes

Local Contents Scheduling

HDMI-CEC

Yes

USB Plug & Play

Built-in Software

LG ConnectedCare™ DMS

Yes

LG CreateBoard® Lab, Note 2.0

LG CreateBoard® Share

OfficeSuite

Environmental Conditions

Operation Humidity

10% to 90%

Operation Temperature

32°F to 104°F / 0°C to 40°C

OPS Compatibility

OPS Type Compatible

Yes (Slot)

OPS Power Built-in

Yes
