Box Type Thin Client

Name: Box Type Thin Client
Brand: LG Electronics
SKU: CK500N-3C
Availability: Discontinued

DISCONTINUED

CK500N-3C

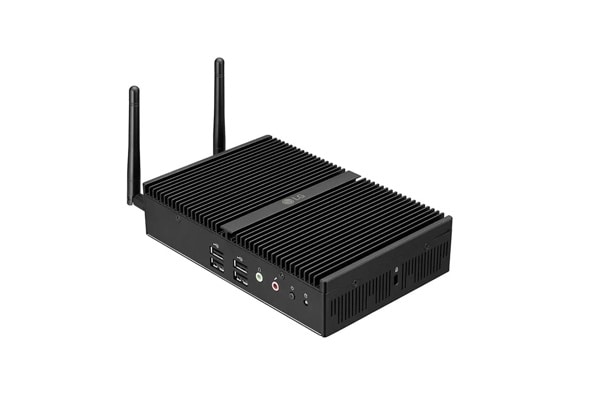

Box Type Thin Client

Key Features

All Specs

Support up to 4K Resolution
Wireless, Bluetooth™, Gigabit LAN
Display Port, HDMI, DVI-I
2 USB 3.0, 4 USB 2.0 Ports
Fanless Design

Compare

Specs & Resources

Collapse All

CONTROL KEY

Key Description

Power

Key Type

Tact

LED Color(On Mode)

White (PC Power / HDD)

[ Key Location ]

Front

LED Color(Power save mode)

LED OFF

Key Number

Special Feature

General Function - DDC/CI

General Function - HDCP

General Function - Intelligent Auto (Auto Adjustment)

General Function - Key Lock

General Function - Plug & Play

General Function - Remote Control

General Function - Response Time

General Function - sRGB

PC Features - Etc.

PC Features - SD Card Slot

PC Features - Webcam

Picture - PBP / PIP

Picture - Picture Mode

Picture - Ratio

Picture - Reader Mode

Sound - Maxx Audio

Special Feature - Color Calibrated

Special Feature - Dual Control

Special Feature - Dual Smart Solution (Dual web, Dual Display, Smart Resolution )

Special Feature - Flicker safe

Special Feature - Motion Energy Saver

Special Feature - Off Timer

Special Feature - OSC (On Screen Control / Screen Split)

Special Feature - Power Charge

Special Feature - SIX Axis Control

Special Feature - Smart Energy Saving

Special Feature - Super Resolution+

Special Feature - Touch

Special Feature - True Color Pro / Finder

SECURITY

Kenshinton Lock Slot

YES

COLOR

Back Cover

Matt Black (Texture)

Front

Matt Black (Texture)

STANDARD

DisplayPort

Yes

EPA

EPEAT

FCC-B

Yes

ISO 9241-307

PVC-Free

ROHS, REACH

TCO (Ver.)

TUV-Ergo

Yes

TUV-GS

Yes

UL(cUL)

Yes

Windows

TUV-Type

YES

Bluetooth

IEC60601

Wi-Fi

Size/Weight

Dimension (WxDxH) - Box (mm)

231mm x 81mm x 179mm

Dimension (WxDxH) - Set (without Stand, mm)

180mm x 39.9mm x 117mm

Dimension (WxDxH) - VESA / Wall Mount (mm)

100 x 100, 75 x 75 (wall mount)

Stuffing - Pallet(20ft/40ft/40ft HC)

2,500/5,250/-(Air), 3,000/6,300/-(Vessel)

Weight - Box (Kg)

1.85kg

Weight - Set (without Stand, Kg)

1kg

POWER

Input

100~240V (50/60Hz)

Type

Adapter

Output

48 Watt

Consumption - DC Off(Max)

0.6Watt

Consumption - Long Idle(Display OFF)

6.0Watt

Consumption - Short Idle(Display ON)

10Watt

Consumption - Sleep Mode(Max)

1.0Watt

Consumption - TEC (kWh)

41.4 kWh

INTERFACE

Networking - LAN

1 x RJ45 : Ethernet 10/100/1000 (Support Wake on LAN)

Networking - Wireless

Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), External Antenna (Dipole)

WRAP

Handle

Packing Material

A-Flute

Stand Packing Type

Box Printing Type

Flexo

Stacking Type

Vertical

Etc

Humidity Range

Operating : 20%~80%, Storage : 10%~90%

Temperature Range

Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C

Warranty

3 Years

Accessory

HDMI

Power Cord

YES

USB

CD (Manual / Software)

YES(Paper Manual)

DisplayPort

D-Sub

DVI to VGA Gender

YES

DVI-D

Easy Setup Guide

External Antenna (Wi-Fi)

YES

External Calibrator

HDMI to VGA Gender

Input Device

PC Audio

Power Adapter

YES

RJ45 Gender

VESA Bracket

YES

SPEAKER

Type

Audio output (watt)

Display Support

4096x2160@50Hz, 3840x2160@60Hz (via DisplayPort 1.2 out), 4096x2160@24Hz, 3840x2160@30Hz, 2560x1440@60Hz (via HDMI1.4 out), 1600x1200@60Hz (via DVI out)

Expansion Slot

M.2 Slots x 2 (Slot 1 : 32GB SSD, Slot 2 : WiFi + Bluetooth card) * Note: Slot 1 should be capable of supporting both SATA and PCIe NVMe SSDs. SO-DIMM x 1 (Slot 1 : 4GB DDR4)

Graphics

Integrated Graphics

Management Console

ODD

Operation System

Non OS

Processor

AMD Pairie Falcon GX-212JJ

S/W (Pre-Installed App)

Storage

32GB (M.2 SSD), M.2 2280/2242 SSD Supported (SATA/PCIe supported)

System Memory

8GB DDR

TPM (Trust Platform Module)

Software TPM

Certifications (Based on US ratings)
