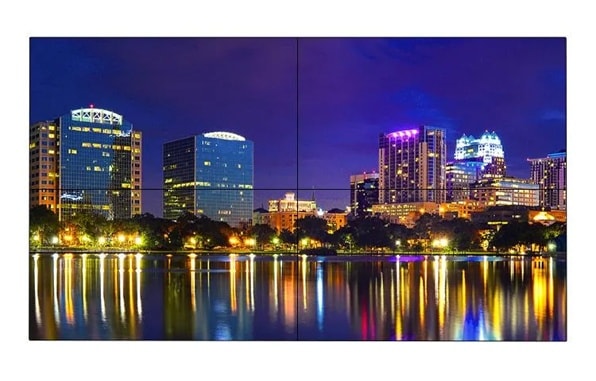

55" Class (54.64” Diagonal) 1.8mm Super Narrow Bezel Video Wall

Name: 55" Class (54.64” Diagonal) 1.8mm Super Narrow Bezel Video Wall
Brand: LG Electronics
SKU: 55VH7B-B
Availability: Discontinued

DISCONTINUED

55VH7B-B

55" Class (54.64” Diagonal) 1.8mm Super Narrow Bezel Video Wall

Key Features

All Specs

SUPER NARROW LESS THAN 2MM BEZEL PREMIUM DISPLAY
LAN DAISY-CHAIN PERFORMANCE
700 NIT DISPLAY – 24/7 OPERATION

Compare

Specs & Resources

Collapse All

INPUT

RS232C IN

Yes

IR Receiver

Yes

RJ45 In

Yes

USB (USB3.0, USB2.0)

Yes

OPS

Yes

Analog

RGB

DVI-D

Yes

HDTV Formats

HDMI : 720p, 1080i, 1080p

HDMI

Yes

OTHER

Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

UPC

7 19192 19831 9

OUTPUT

RS232C OUT

Yes

Audio Out

Yes

DP Out

Yes (1), DP1.2a/HDCP1.3

CERTIFICATIONS

Safety, EMC, ErP

UL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / FCC Class "A" / CE / KCC

ENVIRONMENTAL CONDITIONS

Operation Temperature

32°F ~ 104°F

Operation Humidity

10%~90%

SOFTWARE COMPATIBILITY

SuperSign-C

Yes (SuperSign C software is available at http://www.lg.com/us/commercial/video-walls)

MEDIA PLAYER COMPATIBILITY

External Media Player Attachable

Yes (MP500/MP700)

OPS Type Compatible

Yes

POWER

Power Type

Built-in Power

Power Supply

100–240V~, 50/60Hz

Smart Energy Saving

110W

Power Consumption-DPM

0.7W

Power off

0.5W

Power Consumption (Typ)

220W

SPECIAL FEATURES

Temperature Sensor

Yes

Password Change

Yes

Brightness/Contrast /Backlight

Yes

Time

Clock, On/off Time, Sleep Timer, Power on Delay

Internal Memory

8GB (System 4GB + Available 4GB)

Still Image Diagnosis

Yes

Power On Delay

0 ~ 255

DPM Select

Yes

Advanced

Clear White, Dynamic Contrast, Dynamic Color, Noise Reduction, Gamma, Black Level, Skin color, Digital Noise Reduction

Digital Audio Input

Yes

USB Cloning

Logo image download, Sent to USB, Receive from USB

Embedded Template

Yes

Tile Mode

Yes (Up to 15x15)

File Play With USB

Yes

Input Label

Yes (PC/DTV)

Language (OSD)

English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek

Fail Over

USB, RGB, DVI, HDMI, Internal Memory

SetID Setup

Manual, Auto

OPS PC Power Control

Sync On, Sync On/Off, Disable

Check Screen

Yes

Wake On LAN

Yes

PM Mode

Yes

Lock Mode

USB

HDMI-CEC

Yes

Pivot Mode

Yes

Intelligent Auto

Yes

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

Frameware Update (LAN)

Yes

Sync Mode

Time sync, Content sync

DST(Summertime Saving)

Yes

Key Operation

IR operation, Local key operation

ISM Method

Normal, Orbiter, inversion, White wash, User Image/Video, Washing Bar

Configuration Setup

USB auto Playback

Smart Energy Saving

Yes

Content Rotation

0,90

Source Selection

RGB, HDMI, DVI, DP, OPS, USB

Wi-Fi

WiFi Dongle Ready

Media Share

Yes

Position/Size

Yes

Calibration Mode

Yes

Natural Mode @Tile Mode

Yes

Energy Saving

Yes, Off / Minimum / Medium / Maximum / Screen Off

Power On Status

Standby, PWR, LST

OSD Portrait Mode

0,90

Local Time Auto Setting

Yes

Beacon

Yes

Auto Config/Phase

Yes

Contents Scheduling

USB, Internal memory

PANEL

Panel Technology

IPS

Aspect Ratio

16:9

Brightness

700 cd/m2

Native Resolution

1920 x 1080 (FHD)

Color Gamut

72%

Viewing Angle (H x V)

178°/178°

Dynamic CR

500,000 : 1

Orientation

Portrait & Landscape

Color Depth

1.06 Billion

Pixels(H x V x 3)

6220800

Running Time

24Hr

Contrast Ratio

1,400:1

Response Time

8ms (G to G BW)

Screen Size

55” class (54.64” diagonal)

ACCESSORIES

Basic

Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screw

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V) OPS Kit (KT-OPSA), HD Base T(EB-B100)

CABINET

Dimensions (W x H x D)

47.69” x 26.86” x 3.41”

Weight (Carton)

55.12lbs

Weight

43.65lbs

Bezel Width

0.9mm (Top/Bottom/Left/Right)

Dimensions (Carton) (W x H x D)

53.27” x 33.66” x 10.35”

Handle

Yes

INPUT

RS232C IN

Yes

IR Receiver

Yes

RJ45 In

Yes

USB (USB3.0, USB2.0)

Yes

OPS

Yes

Analog

RGB

DVI-D

Yes

HDTV Formats

HDMI : 720p, 1080i, 1080p

HDMI

Yes

OTHER

Warranty

3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

UPC

7 19192 19831 9

OUTPUT

RS232C OUT

Yes

Audio Out

Yes

DP Out

Yes (1), DP1.2a/HDCP1.3

CERTIFICATIONS

Safety, EMC, ErP

UL / cUL / CB / TUV / KC / FCC Class "A" / CE / KCC / FCC Class "A" / CE / KCC

ENVIRONMENTAL CONDITIONS

Operation Temperature

32°F ~ 104°F

Operation Humidity

10%~90%

SOFTWARE COMPATIBILITY

SuperSign-C

Yes (SuperSign C software is available at http://www.lg.com/us/commercial/video-walls)

MEDIA PLAYER COMPATIBILITY

External Media Player Attachable

Yes (MP500/MP700)

OPS Type Compatible

Yes

POWER

Power Type

Built-in Power

Power Supply

100–240V~, 50/60Hz

Smart Energy Saving

110W

Power Consumption-DPM

0.7W

Power off

0.5W

Power Consumption (Typ)

220W

SPECIAL FEATURES

Temperature Sensor

Yes

Password Change

Yes

Brightness/Contrast /Backlight

Yes

Time

Clock, On/off Time, Sleep Timer, Power on Delay

Internal Memory

8GB (System 4GB + Available 4GB)

Still Image Diagnosis

Yes

Power On Delay

0 ~ 255

DPM Select

Yes

Advanced

Clear White, Dynamic Contrast, Dynamic Color, Noise Reduction, Gamma, Black Level, Skin color, Digital Noise Reduction

Digital Audio Input

Yes

USB Cloning

Logo image download, Sent to USB, Receive from USB

Embedded Template

Yes

Tile Mode

Yes (Up to 15x15)

File Play With USB

Yes

Input Label

Yes (PC/DTV)

Language (OSD)

Fail Over

USB, RGB, DVI, HDMI, Internal Memory

SetID Setup

Manual, Auto

OPS PC Power Control

Sync On, Sync On/Off, Disable

Check Screen

Yes

Wake On LAN

Yes

PM Mode

Yes

Lock Mode

USB

HDMI-CEC

Yes

Pivot Mode

Yes

Intelligent Auto

Yes

SuperSign Server Setup

Signage name, Server IP setting, Server IP Status

Frameware Update (LAN)

Yes

Sync Mode

Time sync, Content sync

DST(Summertime Saving)

Yes

Key Operation

IR operation, Local key operation

ISM Method

Normal, Orbiter, inversion, White wash, User Image/Video, Washing Bar

Configuration Setup

USB auto Playback

Smart Energy Saving

Yes

Content Rotation

0,90

Source Selection

RGB, HDMI, DVI, DP, OPS, USB

Wi-Fi

WiFi Dongle Ready

Media Share

Yes

Position/Size

Yes

Calibration Mode

Yes

Natural Mode @Tile Mode

Yes

Energy Saving

Yes, Off / Minimum / Medium / Maximum / Screen Off

Power On Status

Standby, PWR, LST

OSD Portrait Mode

0,90

Local Time Auto Setting

Yes

Beacon

Yes

Auto Config/Phase

Yes

Contents Scheduling

USB, Internal memory

PANEL

Panel Technology

IPS

Aspect Ratio

16:9

Brightness

700 cd/m2

Native Resolution

1920 x 1080 (FHD)

Color Gamut

72%

Viewing Angle (H x V)

178°/178°

Dynamic CR

500,000 : 1

Orientation

Portrait & Landscape

Color Depth

1.06 Billion

Pixels(H x V x 3)

6220800

Running Time

24Hr

Contrast Ratio

1,400:1

Response Time

8ms (G to G BW)

Screen Size

55” class (54.64” diagonal)

ACCESSORIES

Basic

Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screw

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V) OPS Kit (KT-OPSA), HD Base T(EB-B100)

CABINET

Dimensions (W x H x D)

47.69” x 26.86” x 3.41”

Weight (Carton)

55.12lbs

Weight

43.65lbs

Bezel Width

0.9mm (Top/Bottom/Left/Right)

Dimensions (Carton) (W x H x D)

53.27” x 33.66” x 10.35”

Handle

Yes
