DISCONTINUED
75XS4G-B
75” XS4G-B Series UHD Window Facing High Brightness Display with Quad Core SoC, webOS™ 4.1, Double-sided Use, Built-in Wi-Fi, & Conformal Coating
Key Features
All Specs
- Brightness : 4,000 nits (Typ.) / 3,200 nits (Min.)
- Resolution : ULTRA HD (3,840 x 2,160)
- Bezel : 13.8 mm (Even Bezel)
- Double-sided Usage with Dedicated Bracket
- Built-in Wi-Fi & Bluetooth
- Web-based Monitoring Solution
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs
Attract Attention with this UHD High Brightness Display
With a brightness of 4,000 nits* and UHD picture quality, 75XS4G-B clearly deliver content even in the full sun of the day. Added Quarter Wave Plate (QWP) enables clear visibility to outdoor patrons even when they are wearing polarized sunglasses.
*Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits.
*Brightness of 75XS4G : Max. 4,000 nits, Typ. 3,200 nits.
Slim Design Blends into Virtually any Window Display
The slim design of 75XS4G-B allows the message to be front and center, while the display blends into the store.

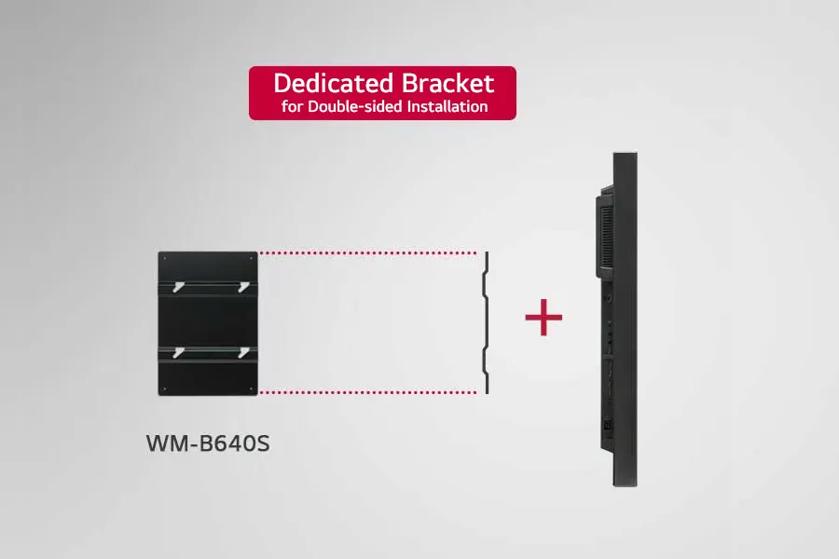

Create an Indoor Display using the Dedicated Bracket
75XS4G-B is designed with a back that allows another LG UHD display to be attached via the use of the dedicated bracket. Retail store owners can create indoor and outdoor signage in the same space.*
*LG UHD compatible displays include 65/55/49UH7 Series, 65/55/49UH5 Series, and 65/55/49UM3 Series display.
*LG UHD compatible displays include 65/55/49UH7 Series, 65/55/49UH5 Series, and 65/55/49UM3 Series display.
Wide Operating Temperature Range
75XS4G-B can operate at various temperatures from 0-40°C (32-104°F).
Conformal Coating
75XS4G-B has conformal coating, which is a thin protective film/breathing membrane that filter water vapor and solid debris, improving the reliability of the display.
Install Using Leveler Tool
The 75XS4G-B is equipped with a “Leveler Tool” which shows users how the device is tilted, so the display can be installed level.

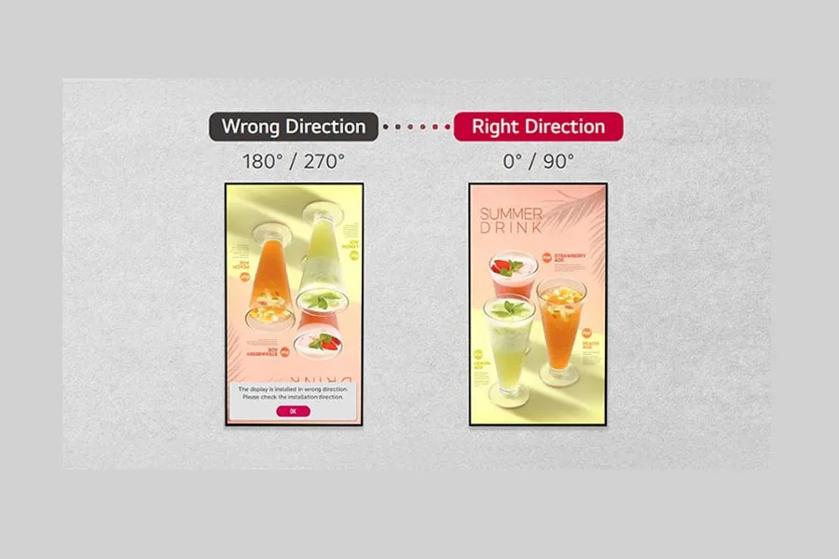

Alert for Right Direction
The 75XS4G-B is equipped with a “horizontal sensor”, so the display can be installed the correct way.
High Performance with webOS™
Quad Core System on Chip (SoC) allows 75XS4G-B to execute several tasks at the same time without a separate media player. In addition, webOS™ 4.1 platform enhances user convenience with intuitive UI and simple app development tools.
Multiple Display Control with a Remote Control
Multiple device controls are available through the RJ45 & RS-232C ports, so even double-sided displays can be easily controlled simultaneously with a remote control.
Easy Content Distribution and Software Updates
75XS4G-B features embedded Wi-Fi, Bluetooth and Beacon making it easy to distribute content wirelessly and update Firmware. Using Beacon and Bluetooth Low Energy (BLE), Shop managers can do various promotional activities, such as providing promotional coupons or product information to visitor in real time.
Web Monitoring (Control Manager)
This web-based monitoring solution is user-friendly and enables the user to have full access virtually anywhere at virtually any time from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
Software Features
Gapless Playback
Yes
Picture-by-Picture (PBP)
Yes (2)
Control Manager
Yes
SI Server Setting
Yes
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
Yes
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
Yes
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
Yes
Video Tag
Yes (4 | Ext. Source (x2), Video (x4))
PM mode
No
Picture-in-Picture (PIP)
Yes
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
No
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
No
Hospitality Features
Pro:Idiom®
Yes
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
790W
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Power Off)
Less than 0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
Less than 0.5W
Power Consumption (Smart Energy Saving - 70%)
400 W
BTU Heat Generation (Max.)
2,696 BTU
BTU Heat Generation (Typ.)
2,559 BTU
Power Consumption (Typ.)
750 W
Mechanical
Bezel Color
Black
Bezel Width
Even bezel : 13.8mm
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
Not Available
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
87.4 lbs / 39.6 kg
Weight Signage Box
N/A
Weight with Stand
N/A
Shipping Weight
110.2 lbs / 50 kg
Dimensions (W x H x D)
64.9 x 37.7 x 4.1 in / 1,679.2 x 957.6 x 104 mm
Dimensions with Stand (W x H x D)
N/A
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
71.5 x 43.5 x 11.2 in / 1,816 x 1106 x 285 mm
Conformal Coating (Power Board)
Yes
Handle
Yes
VESA™ Standard Mount Interface
600 x 400 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
Yes
Acceleration (Gyro) Sensor
Yes
Current Sensor
No
BLU Sensor
N/A
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
N/A
Features
Crestron Certified Compatibility
No
Beacon
Yes
Play Via URL
Yes
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.1
Processor
No
Graphics
No
Storage
No
Internal Memory
16 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x2) HDCP 2.2/1.4
IR In (3.5 mm)
Yes (x1)
IR In (3.5 mm)
Yes
DVI-D In
No
RGB In
No
Audio In (3.5 mm)
No
DisplayPort In
Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x1) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
Yes (x1) input DPDMI
DisplayPort Out
No
Audio Out (3.5 mm)
No
Touch USB
Yes (x1) L/R, 10W+10W
IR Out
No
RJ45 (LAN) Out
No
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
Yes (x1)
Bluetooth
No
Daisy Chain
No
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arab, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish, Türkçe
Optional Accessories
Double sided Bracket (Landscape & Portrait : WM-B640S)
UPC
1 95174 00312 1
Basic Accessories (included)
Remote Controller (including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver(w/ Ambient Light Sensor), RS-232C Adapter, IR Sheet
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
30°F to 104°F / 0°C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 30°F to 86°F (Direct Sunlight)
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
No
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
Yes
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
Yes
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
No
SuperSign™ Cloud
No
Mobile CMS
No
ConnectedCare™
Yes
Panel
Screen Size (Inches)
75"
Panel Technology
IPS, M+
Backlight Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60 Hz
Brightness (Typ.)
4,000 nits
Brightness (Max.)
Not Available
Brightness (Min.)
3,200 nits
Contrast Ratio
1200:1
Dynamic Contrast Ratio
500000:1
Color Gamut
NTSC 68%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
8 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
3%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
Yes
¹ This feature may have a restriction depending on the TV models.
All image simulations are for illustration purposes only.
