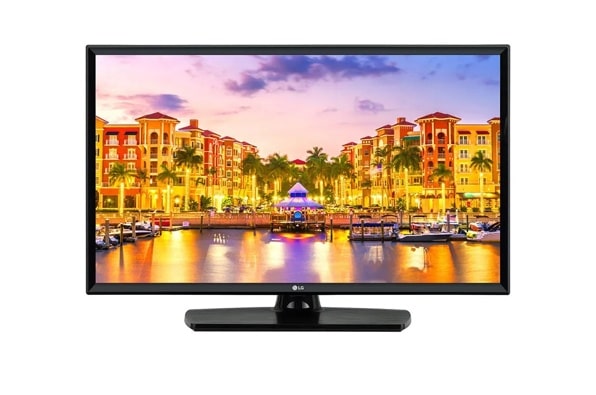

32'' LN570H Series HD Pro:Centric® Hotel TV
32LN570HBUA
32'' LN570H Series HD Pro:Centric® Hotel TV
Key Features
All Specs
- Pro:Centric® Direct hotel content management solution
- Pro:Idiom® Digital Rights Management (DRM) technology
- 3 Year Limited Warranty
- webOS22
- HDR 10 Pro
- VESA Compatible
Compare
Features and Specs
Pro:Centric Direct
Pro:Centric® Direct (PCD) offers simple editing tools, making it easy to perform service and IP network-based remote management. This system also enables users to easily personalize their experience by providing a customizable interface. PCD provides IoT-based in-room control, as well as voice control, using LG’s Natural Language Processing (NLP).¹
Game Optimizer
LG Game Optimizer will get you and keep you in the action through selection of game mode, picture adjustment and etc.
Pro:Idiom®
Digital Rights Management (DRM) technology provides access to premium content to help assure rapid and broad deployment of HDTV and other high-value digital content.
Software Features
Wake on RF
Yes
webRTC (Real Time Communication)
No
Video Tag
Yes (x2)
Wake-on-LAN (WOL)
No
SNMP
No
Hospitality Features
Home (Launcher Bar)
No
Instant On
Yes
USB Auto Playback+
No
Welcome Screen (Splash Image)
Yes
EzManager
Yes
Pillow Speaker Compatibility
N/A
Motion Eye Care
No
One Channel Map
LCM
Welcome Video
No
Insert Image
Yes
HTNG-CEC
1.4
RJP (Remote Jack Pack) Compatibility
Teleadapt / Guestlink (HDMI CEC)
USB Auto Playback
No
Lock Mode
No
Installer Menu
Yes
Public Display Mode
No
Hotel Mode
No
Port Block
Yes
Electrical
Power Consumption (Max.)
45W
Power Supply
100-240 Vac, 50/60 Hz
Optional DC Power Supply Input (AM-PW188A)
N/A
Power over Coax (PoC)
N/A
Optional DC Power Supply Output (AM-PW188A)
N/A
Power Consumption (Standby)
Less than 0.5W
Power Consumption (Typ.)
38 W
Mechanical
Color
Not Available
Back Color
Not Available
Bezel Width (On Bezel)
L/R/U: 20.7 mm, B: 23.4 mm
Bezel Width (Off Bezel)
L/R/U: 18.8 mm, B: 21.6 mm
Stand Type
1 pole - Swivel
Weight
10.7 lbs / 4.85 kg
Weight with Stand
13.3 lbs / 6.05 kg
Shipping Weight
16.2 lbs / 7.35 kg
Dimensions (W x H x D)
29.1 x 17.4 x 3.3 in / 739 × 441 × 84 mm
Dimension with Stand (W x H x D)
29.1 x 19.5 x 9.5 in / 739 × 495 × 241 mm
Dimensions with Top Mount (W x H x D)
N/A
Shipping Dimensions (W x H x D)
35.6 x 20.9 x 6.4 in / 905 × 530 × 162 mm
Credenza / Security Aperture
Yes
Kensington Lock
Yes
Lock Down Plate
Yes
VESA™ Standard Mount Interface
200 x 200 mm
Audio/Sound
Built-in Speakers
Yes (x2) 10W
AI Acoustic Tuning
No
AI Sound
Yes
LG Sound Sync
No
Sound Mode
No
One Touch Sound Tuning
No
Clear Voice
No
Broadcasting
Digital (Terrestrial, Cable, Satellite)
ATSC, Clear QAM
Analog (NTSC/SECAM/PAL)
NTSC
Global IPTV Support (IPStreaming)
No
MPEG-2 / MPEG-4 H.264 Decoding
No
Closed Caption
Not Available
Features
IR Signal from Receiver (Logic High Pulses)
RS-232C
Update Time
No
VLAN ID
No
Embedded b-LAN
Yes
Beacon
No
SI Compatible (TVLink Interactive)
No
NTP Sync Timer
Yes
Multi-code IR
Yes
Voice Recognition (Standalone / Solution)
No
V-Lan Tag
No
Mobile Connection Overlay
No
Diagnostics
Yes (USB)
LG TV Plus App
No
Energy Saving Mode
Yes
External Control Interface
Yes (MPI, RS232C)
IoT
No
IR Signal from Receiver (Logic Low Pulses)
MPI
XD Engine
No
USB Data Cloning
Yes
Picture Mode
Not Available
System
Operating System (OS)
webOS 22
Main Processor (SoC)
No
Connectivity
HDMI In
Yes (x3)
HDMI-ARC
Yes (x1) v2.0
RF In (Antenna / Cable)
Yes (x1)
RS-232C (3.5 mm)
Yes (x1)
RS-232C (D-sub 9-pin)
No
RJ45 (LAN)
No
RJ45 (AUX LAN)
No
RJ45 (Ethernet)
Yes (x1)
MPI (RJ12)
Yes (x1)
ECI (RJ12)
No
Service Only (3.5 mm)
Yes (x1)
USB Type-A In
Yes (x1) v2.0
MPI (RJ45)
No
Simplink (HDMI-CEC)
Yes (x1) HDMI 1.4
Simplink (HDMI-CEC) plus CEC-HTNG
Yes (x1) 1.4
AV In (3.5 mm)
Yes (x1)
DC In
No
Pillow Speaker Interface (6 Pin)
No
TV Link CFG (3.5 mm)
N/A
Audio Out (3.5 mm)
Yes (x1)
Digital Audio Out (Optical)
Yes (x1)
IR Out
Yes (x1)
Headphone Out (3.5 mm)
No
Built-in Wi-Fi
No
Port Location
Rear, Side
RF / AC In (Power Over Coax)
No
Debug (3.5 mm)
No
Speaker Out / Line Out
No
Warranty & Other
Assembled In
Not Available
Warranty
3 Year Limited
Onscreen Display Languages
Not Available
UPC
Not Available
Basic Accessories (included)
Detached 1.8 m Power Cable, AV In Adaptor Cable (3.5 mm TRRS Plug to 3 RCA Jacks)
Regulatory & Certifications
UL Certification
Yes
NOM
No
CEC (Regulatory)
No
RoHS (Environmental)
No
FCC (Regulatory)
Yes
ISO 22196 (Antimicrobial)
No
NRCan
No
ETL
No
Conformal Coating
No
Smart Features
Smart Home (Launcher Bar)
No
Gallery Mode
No
Quick Access
No
Web Browser
No
Pre-loaded Apps
No
Magic Remote Compatibility
No
SW Clock (World Clock / Alarm)
No
Soft AP
No
Moving Picture Playback (SDD/Plus HD)
No
Auto Off / Sleep Timer
No
Bluetooth Audio Playback
No
Bluetooth Sound Sync (Audio Playback)
No
Screen Share (Miracast)
No
Smart Share
No
Multi View
N/A
Home Office
N/A
SDP Server Compatibility
No
DIAL
No
Hospitality Solutions
Pro:Centric® Smart CMS
Yes
Pro:Centric® Direct
Yes
Pro:Centric® V
Yes
Pro:Idiom® DRM (S/W, Mobile, Lite)
Yes
Pro:Idiom® Media DRM
Yes
Pro:Centric® Data Streaming (IP)
No
Pro:Centric® Data Streaming (RF)
No
Pro:Centric Server
Not Available
Pro:Centric® IP Return Path
No
HCAP (GEM / FLASH / HTML)
No
Service Carousel (TLX, Firmware)
No
Mutlicast Ready
No
Unicast Ready
No
Quick Menu Version
N/A
LG Server Compatibility
Not Available
Panel
Screen Size (Inches)
32"
Panel Technology
LCD
Nano Cell Technology
No
Back Light Type
Not Available
Touchscreen (P-Cap)
No
Aspect Ratio
Not Available
Native Resolution
1366 x 768 (HD)
Refresh Rate
60 Hz
TruMotion Refresh Rate
Not Available
Brightness (Typ.)
240 nits
Brightness (Min.)
Not Available
Contrast Ratio
Not Available
Dynamic Contrast Ratio
Not Available
Viewing Angle (H x V)
Not Available
Response Time (G to G)
Not Available
AI Picture Pro
No
Dynamic Vivid
No
Lifetime
Not Available
HDR10 Pro
Yes
HDR HLG
Yes
Game Optimizer
Yes
¹ Some features may not be supported based on PCD versions.
