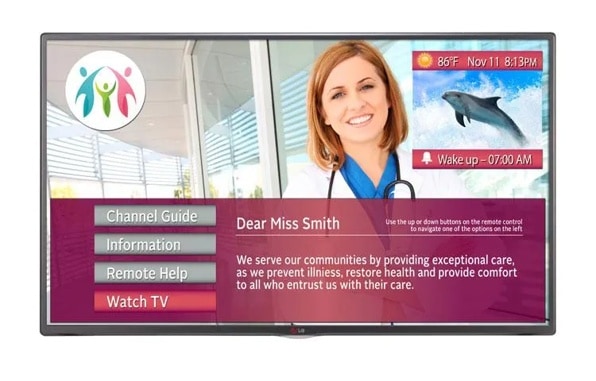

32" class (31.51" diagonal) with Integrated Pro:Idiom
DISCONTINUED
32LY560M
32" class (31.51" diagonal) with Integrated Pro:Idiom
Key Features
All Specs
- HOSPITAL SAFETY STANDARD COMPLIANT
- CONVENIENT FOR PATIENTS AND HOSPITAL STAFF
- EASY MANAGEMENT
Compare
Specs & Resources
CABINET
VESA™ Standard Mount Interface
200mm x 200mm
Color
Titan Metallic
Carton
32.1” x 20.1” x 6.0”
Bezel Width (on/off) (mm)
11.6mm/10.5mm
Depth (mm)
55.5mm
Without Stand
28.8” x 17.2” x 2.2”
Weight (Without Stand)
13.2 lbs
Weight (Carton)
15.9 lbs
Flame Retardant
Yes (Back Cover only)
PANEL
Frame Rate
60Hz
Panel Technology
Direct LED
Panel Size (Measured Diagonally)
32” Class (31.51”)
Native Resolution
1366 x 768 (HD)
Response Time
9ms
Viewing Angle(HxV)
178° x 178°
WARRANTY
WARRANTY
2-Year Limited Warranty (Parts/Labor)
AUDIO
Sound Mode
Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
Audio Output
10W + 10W
Sound Optimizer
Yes (3 Modes: Normal, Wall-Mount Type, Stand Type)
Sound System
2.0 ch
Virtual Surround
Yes
POWER
Power Source
AC 120V ~ 50/60H
Stand-by
< 0.3W
Watts (typical)
23.8W
Power Cord Length
1.87mm
INTERFACE (Rear)
RF In
1 Rear
AV In
1 (32", 42" Only)
Digital Audio Out
1 Rear (Optical)
Pillow Speaker Interface
1 Rear
RGB In (D-sub 15pin)
1 Rear
PC Audio Input
1 (Sharing with AV In)
HDMI In
1 Rear
LAN (RJ45)
1 Rear (Service Only)
MPI Port (RJ12)
1 Rear
External Speaker Out (3.5mm phone jack)
1 Rear (3.5mm phone jack)
PTC Configuration (phone jack type)
1 Rear
INTERFACE (Side)
HDMI In
1 Side
AV In
1 (22", 28" Only)
USB (2.0)
1 Side
SPECIAL FEATURES
USB Cloning
Yes
HDMI-CEC
Yes
HTNG-CEC
Yes
DRM
Yes (Pro:Idiom)
Welcome Screen
Yes
Lock Mode
Yes
Logical Channel Map
Yes
RF(1/2Tuner)
Yes, RF (1Tuner)
Pro:Centric Application
Yes
MHL
Yes
Self Diagnostic
Yes
Installer Menu
Yes
HCAP (GEM/FLASH/HTML)
Yes (GEM/Flash)
EzManager
Yes
Pro:Centric
Yes (Single Tuner)
Multi IR Code
Yes
IR Out
Yes (MPI only)
Kensington Lock
Yes
External Speaker Out
Yes
REQUIRED LISTINGS
Safety
cUL, UL, FCC, NOM
RoHS
Yes
Energy Star 6.1
Yes
VIDEO
Aspect Ratio
Yes (5 Modes: 16:9, Just scan, Set by program, 4:3, Zoom)
Picture Mode
Yes (6 Modes: Vivid, Standard, Eco, Cinema, Sport, Game)
Triple XD Engine
Yes
BROADCASTING SYSTEM
Analog
Yes (NTSC)
Digital
Yes (ATSC /QAM/VSB)
UPC
32LY560M
7 19192 91606 7
