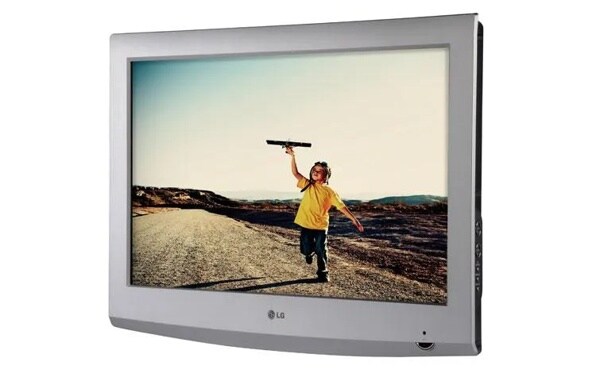

26" class (26.0" measured diagonally) Hospital Grade LCD Widescreen HDTV with HD-PPV Capability
DISCONTINUED
26LG3DDH
26" class (26.0" measured diagonally) Hospital Grade LCD Widescreen HDTV with HD-PPV Capability
Compare
Specs & Resources
CABINET
Unit Weight
20.95 lbs
VESA™ Standard Mount Interface
200mm x 100mm, M4 screws
Color
Silver
Invisible Speakers
Yes (Built-in)
Power/Standby Indicator
Illuminates red in standby mode/green in on mode
Shipping Dimensions (WxHxD)
32.4" x 21.5" x 8.1"
Shipping Weight
26.0 lbs
Stand
Not included
UL Hospital Grade Power Cord
Yes
Unit Dimensions (WxHxD)
26.1" x 17.6" x 4.1"
Kensington Security Slot
Yes
JACKS
RF in
1 (NTSC+ATSC tuner)
USB
1 (Cloning and Service)
Pillow Speaker
1 (6-pin)
MPI Slot
1 Slot (Standard Type )
IR In/out
1
HDMI
1 (Rear)
A/V In
2 (Rear/Side)
Pillow Speaker Codes
Yes (Zenith/RCA/Philips)
RS-232C (Service Only)
1 (Rear)
S-Video In
No
Earphone Jack
Yes (Side)
RGB In (DB15-RGB)
1 (Rear)
Component & R/L Audio In
1 (Rear)
Audio in (Phone Jack)
1 (Rear: PC)
MAIN SYSTEM
MPEG Decoder
MPEG2/MPEG4/H.264 Decoding
Maximum Computer Resolution (RGB)
1360 x 768
DISPLAY
Aspect Ratio
16:9
Response Time
6ms
Pixels (H×V×3)
3147264
Native Resolution
1366 x 768
Viewing Angle (Horizontal/Vertical)
178°/178°
Dynamic Contrast Ratio
12,000:1
Display Area
26” diagonal
Contrast Ratio
3,000:1
Color Depth
8bit (16.7M)
LCD Panel Type
26”
Lamp Life
50,000 hours (approx.)
SERVICE/LIMITED WARRANTY
Service/Limited Warranty
2 Years (Parts/Labor)
AUDIO
Clear Voice II
Yes
Dolby Digital® Decoder
Yes
EZ Sound
5 Modes (Standard, Music, Cinema, Sports, Game)
EZ SoundRite (Auto Volume Leveler)
Yes
Internal Speaker on/ off
Yes
Mono/Stereo/SAP
Yes
Total Audio Watts (RMS)
2 x 7W (14W)
# of Speaker
2
Bass/Treble/Balance
Yes
Surround System I
Infinite Sound
POWER
Dynamic/Static Power Savings
Yes
Power Source
110V 50/60Hz
Power Consumption (max.) with Power Saving Modes Disabled
80W
Power Standy-by Mode (max.)
1W
UPC CODE
26LG3DDH
7 19192 90157 5
OPTIONAL REMOTES
Patient Remote
124-213-08 (Bed 1/Bed 2)
Installer Remote
124-213-07 (Bed 1/Bed 2, TV menu & navigation buttons)
Clone Programmers
TLL-1100A
SPECIAL FEATURES
Channel Labeling
Yes
Closed Caption
Analog/Digital
Commercial Installation Menu
Yes (English only)
Discrete IR Codes
Yes
Favorite Channel
No
Flashback (Quick View)
Yes
Function Menu
Yes
Integrated Pro:Idiom
Yes
OSD Type (Menu System)
EZ Menu
On/Off Timer
Yes
Parental Control/V-Chip
Yes
Real Cinema
Yes
Remote
Not Included
Auto Off
Yes
Auto/Manual Clock
Yes
Sleep Timer
Yes
Trilingual Menus
Yes (English, French, Spanish)
USB Cloning
Yes
Last Source Power-on Recall
Yes
Mute
Yes
Auto/Manual Programming
Yes
Express Script
Yes
Power saving function
Backlight dimming control
TV Link Protocol
TVLink-Commercial (built in)
REQUIRED CERTIFICATIONS
UL Hospital Grade
Yes
CEC Compliant
Yes
RoHS Compliant
Yes
UL, C-UL, NOM
Yes
VIDEO
XD Engine
Yes
Aspect Ratio
5 Modes (16:9/Just Scan/Set By Program/4:3/Zoom)
Noise Reduction
Yes
Picture Control
Backlight/Contrast/Brightness/Sharp/Color/Tint/Advanced
3:2 Pull-Down (film mode)
Yes
ATSC with HD-PPV
Yes (Built-in)
ATSC/NTSC/QAM Clear Tuner
Yes (Built-in)
All Format Convertor
Yes (1080p/1080i/720p/480p/480i > 768p)
Black/Blue Stretcher
Yes
Color Temperature
Yes (Cool/Normal/Warm)
Comb Filter
Yes (3D Digital)
DCTI (Digital Color Transient Improver)
Yes
DLTI (Digital Luminance Transient Limiter)
Yes
Digital Progressive Scan
Yes
EZ Picture
6 Modes (Vivid/Standard/Natural/Cinema/Sport/Game)
Enhanced Video
Yes
Advanced Ghost Canceler
Yes
