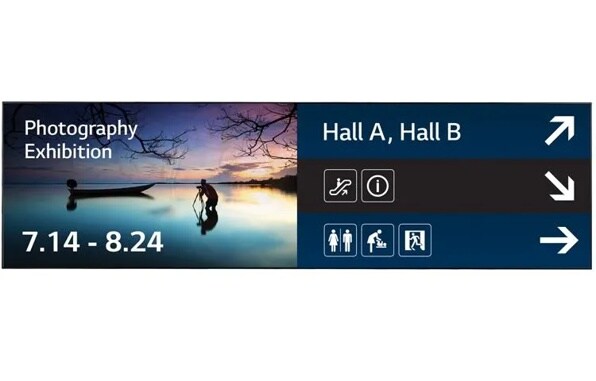

88” Class (87.80” Diagonal) Ultra-Stretch Digital Signage
DISCONTINUED
88BH7D
88” Class (87.80” Diagonal) Ultra-Stretch Digital Signage
Key Features
All Specs
- Ultra HD Resolution (3,840 x 1,080)
- 32:9 Extended Wide Format
- PBP with Four Divisions in Landscape or Portrait
- 32:9 Content Editing
- Multimedia Content Creation
- Lateral Tiling with Daisy Chain
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
89.5" x 28.2" x 8.3"
Monitor Dimension (W x H x D)
85.0" x 24.1" x 4.1" / 2,158.3 x 611.2 x 103.9 mm (with handle) 85.0" x 24.1" x 3.3" / 2,158.3 x 611.2 x 84.8 mm (without handle)
Bezel Color
Black
Weight (Head)
75.4 lbs
Bezel Width
4.4 mm (L/R), 5.9 mm (U/D)
VESA TM Standard Mount Interface
600mm x 400mm
Packed Weight
112.9 lbs (Pallet included)
OTHER
UPC
719192615632
CONNECTIVITY
Input
HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card
Output
DP, Analog Audio
External Control
RS232C In/Out, RJ45 In/Out, IR & Light Sensor, Pixel Sensor
ENVIRONMENTAL CONDITIONS
Operating Humidity Range
10 % to 80 %
Operating Temperature Range
0°C to 40°C / 32°F to 104°F
WARRANTY
Limited Warranty
3-Year Limited Warranty (Parts and Labor)
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign C
Content Management Software
SuperSign Premium
MEDIA PLAYER COMPATIBILITY
External Media Player Attatchable
Yes
OPS PC compatible (optional)
Yes
POWER
Power Consumption (Typ./Max)
400 W / 500 W
Power Type
Built-in Power
Power Supply
100-240 V~, 50/60 Hz
Power Consumption (Smart Energy Saving)
30% of typical
SPECIAL FEATURES
Yes
Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, 2/3/4PBP, Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready(Support Beacon function), 4K Up Scaling
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
PANEL
Surface Treatment
AGLR (Haze 3%)
Panel Technology
IPS
Aspect Ratio
32:9
Brightness
700 cd/m2 (Typ)
Native Resolution
3,840 x 1,080 (UHD)
Viewing Angle (H x V)
178°/178°
Orientation
Landscape & Portrait Mode
Color Depth
10bit(D), 1.07 Billion
Contrast Ratio
1,100:1 (Typ)
Response Time
8ms (G to G BW) typ.
Dynamic Contrast Ratio
500,000:1
Screen Size
88" (87.80" diagonal)
ACCESSORIES
Basic
Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload)
Optional
AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
