86” UHD Ultra Stretch Digital Signage with 58:9 aspect ratio, 500 nits Brightness, Built-in Quad Core SoC and webOS™
$4,400.00
TAA Compliant
86BH5F-M
86” UHD Ultra Stretch Digital Signage with 58:9 aspect ratio, 500 nits Brightness, Built-in Quad Core SoC and webOS™
$4,400.00
Key Features
All Specs
- IPS Display with wide viewing angle so customers can see from virtually anywhere
- Life time of 50,000 hrs. & can operate 24/7
- Built-in Wi-Fi
- Portrait or landscape, tile mode, 4PBP to create the best customer experience
- IP5X Durability Rating
- Compatible with LG SuperSign CMS and other LG software
Compare
3 Year Limited Warranty
Buy with confidence knowing your product is backed by a 3 year limited warranty.
Free Delivery
Enjoy free delivery on your business orders.
Free Returns
Shop with confidence. Free returns within 14 days of delivery.
Features and Specs

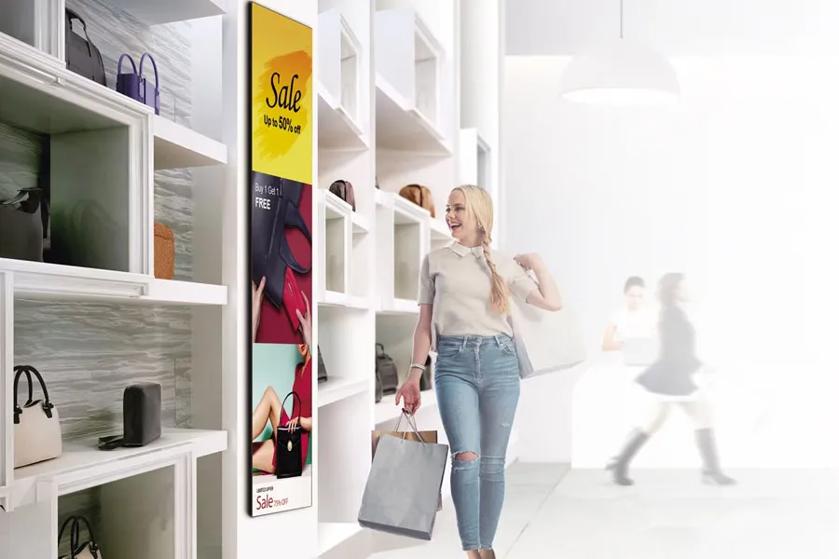

Ultra Stretch Signage
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format.
58:9 Extended Wide Format
Bring narrow, unused spaces to life with 86BH5F's extended wide format.

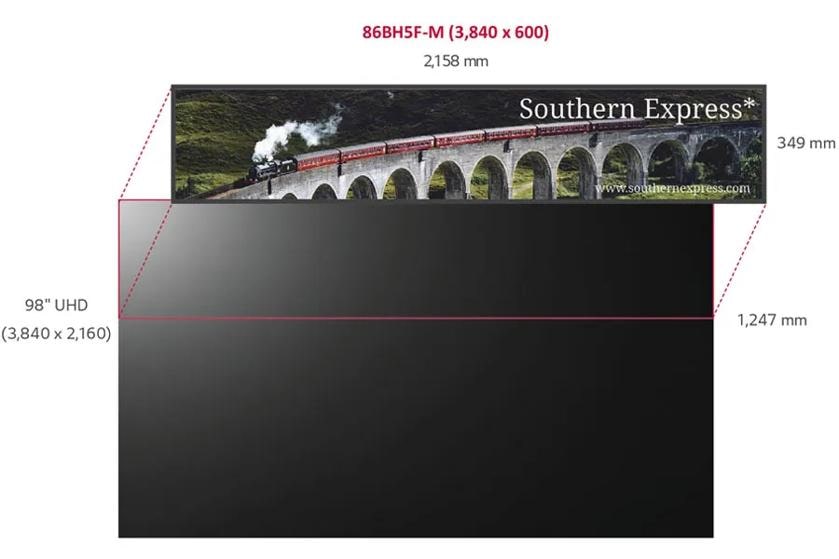

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

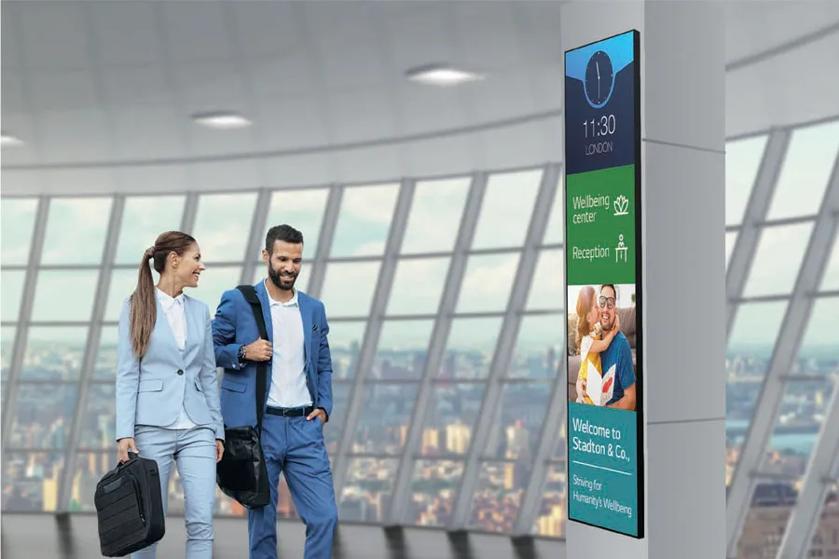

Multi Screen Mode with 4PBP
he Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

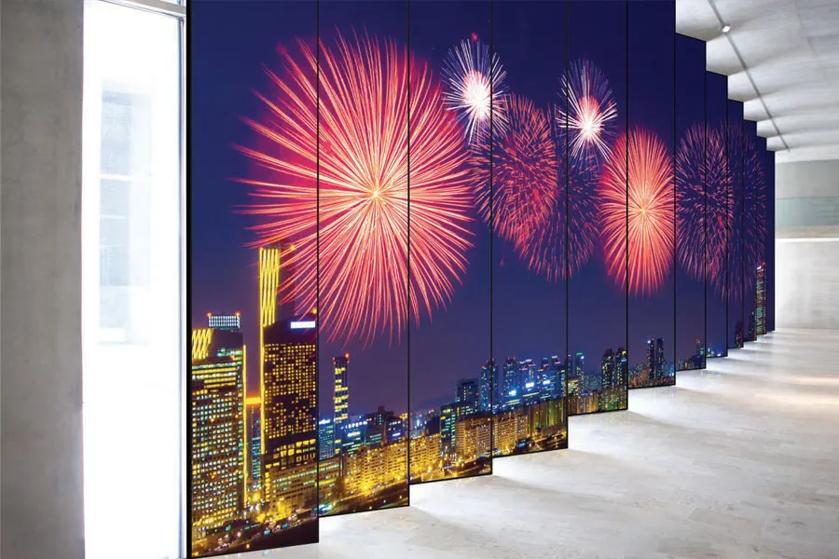

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player, while LG webOS platform enhances user convenience with intuitive GUI.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with Signage365Care
Easier and faster maintenance are available with our optional cloud service solution Signage365Care. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Software Features
Gapless Playback
No
Picture-by-Picture (PBP)
Yes (x4)
Control Manager
Yes
SI Server Setting
No
Setting Data Cloning
Yes
Status Mailing
Yes
Auto Set ID
Yes
Scan Inversion
No
Backlight Sync
No
ISM Method
Yes
Group Manager
Yes
Booting Logo Image
Yes
Network Ready
No
RS-232C Sync
Yes
W/B Setting by Grayscale
No
webRTC (Real Time Communication)
No
Video Tag
No
PM mode
Yes
Picture-in-Picture (PIP)
No
Local Network Sync
Yes
Screen Rotation
Yes
Smart Energy Saving
Yes
Tile Mode Setting
Yes (Max. 15 x 15)
External Input Rotation
Yes
No Signal Image
Yes
SNMP
Yes
Brightness Compensation
No
Local Contents Scheduling
Yes
HDMI-CEC
Yes
USB Plug & Play
Yes
OPS Compatibility
OPS Power Built-in
No
OPS Compatible
Yes
Hospitality Features
Pro:Idiom®
No
Wake on LAN
Yes
Electrical
Power Consumption (Max.)
240W
Power Supply
AC 100-240V~, 50/60 Hz
Power Consumption (Power Off)
0.5W
Power Type
Built-in Power
PoE Type
N/A
PoE Power Class
N/A
Power Consumption (Display Power Management - DPM)
0.5W
Power Consumption (Smart Energy Saving - 70%)
100W
BTU Heat Generation (Max.)
819 BTU
BTU Heat Generation (Typ.)
751 BTU
Power Consumption (Typ.)
220W
Mechanical
Bezel Color
Black
Bezel Width
Not Available
Bezel Width (On Bezel)
Not Available
Bezel Width (Off Bezel)
T: 5.9 mm, R/L: 4.4 mm, B: 5.9 mm
Tilt (Face Down)
No
Tilt (Face Up)
No
Weight
45.2 lbs / 20.5 kg
Weight Signage Box
N/A
Weight with Stand
No
Shipping Weight
84.2 lbs / 38.2 kg
Dimensions (W x H x D)
85.0 x 13.7 x 3.2 in / 2158.3 x 348.5 x 81.7 mm
Dimensions with Stand (W x H x D)
Not Available
Dimensions with Pemnut (W x H x D)
N/A
Dimensions Signage Box (W x H x D)
N/A
Shipping Dimensions (W x H x D)
90.2 x 23.6 x 9.0 in / 2,290 x 599 x 228 mm
Conformal Coating (Power Board)
Yes
Handle
Yes
VESA™ Standard Mount Interface
600 x 200 mm
Overlay Touch Compatibility
No
Smart Calibration
No
Power Protection
No
Direct Sunlight
No
Protective Glass
Thickness
No
Degree of Protection
No
Tempered / Chemical Strengthening
No
Anti-Reflective
No
Anti-Reflective Coating
No
Anti-Reflective Film
No
Infrared - Resistance (IR)
No
Shatter-Proof
No
Heat Dissipation
No
Heater
No
Noise Level
No
Audio/Sound
Built-in Speakers
No
Hardware Features
Local Key Operation
Yes
Built-in Microphone
No
Built-in Camera
No
Pixel Sensor
No
Temperature Sensor
Yes
Auto Brightness Sensor
Yes
Built-in Cooling Fan
No
Acceleration (Gyro) Sensor
No
Current Sensor
Yes
BLU Sensor
No
Power Indicator
No
Proximity Sensor
No
Humidity Sensor
No
Features
Crestron Certified Compatibility
Yes
Beacon
Yes
Play Via URL
No
Cisco Certified Compatibility
No
Failover
Yes
System
Operating System (OS)
webOS™ 4.0
Processor
No
Graphics
No
Storage
No
Internal Memory
8 GB (eMMC)
Touch Panel
Available Object Size for Touch
No
Response Time (PC Win10, Education Mode)
No
Touch Response Time (G to G)
N/A
Writing Height
No
Accuracy (Typ.)
No
Interface
No
Active Pen Interface
No
Multi Touch Point (Max.)
No
Protection Glass Transmission
No
Protective Glass Thickness
No
Operating System Support
No
Connectivity
HDMI In
Yes (x3) HDCP 2.2/1.4
IR In (3.5 mm)
Yes
IR In (3.5 mm)
Yes
DVI-D In
Yes (x1) HDCP 1.4
RGB In
No
Audio In (3.5 mm)
Yes (x1)
DisplayPort In
Yes (x1) HDCP 2.2/1.3
RS-232C In (3.5 mm 4-pin)
Yes (x1)
RS-232C In (D-sub 9-pin)
No
RJ45 (LAN) In
Yes (x1)
USB Type-A In
Yes (x2) USB 2.0
USB Type-C In
No
Power In (DC From External PWR Box)
No
Power Loop In
No
HDMI Out
No
DisplayPort Out
Yes (x1)
Audio Out (3.5 mm)
Yes (x1)
Touch USB
No
IR Out
No
RJ45 (LAN) Out
Yes (x1)
RS-232C Out (3.5 mm)
Yes (x1)
RS-232C Out (D-sub 9-pin)
No
Power Loop Out
No
External Speaker Out (3.5 mm)
No
Bluetooth
No
Daisy Chain
Yes (input HDMI, DVI-D, DP / Output DP)
Built-in Wi-Fi
Yes
Warranty & Other
Assembled In
South Korea
Warranty
3 Year Limited
Onscreen Display Languages
Arabic, Chinese (Original), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Europe), Russian, Simplified Chinese, Spanish, Swedish
Optional Accessories
OPS Kit (KT-OPSF)
UPC
1 95174 02795 0
Basic Accessories (included)
Remote Controller (including battery 2ea), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual
Environmental Conditions
Operation Humidity
10% to 80%
Operation Temperature (Portrait)
N/A
Operation Temperature
32°F to 104°F / 0°C to 40°C
Regulatory & Certifications
UL Certification
No
U.S. ePEAT (Environmental)
No
FCC (Regulatory)
EMC Class A
IP Rating (Solid / Liquid Ingress)
IP5X
TAA Compliance
Yes
CE Marking (Regulatory)
Yes
ISTA6 (Packaging)
No
ERP (Environmental)
No
Energy Star (Environmental)
No
Smart Features
Screen Share
No
LG Software Compatible
SuperSign™ CMS
No
SuperSign™ Media Editor
No
SuperSign™ Control+
Yes
SuperSign™ WB
Yes
SuperSign™ Cloud
No
Mobile CMS
Yes
ConnectedCare™
Yes
Panel
Screen Size (Inches)
86"
Panel Technology
IPS
Backlight Type
Direct
Aspect Ratio
58:9
Native Resolution
3840 x 600
Refresh Rate
60 Hz
Brightness (Typ.)
500 nits
Brightness (Max.)
Not Available
Brightness (Min.)
Not Available
Contrast Ratio
1100:1
Dynamic Contrast Ratio
500000:1
Color Gamut
NTSC 72%
Color Depth (Number of Colors)
10 bit, 1.07 Billion Colors
Viewing Angle (H x V)
178° x 178°
Response Time (G to G)
8 ms
Moving Picture Response Time
N/A
Surface Treatment (Haze)
10%
Surface Treatment (Anti Glare)
No
Surface Treatment (Hard Coating)
No
Reflectance (Typ.)
N/A
Operation Hours (Hours per Day / Days per Week)
24/7
Lifetime
Up to 50,000 Hrs
Orientation
Portrait / Landscape
Transparency
No
QWP (Quarter Wave Plate)
No
