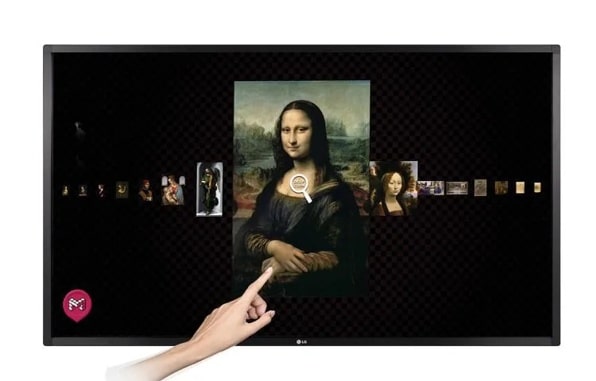

84" Class (84.04" diagonal) ULTRA HD MULTI-TOUCH SIGNAGE
DISCONTINUED
84WT70PS-B
84" Class (84.04" diagonal) ULTRA HD MULTI-TOUCH SIGNAGE
Key Features
All Specs
- IPS Panel
- 10-Point Multi Touch
- UHD Support
- 300 nit Display - 16/7 Operation
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Packed Weight
118kg (260.1lb)
Handle
Yes
Bezel Width
34 mm (1.3inch)
Color
Matte Black
VESA Standard Mount Interface
600 x 400mm, M8
Carton Dimensions
2050 x 1261 x 330mm (80.7 x 49.6 x 12.9inch)
Monitor Dimensions (head only)
1951 x 1137 x 112mm (76.8 x 44.7 x 4.4inch)
Weight (head only)
102.6 kg (226.1lb)
AUDIO
Sound Mode
Standard, Music, Cinema, Sport, Game, Vivid, User Setting
Audio Power
20W(10W x 2)
Clear Voice II
Yes
Auto Volume
No
Balance
Yes
Speaker On/Off
Yes
CONNECTIVITY-OUTPUT
Analog
RGB (1)
Digital
DVI-D (1)
External Control
Main : RS232C(1), IR(1)
Audio
Yes(1), Line out(1)
SOFTWARE COMPATIBILITY
Touch Screen Writing S/W
Yes
ENVIRONMENT CONDITIONS
Operation Humidity
10% ~ 80%
Operation Temp.
0°C ~ 40°C
SPECIAL FEATURES
Smart Energy Saving
Yes
Key Lock
Yes
ISM Method
Normal, Color Wash
DPM Select
Yes
Energy Saving
Yes (Off, Minimum, Medium, Maximum, Screen Off)
Temperature Sensor
Yes
Auto Power/Source Memory
Yes
Power Indicatior On/Off
Yes
Auto Brightness Sensor
Yes
CONNECTIVITY-INPUT
External Control
RS232C(1), RJ45(1), IR(1)
Analog
RGB(1), Composite(1)
USB
USB 2.0 x 2
Digital
HDMI (2), DVI-D (1), Display Port (1) with HDCP for all Inputs
Audio
RGB / DVI-D / AV
Touch
Multi touch point
Max 10 Point
Protection Glass Thickness
5T (Anti-Fog, Anti-Glare)
Protection Glass Transmission
85%
Interface
USB 2.0
Touch Resolution
1,840 x 1,050
Accuracy
1mm
Scan Time
10 ms
Operating System Support
Windows 7 (10 Point)
Available object size for touch
Ø6 mm
Touch type
IR(Infrared Rays) Spread
Power
5W
WARRANTY
Warranty
3-Year Limited Warranty (Parts/Labor/Backlight)
MEDIA PLAYER COMPATIBILITY
External Media Player Attachable
No
Slot PC compatible (optional)
Yes (MP500/MP700)
UPC
UPC
7 19192 19371 0
POWER
Power Supply
100 -240V, 50/60Hz
Power Type
Built-in Power
Power Consumption-DPM
1.5W
Power Consumption-Power Off
0.5W
Power Consumption-Typ
350W
Power Consumption-Smart Energy Saving
200W
STANDARD CERTIFICATION
Safety
UL, cUL, CB scheme, TUV
Erp/Energy Star
Yes/No
EMC
FCC Class "A", VCCI, C-tick, CE, KCC
PANEL
Contrast Ratio
1,400:1
Response Time
12 ms (G to G)
Brightness
350 cd/m^2 Typ. (300 cd/m^2 with Protection Glass)
Screen Size
84" (84.04" diagonal)
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Dynamic CR
500,000 : 1
Viewing Angle (H x V)
178 x 178
Surface Treatment
Anti-glare Haze 10%
Orientation
Landscape
Life time
50,000 Hrs (Typ.)
ACCESSORIES
Accessory
D-Sub Cable, Power Cord, Remote Controller(includebattery 2ea), CD(Manual/Touch Screen SW/ESG), Eye Bolt(2ea), USB Cable, Pen Tray, Cable Tie(2ea), Screws(6ea, to fix Eye-Bolt Bracket & Pentray)
Optional Accessory-Speaker
SP-2000, SP-2100
Optional Accessory-Wall Mounting Bracket
LSW630 : 660mm x 494mm x 27mm : 7.9Kg
Optional Accessory-Media Player
MP700/MP500
