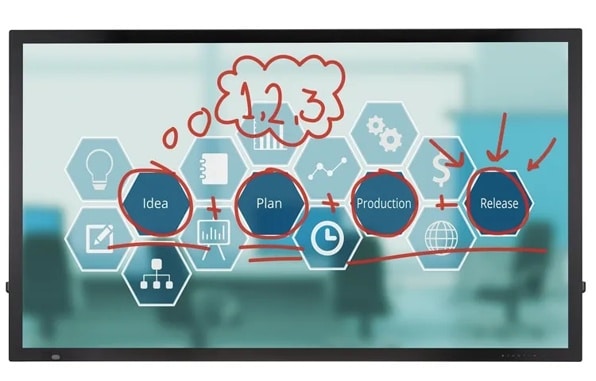

75” Ultra HD Interactive Digital Board
DISCONTINUED
75TC3D
75” Ultra HD Interactive Digital Board
Key Features
All Specs
- Floating Tool Bar
- SoC and LG webOS
- IDB App for Efficient Collaboration
- LG UHD Technology
- LG IPS Panel with Wide Viewing Angles and True Color
- Auto Signal/Touch Switching
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
1,870 x 1,264 x 285 mm (with pallet)
Monitor Dimension (W x H x D)
1,732.8 x 1011.1 x 69.7 mm (w/o Handle)
Weight (Head)
74.5 kg
Bezel Width
41.6 mm(T/L/R/B)
VESA TM Standard Mount Interface
600 x 400m
Packed Weight
94 kg
AUDIO
Built-in Speaker
20 W (10W×2)
CONNECTIVITY
Input
HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
Output
Touch USB 2.0 (2)
External Control
RS232C in/out, RJ45 in
ENVIRONMENTAL CONDITIONS
Operating Humidity Range
10% ~ 80%
Operating Temperature Range
32 °F to 104 °F
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign Premium
SPECIAL FEATURES
Yes
Temperature Sensor, ISM method, DPM Select, Brightness Control, PM Mode, Wake on LAN, Energy Saving, File Play with USB, 2 PIP/PBP, Built-in Wi-Fi (802.11n Combo), USB Cloning, Failover, No Signal Image
TOUCH
Accuracy
2 mm
Touch Type
P-Cap(Ag Metal Mesh)
Protection Glass Thickness
4T (Anti-Glare)
Available object size for touch
more than Ø 6 mm
Multi touch point
Max. 40 Points
Interface
USB 2.0
KEY FEATURES
Yes
webOS 3.0+, IDB app, Crestron Connected® Certified, Mirroring, Soft AP, Beacon, Reader Mode, Auto Brightness Sensor, Internal Memory (64GB, System 8GB)
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
POWER
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Power Consumption-DPM
≤ 0.5 W
Power Consumption-Typ
≤ 240 W
Power Consumption (Smart Energy Saving)
≤ 170 W
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
PANEL
Brightness*
500 cd/m2
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
3840 x 2160 (UHD)
Viewing Angle (H x V)
178°/178°
Screen Size
75”
ACCESSORIES
Basic
Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea, 86TR3D only), Touch Pen Tip (1ea, TC3D only)
Optional
OPS Kit (KT-OPSA), LSW640A/B (Wall Mount)
All image simulations are for illustration purposes only.
