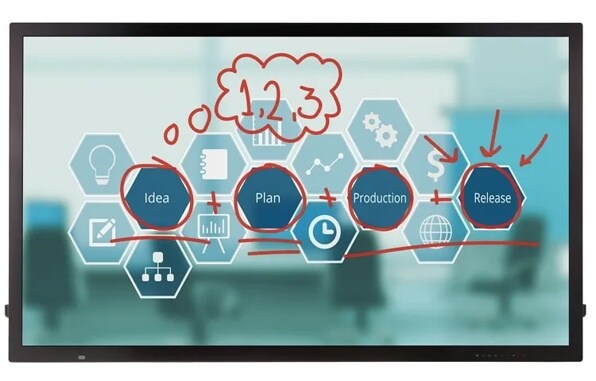

65" FHD Interactive Digital Board
DISCONTINUED
65TC3D
65" FHD Interactive Digital Board
Key Features
All Specs
- Floating Tool Bar
- SoC and LG webOS
- IDB App for Efficient Collaboration
- LG UHD Technology
- LG IPS Panel with Wide Viewing Angles and True Color
- Auto Signal/Touch Switching
Compare
Specs & Resources
PHYSICAL SPECIFICATIONS
Carton Dimensions (W x H x D)
1,650 x 1,035 x 228 mm
Monitor Dimension (W x H x D)
1,530.8 x 883.8 x 71.7 mm (w/o Handle)
Weight (Head)
51kg
Bezel Width
36.1mm(T/L/R), 42.2mm(B)
VESA TM Standard Mount Interface
300 x 300 mm
Packed Weight
59kg
AUDIO
Built-in Speaker
20 W (10W×2)
CONNECTIVITY
Input
HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0
Output
Touch USB 2.0 (2)
External Control
RS232C in/out, RJ45 in
ENVIRONMENTAL CONDITIONS
Operating Humidity Range
10 % to 80 %
Operating Temperature Range
32 °F to 104 °F
SOFTWARE COMPATIBILITY
Content Management Software
SuperSign Premium
SPECIAL FEATURES
Yes
Temperature Sensor, ISM method, DPM Select, Brightness Control, PM Mode, Wake on LAN, Energy Saving, File Play with USB, 2 PIP/PBP, Built-in Wi-Fi (802.11n Combo), USB Cloning, Failover, No Signal Image
TOUCH
Accuracy
2 mm
Touch Type
P-Cap(Ag Metal Mesh)
Protection Glass Thickness
3.2T (Anti-Glare)
Available object size for touch
more than Ø 6 mm
Multi touch point
Max. 40 Points
Interface
USB 2.0
KEY FEATURES
Yes
webOS 3.0+, IDB app, Crestron Connected® Certified, Mirroring, Soft AP, Beacon, Reader Mode, Auto Brightness Sensor, Internal Memory (64GB, System 8GB)
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible
Yes
POWER
Power Type
Built-In Power
Power Supply
100-240V~, 50/60Hz
Power Consumption-DPM
≤ 0.5 W
Power Consumption-Typ
≤ 120 W
Power Consumption (Smart Energy Saving)
≤ 85 W
STANDARD CERTIFICATIONS
Safety
UL / cUL / CB / TUV / KC
EMC
FCC Class "A" / CE / KCC
PANEL
Brightness*
450 cd/m2
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Viewing Angle (H x V)
178°/178°
Screen Size
65"
ACCESSORIES
Basic
Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea, 86TR3D only), Touch Pen Tip (1ea, TC3D only)
Optional
OPS Kit (KT-OPSA), LSW640A/B (Wall Mount)
