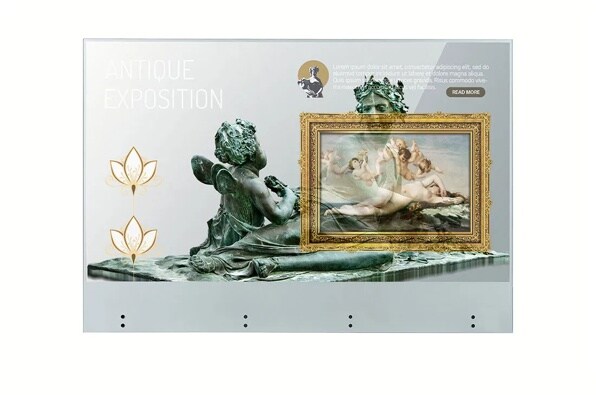

55” EW5TF-A Series Transparent OLED PCAP Touch Screen Digital Signage with Tempered Front Glass
DISCONTINUED
55EW5TF-A
55” EW5TF-A Series Transparent OLED PCAP Touch Screen Digital Signage with Tempered Front Glass
Key Features
All Specs
- Brightness (Typ.): 400 nits (APL 25%, without Glass)
- Transparency (Typ.): 33% (Set)
- Bezel: 7.9mm (T/B/L), 144.5mm (B)
- Interface: HDMI / DP / USB 2.0 (2) / Touch USB / RS232C / RJ45 / IR / Audio
- PCAP Touch, Tempered Front Glass (3T)
Compare
Specs & Resources
KEY FEATURES
*
Network based control.
**
Compatibility may differ by equipment.
Key Features
Internal Memory (16GB), Temperature Sensor, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Screen Rotation, Setting Data Cloning, SNMP, ISM Method (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, Crestron Connected®*, DPM, PM Mode, Wake on LAN, HDMI-CEC**, SI Server Setting
CONNECTIVITY
Input
HDMI, DP, USB 2.0 Type A, USB 2.0 Type A (Touch Control Board only)
Output
DP, Audio, USB 2.0 Type B (Touch USB)
External Control
RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)
CERTIFICATION
EMC
FCC Class "A"/CE/KC
ErP/Energy Star
Yes (EU Only)/No
Safety
CB, NRTL
SOFTWARE COMPATIBILITY
Control and Monitoring Software
SuperSign Control/Control+
Content Management Software
SuperSign CMS
Signage365Care
Yes
***
SuperSign CMS, Control+ and Signage365Care are optional paid software and services. Signage365Care implementation may very by region.
ENVIRONMENT CONDITIONS
Operation Temperature Range
32° F to 104° F/0° C to 40° C
Operation Humidity Range
10% to 80%
MECHANICAL SPECIFICATION
Bezel Width
7.9/7.9/7.9/144.5 mm (T/R/L/B)
Packed Weight
50.9 lbs/23.1kg
Weight (Head)
32.2 lbs/14.6kg (Head), 7.5 lbs/3.4kg (Signage Box)
Bezel Color
Matt Silver
Carton Dimensions (W x H x D)
53" x 32.7" x 8.4"/1,345 x 945 x 207 mm
Monitor Dimensions (W x H x D)
48.2" x 32.8" x 0.3"/1,225.5 x 832.9 x 7.0 mm (Head), 30.8" x 9.4" x 1.4"/782.8 x 238.4 x 34.7 mm (Signage Box)
Protection Glass
Depth 3.0 mm , Tempered/Chemical Strengthening, Anti-Reflective, Shatter-Proof
POWER
Power Type
Built-In Power
Power Supply
100-240 Vac, 50/60 Hz
Power Consumption (Typ. / Max.)
250W/280W
PANEL
Lifetime (Typ.)
30,000 Hrs
Panel Technology
Transparent OLED Touchscreen
Aspect Ratio
16:9
Native Resolution
1,920 x 1,080 (FHD)
Color Gamut
120% BT709
Viewing Angle (H x V)
178 x 178
Color Depth
10 bit (R), 1.07 Billion Colors
Contrast Ratio
150,000 : 1
Response Time
1ms (G to G)
Screen Size
55"
Refresh Rate
120Hz
Operation Hours (Hours / Day)
18/7 (Moving Content Only)
Brightness (Typ.)
400/150 nits (APL 25%/100%, Without Glass)
Portrait / Landscape
Yes/Yes
Transparency (Typ.)
33% (Set)
ACCESSORIES
Basic
Remote Controller, Power Cord, IR Receiver, Phone to RS232C Gender, FFC Cables (1,600mm x 4ea), HDMI Cable (3m), Micro to A Type USB Cable (1.8m), A to B Type USB Cable, Tapes, Screws, Shield Cover Assy', Rubber Dampers, Touch Cable Holders, QSG, Regulation Book
TOUCH
Touch Type
P-Cap
Multi touch point
Max 10 Points
Operating System Support
Windows
