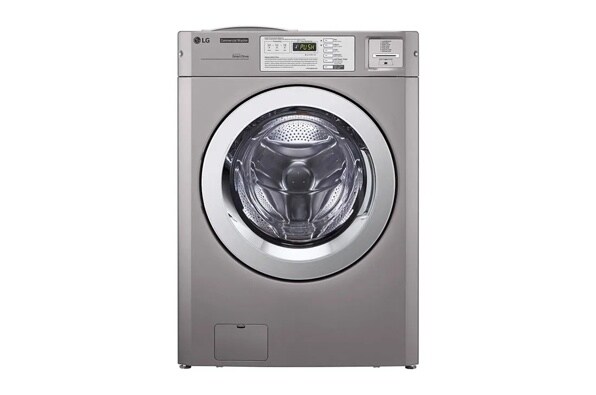

5.2 cu.ft Large Capacity Frontload Washer
TCWM2013QS3
5.2 cu.ft Large Capacity Frontload Washer
Key Features
All Specs
- Large Capacity
- Inverter Direct Drive™
- Multi Heat Treatment
- Premium Powder Coating
- Atomizing & Twin Spray
- Auto Dosing System
Compare
Specs & Resources
SYSTEM & CONTROL
Drain System
Gravity Drain/Pump Drain* (NA Only)
Auto Dosing Interface
Yes
Inverter Direct Drive Motor
Yes
Heating Element - W
120V 1,000 (Only for Tub Clean), 220V 2,000 (Only for Tub Clean)
Damper
4 Friction Dampers
Inlet Valve
AC
Emergency Stop Button
Yes (OPL Only)
*CONSUMPTION INDEXｹ?
Water - gal (l)
17.7 (67.0)
Electricity - kWh/cycle
0.084
NOISE & CYCLE TIME
Program Duration in Minutes (Default) - min
37
Noise Level (Sound Power) - dB
Lower than 62
RATING
Electric Ratings - V/Hz/A
120/60/5, 220~240/50/5, 220/60/5
CYLINDER
Diameter - in. (mm)
24 (610.8)
Depth - in. (mm)
20.4 (518.1)
Drum Volume - cu.ft (l)
5.2 (147)
PROGRAMS
Program List
Hot, Warm, Cold, Delicates, Add Super Wash (Card & Coin)/20 Custom PGM (OPL)
SPEED
Extract (High Speed) - Max RPM
980
Wash - RPM
46
G-force - G
327
EXTERNAL FINISH
Drum
Stainless Steel
DIMENSIONS
With Door Open - in. (mm)
53 (1,370)
Carton (WxHxD) - in
31 x 44.3 x 33.3
Carton (WxHxD) - mm
788 x 1,125 x 846
Weight (Product/Carton) - lb (kg)
221.8 (100.6)/248 (112.5)
Product (WxHxD) - mm
737 x 1,036 x 814
Product (WxHxD) - in
29 x 40.8 x 32
CIRCUIT PROTECTION
PCB Fuse - Main Control Board - amps
12 (220~240 V)
Main PCB MICOM
T370
PCB Fuse- Filter Assembly - amps
15
