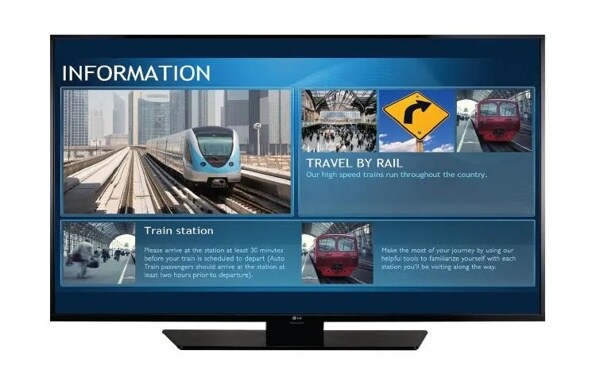

65" Class (64.8"/1646mm diagonal) LX540S TV Tuner Built-In Digital Signage
DISCONTINUED
65LX540S
65" Class (64.8"/1646mm diagonal) LX540S TV Tuner Built-In Digital Signage
Key Features
All Specs
- INSTANT MESSAGE DELIVERY
- ALL-IN-ONE DIGITAL SIGNAGE SOLUTION
- SIMPLE CONNECTION
- EMBEDDED SUPERSIGN W-LITE SOFTWARE
Compare
Specs & Resources
INTERFACE(SIDE)
USB
2 (2.0)
HDMI In
1
BROADCASTING SYSTEM
Digital
ATSC, Clear QAM/VSB
Analog
NTSC
AUDIO
Sound Mode
6 modes (16:9, Just Scan, Set by Program, 4:3, Zoom, Cinema Zoom1)
Audio Output
10W + 10W
Clear Voice
Yes
Sound System
2.0 ch
Sound Optimizer
3 modes (Normal, Wall-Mount Type, Stand Type)
OTHER
UPC
7 19192 19701 5
CERTIFICATIONS
Safety
UL, FCC
Environment
RoHS, cUL, NOM
Energy Star® 7.0
Yes
VIDEO
Triple XD Engine
Yes
Resolution
1920 x 1080 (FHD)
Aspect Ratio
6 modes (16:9, Just Scan, Set by Program, 4:3, Zoom, Cinema Zoom1)
SPECIAL FEATURES
SuperSign Lite (3.0)
Yes
Audio Codec
mp3, AAC, M4A, OGG, WMA, WMA 10 Pro
USB Cloning
Yes
RTC (Real Time Clock)
Yes
IR Out
RS-232C
RJP Interface
RS232C, HDMI CEC
Remote Diagnosis/Self Diagnosis
USB
Multi IR Code
Yes
Lock Mode
Yes
HDMI-CEC
Yes (without ARC)
RJP Compatibility
Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
Smart Energy Saving
Yes
Wi-Fi
Wi-Fi Dongle Ready
jpeg, jpg, jpe, BMP, PNG
Public Display Mode
Yes
Moving Picture Playback (SD/HD/Plus HD)
asf, wmv, 3gp, 3gp2, divx, avi, mp4, m4v, mov, mkv, ts, trp, tp, mts, m2ts, vob, mpg, mpeg, mpe
CABINET
Bezel Width On (L/R, U, B) (mm)
16.1, 15.1, 21.8
Bezel Width (L/R, U, B) : off bezel based (mm)
13.6, 12.6, 19.3
Depth
39mm
Weight
75.0 lbs
VESA™ Mount
300mm x 300mm
W x H x D (w/Stand)
57.5”x35.4”x11.6”
Carton Weight
90.4 lbs
W x H x D (w/o Stand)
57.5”x33.4”x1.5”
Carton (W x H x D)
60.9” x 38.2” x 6.3”
OPTIONAL ACCESSORIES
AN-WF500 (Wi-Fi Dongle)
Yes
WARRANTY
Limited Warranty
2-Year Limited Warranty Parts/Labor
POWER
Stand-by
0.5W↓
Typical
59.9W
Voltage
100 ~ 240V, 50/60Hz
PANEL
Backlight Type
LED (Edge)
Panel Technology
IPS
Panel Size
65" Class (64.8"/1646mm diagonal)
Brightness
350cd/m2
Contrast Ratio
1400:1
Response Time
8ms (G to G)
Frame Rate
240Hz
Dynamic Contrast Ratio
1,000,000 : 1
ACCESSORIES
Cable
Power Cord
Manual/ESG
Simple Book
INTERFACE(REAR)
HDMI In
1
External Speaker Out
1 (3.5mm Phone Jack)
Component In
1 (Y, Pb,Pr) + Audio(L/R)
RF In
1
LAN Port
1
Digital Audio Out (Coaxial / Optical)
1 (Optical)
RS-232C (D-Sub 9pin)
1
AV In
1 (Sharing with Component in)
PC Audio Input
1 (Sharing with Component in)
RGB In
1
